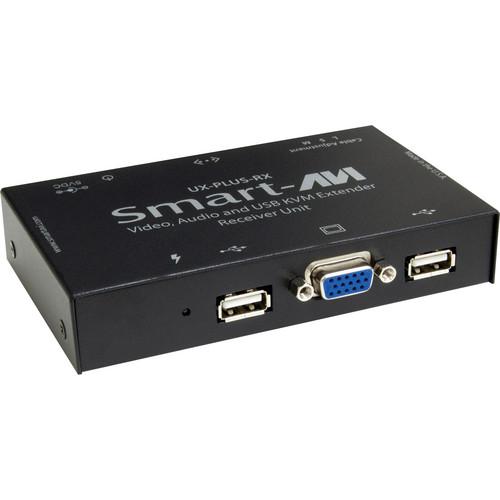

User Manual for Smart-AVI UX-Plus Receiver Click to enlarge the picture
Contents of the user manual for the Smart-AVI UX-Plus Receiver
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI UX-Plus Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The Smart-AVI UX-Plus Receiver outputs by VGA and USB signals it receives over CAT5 from a separately-sold UX-Plus transmitter.
It has one RJ45 input and one VGA and two USB outputs. It outputs video by VGA and can connect by USB to a keyboard and to a mouse.
The UX-Plus supports resolutions up to 1920 x 1200 WUXGA. It features plug-and-play functionality and is compatible with all operating systems. It is compliant with USB 1.1 specifications for keyboard and mouse connections. And it is equipped with built-in skew compensation that adjusts and syncs up the signals of the CAT5 pairs so to prevent transmission delays. - Outputs by VGA and USB signals it receives by CAT5.
- Equipped with 2 USB outputs to connect to interface devices.
- Plug-and-play capable and compatible with all operating systems.
- Features built-in skew compensation that syncs up twisted pair signals.
- Supports resolutions up to 1920 x 1200 WUXGA and USB 1.1 specifications.
UPC: 813280023801 In the Box Smart-AVI UX-Plus Receiver External Power Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI UX-Plus Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI UX-RXPLUS Specs | | | Ports | Receiver:
1 x HD15 VGA (Output)
2 x USB Type-A USB 1.1 (Output)
1 x RJ45 Ethernet (Input) | | Supported Resolutions | 1920 x 1200 | | Maximum Transmission Distance | 500' / 152 m | | Transmission Method | CAT5 Cable | | Supported Video Formats | CVBS, RGBHV, RGsB, Y/C, YUV | | | | DC Input Power | 5 VDC at 2 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 0 to 95% | | | | Certifications | CE, RoHS, UL, as per Manufacturer | | Dimensions | 5.0 x 1.0 x 3.0" / 12.7 x 2.5 x 7.6 cm | | Weight | 1.0 lb / 453.6 g | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.7 x 5.4 x 4.3" |
