User Manual for Smart-AVI UX-Plus Transmitter Click to enlarge the picture
Contents of the user manual for the Smart-AVI UX-Plus Transmitter
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI UX-Plus Transmitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

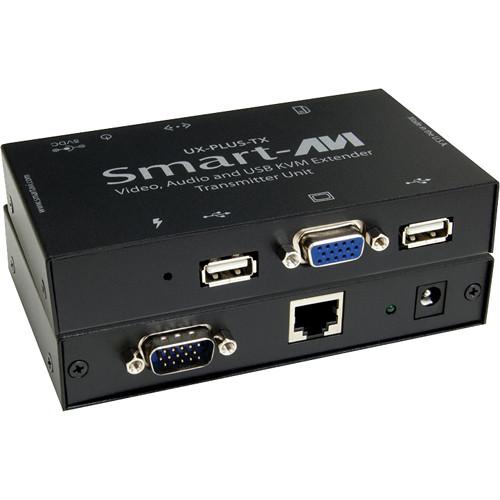

Product description The Smart-AVI UX-Plus Transmitter connects to a computer, a monitor, a keyboard and a mouse, and extends a VGA video signal along with a USB signal by up to 500 feet over a single CAT5 cable. The USB transmission enables USB functionality in a separately-sold UX-Plus receiver that the transmitter connects to. (The receiver has two USB outputs for connecting to a keyboard and a mouse.)
The transmitter has one VGA input, one VGA output, and two USB outputs. Connection to a computer is made by the VGA input via a breakout cable that splits into VGA/USB. The cable is not included with the transmitter. The VGA output is for connecting to a monitor, and the USB outputs are for connecting to a keyboard and a mouse. The outputs are for connecting to local devices only.
The UX-Plus supports resolutions up to 1920 x 1200 WUXGA. It features plug-and-play functionality and is compatible with all operating systems. And it is compliant with USB 1.1 specifications for keyboard and mouse connections. - Extends a VGA signal and a USB signal up to 500 ft over CAT5.
- Connects to a computer by a breakout cable that splits into VGA/USB.
- Connects to a monitor, a keyboard, and a mouse by VGA and USB outputs.
- Features plug-and-play functionality and is compatible with all operating systems.
- Supports resolutions up to 1920 x 1200 WUXGA. Compliant with USB 1.1 specifications.
UPC: 813280023849 In the Box Smart-AVI UX-Plus Transmitter External Power Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI UX-Plus Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI UX-TXPLUS Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x USB Type-A USB 1.1 (Input)
1 x HD15 VGA (Output)
2 x USB Type-A USB 1.1 (Output)
1 x RJ45 Ethernet (Output) | | Supported Resolutions | 1920 x 1200 | | Maximum Transmission Distance | 500' / 152 m | | Transmission Method | CAT5 Cable | | Supported Video Formats | CVBS, RGBHV, RGsB, Y/C, YUV | | | | DC Input Power | 5 VDC at 2 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 0 to 95% | | | | Certifications | CE, RoHS, UL, as per Manufacturer | | Dimensions | 5.0 x 1.0 x 3.0" / 12.7 x 2.5 x 7.6 cm | | Weight | 1.0 lb / 453.6 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.8 x 5.4 x 4.4" |
