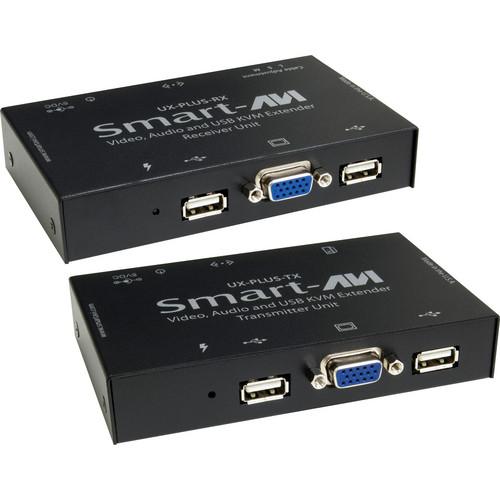

Product description The Smart-AVI UX-Plus Transmitter and Receiver Extender System connects to a computer, a monitor, a keyboard and a mouse on the transmitter end, and extends a VGA video signal along with a USB signal by up to 500 feet over a single CAT5 cable. The USB transmission enables USB functionality in the receiver. And the receiver outputs also by VGA and USB.

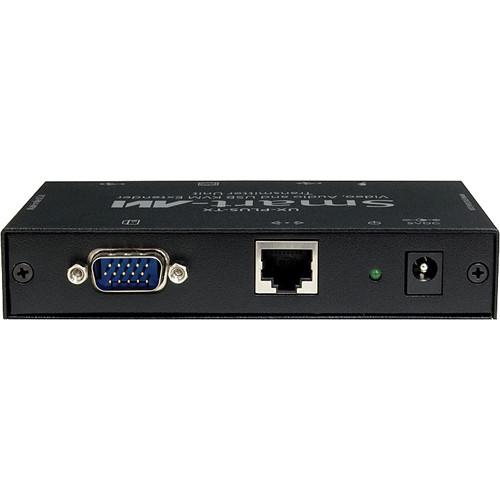

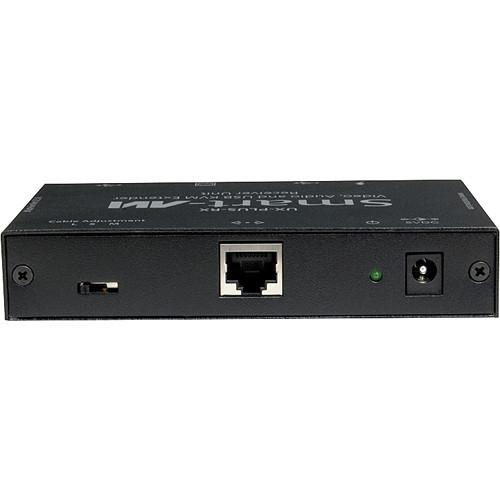

The transmitter has one VGA input, one VGA output, two USB outputs, and one RJ45 output. Connection to a computer is made by the VGA input via a breakout cable that splits into VGA/USB. The cable is not included with the transmitter. The VGA output is for connecting to a monitor, and the USB outputs are for connecting to a keyboard and a mouse. The receiver has one RJ45 input, and one VGA and two USB outputs. It outputs video by VGA and can connect by USB to a keyboard and to a mouse.
The system supports resolutions up to 1920 x 1200 WUXGA. It features plug-and-play functionality and is compatible with all operating systems. It is compliant with USB 1.1 specifications for keyboard and mouse connections. And it is equipped with built-in skew compensation that adjusts and syncs up the signals of the CAT5 pairs so to prevent transmission delays. - Extends a VGA signal and a USB signal up to 500 ft over CAT5.
- Connects to a computer by a breakout cable that splits into VGA/USB.
- Hooks up to monitors, to keyboards, and to mice by VGA/USB connections.
- Features plug-and-play functionality and is compatible with all operating systems.
- Equipped with built-in skew compensation that syncs twisted pairs and prevents delays.
- Supports resolutions up to 1920 x 1200 WUXGA and is compliant with USB 1.1 specifications.
UPC: 813280017039 In the Box Smart-AVI UX-Plus Transmitter and Receiver Extender System 2 x External Power Adapter 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI UX-Plus Transmitter and Receiver Extender System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI UX-PLUSS Specs | | | Ports | Transmitter:
1 x HD15 Male (Input)
2 x USB Type-A USB 1.1 (Input)
1 x HD15 VGA (Output)
2 x USB Type-A USB 1.1 (Output)
1 x RJ45 Ethernet (Output)
Receiver:
1 x RJ45 (Input)
1 x HD15 VGA
2 x USB Type-A USB 1.1 (Output) | | Supported Resolutions | 1920 x 1200 | | Maximum Transmission Distance | 500' / 152 m | | Transmission Method | CAT5 Cable | | Supported Video Formats | CVBS, RGBHV, RGsB, Y/C, YUV | | | | DC Input Power | 5 VDC at 2 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 0 to 95% | | | | Certifications | CE, RoHS, UL, as per Manufacturer | | Dimensions | 5.0 x 1.0 x 3.0" / 12.7 x 2.5 x 7.6 cm (Transmitter)
5.0 x 1.0 x 3.0" / 12.7 x 2.5 x 7.6 cm (Receiver) | | Weight | 1.0 lb / 0.5 kg (Transmitter)
1.0 lb / 0.5 kg (Receiver) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 7.8 x 5.3 x 4.5" |
