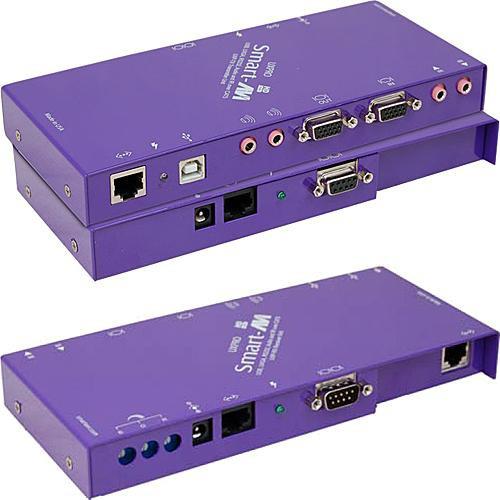

Product description The UXPRO USB 1.1, VGA, Stereo Audio, RS-232, and IR Extender from Smart-AVI is a multifunction extender kit. It allows you to extend USB 1.1, Stereo Audio, VGA, RS-232, and IR signals using standard CAT 5/CAT 6 Ethernet cable. It supports USB transfer rates of 1.5Mbps and 12Mbps, VGA resolution of up to 1900 x 1200, and can be used over distances of up to 275' (80 m). - USB 1.1 data rate support for 1.5Mbps and 12Mbps devices
- Supports VGA resolutions of up to 1900 x 1200
- Support for 720p, 1080i, and 1080p video
- Transmitter features pass-through outputs for local display, audio, and IR control
- Receiver unit features 4-port USB hub
- Standard RJ-45 ports for twisted pair CAT 5 or CAT 6 cabling
- Includes external power supply
UPC: 813280017015 In the Box Smart-AVI UXPRO USB 1.1, VGA, Stereo Audio, RS-232, and IR Extender 2 x Power Adapters 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI UXPRO USB 1.1, VGA, Stereo Audio, RS-232, and IR Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI UX-PROS Specs | | | Ports | Transmitter:
1 x 3.5 mm Audio (Output)
1 x HD15 VGA (Output)
2 x RJ45 Ethernet (Output)
1 x USB Type-B USB 1.1 (Input)
1 x HD15 VGA (Input)
1 x 3.5 mm Audio (Input)
1 x DB9 Serial (Input)
2 x 3.5 mm IR (Input)
Receiver:
4 x USB Type-A USB 1.1 (Output)
2 x HD15 VGA (Output)
1 x DB9 Serial (Output)
1 x 3.5 mm Audio (Output)
2 x 3.5 mm IR (Output)
1 x 3.5 mm Audio (Input) | | Maximum Transmission Distance | 275' / 83.8 m | | | | DC Input Power | 5 VDC at 0.1 A | | AC Input Power | 120 VAC, 60 Hz | | | | Dimensions | 7.8 x 0.9 x 3.4" / 19.7 x 2.4 x 8.6 cm | | Weight | 0.6 lb / 270.0 g | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 13.6 x 9.6 x 3.3" |
