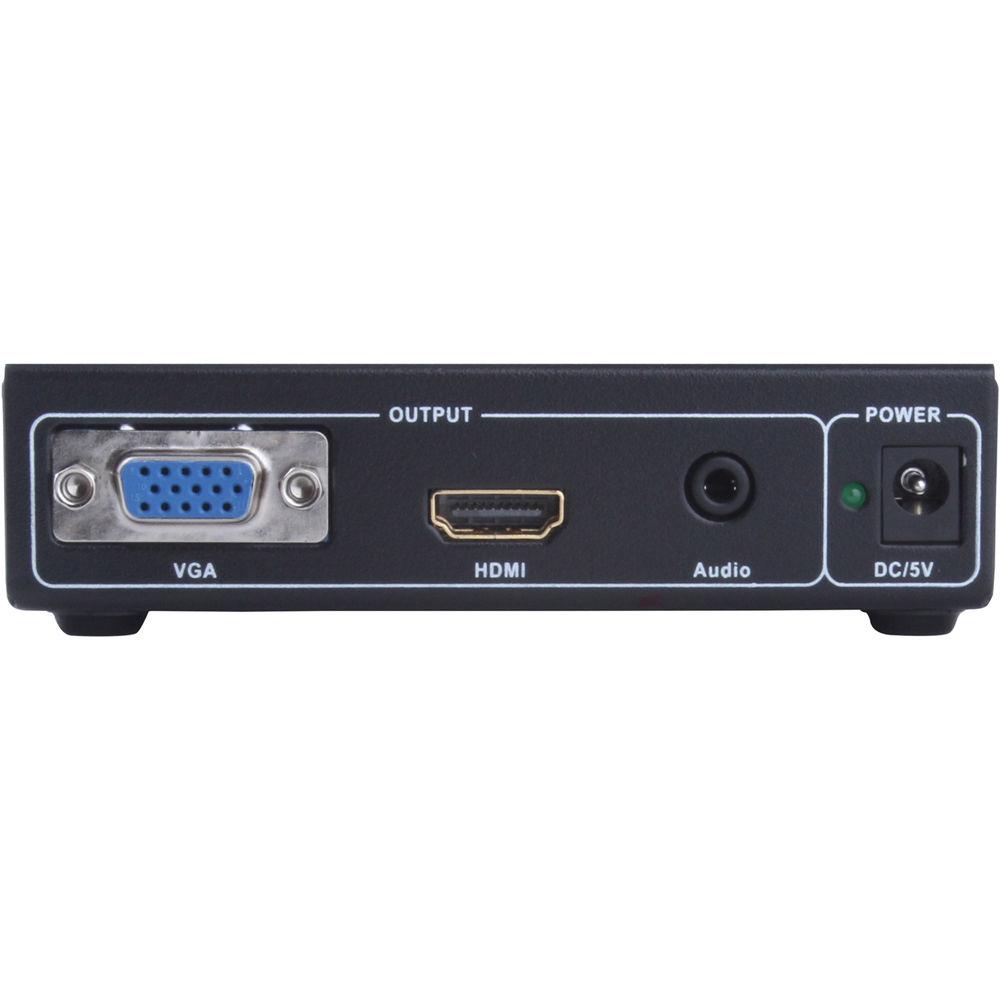

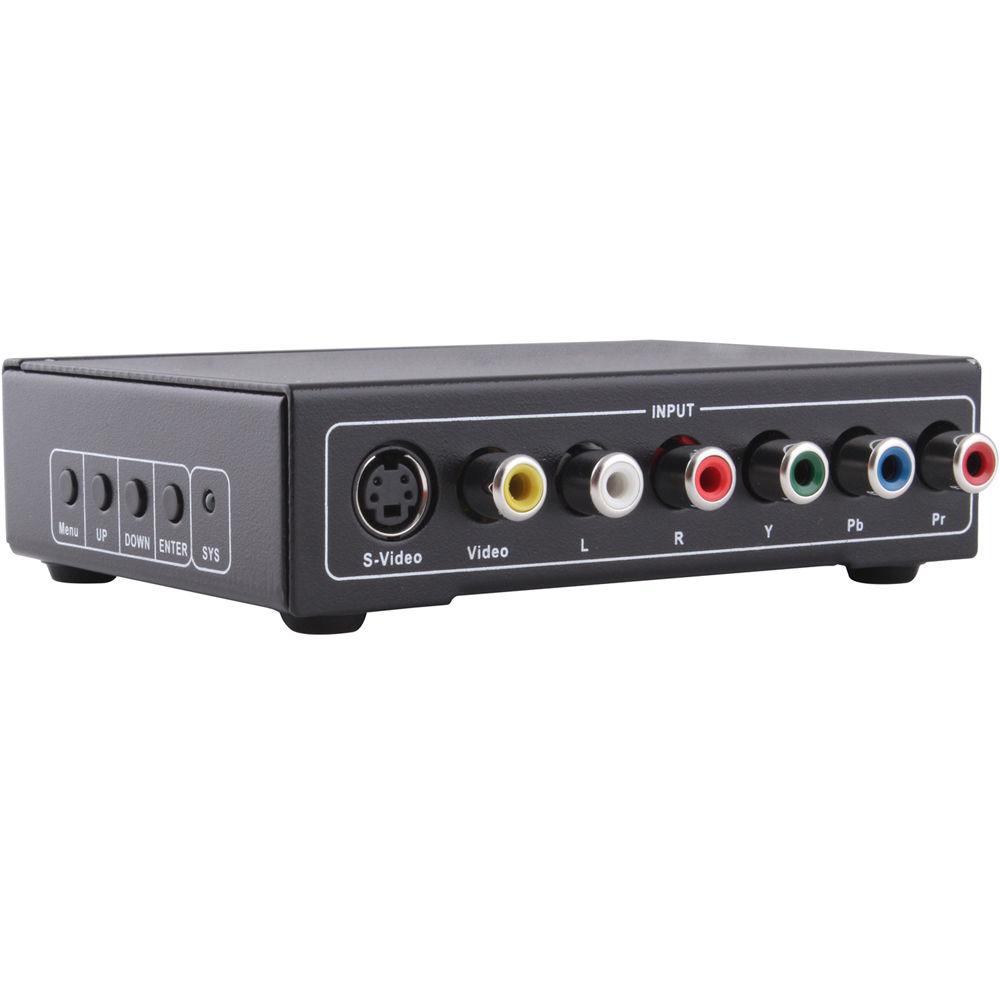

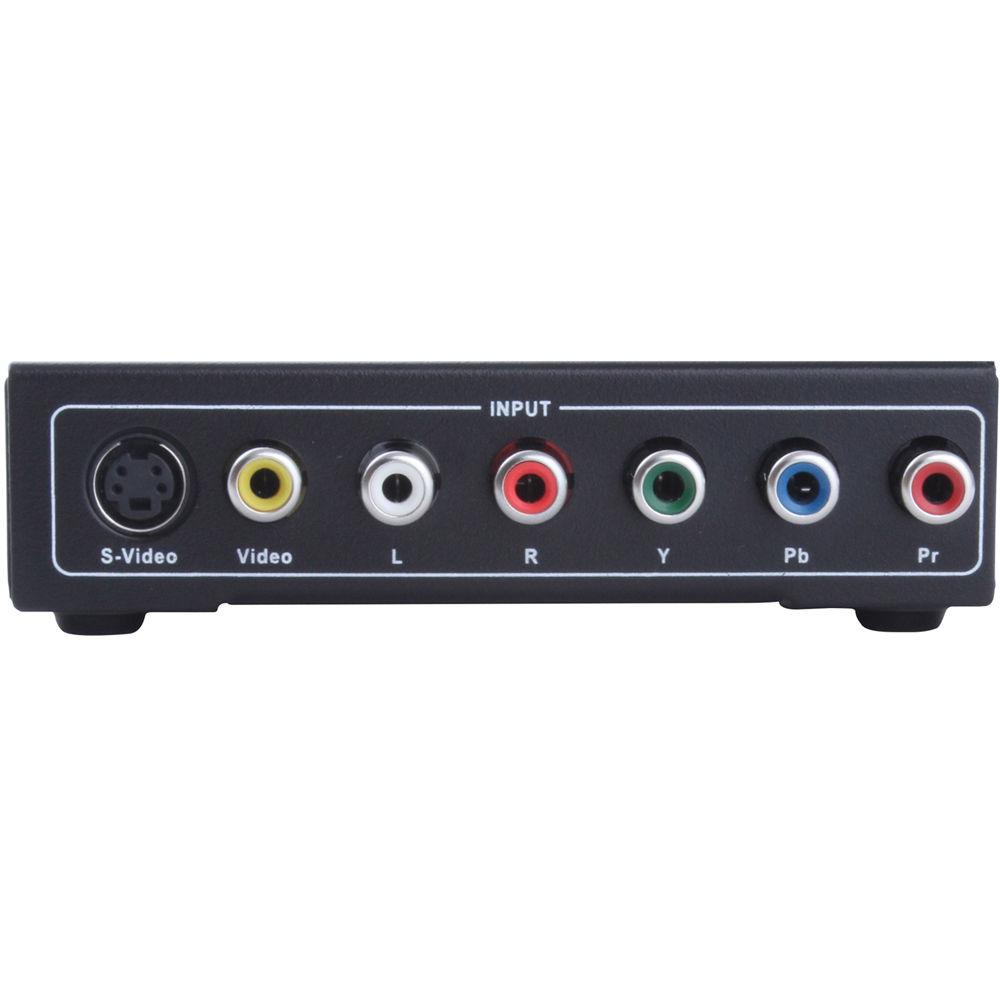

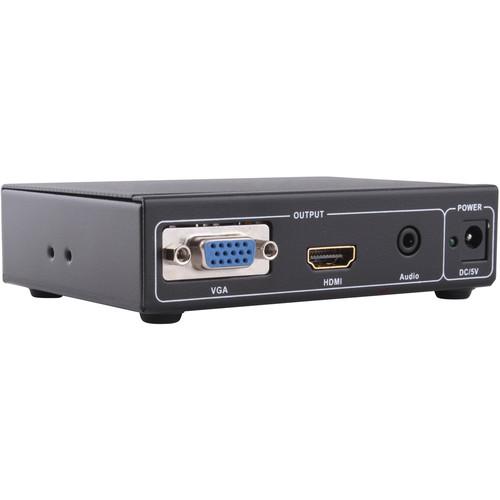

Product description The V2V-AV2HV HD Video Converter with Stereo Audio from Smart-AVI is designed to convert YPbPr, CVBS (composite), and S-video formats with R/L audio into complete HDMI and VGA plus stereo audio. The converter is easy to set up and use, and enhances visuals and audio automatically. This video converter is ideal for use in control rooms, corporate communications, server operations, medical campuses, banking, healthcare, and airports. The power supply is included with the converter. - Installs in seconds, no need to set anything
- Auto detects the input resolution without setting

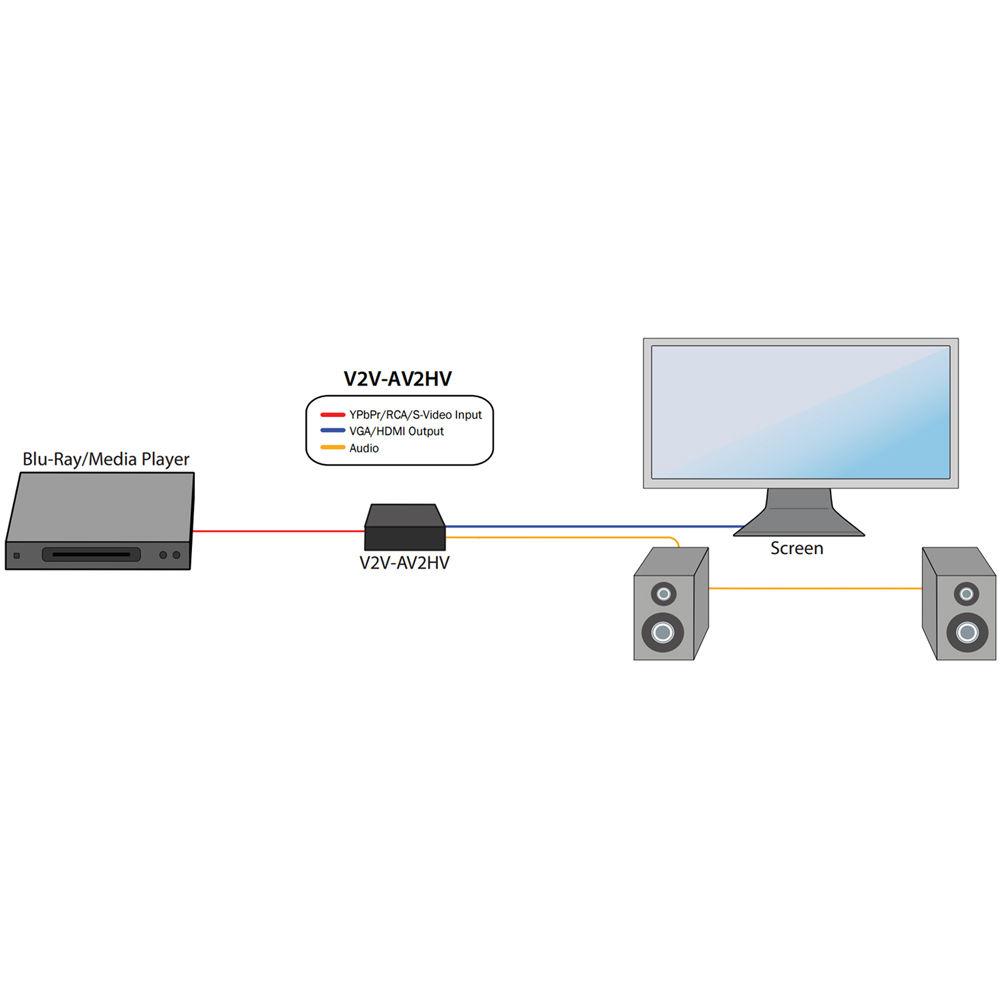

- Convert YPbPr video and R/L audio into complete HDMI and VGA plus stereo audio
- Supports CVBS (composite) video and R/L audio into complete HDMI and VGA plus stereo audio
- Convert S-video video and R/L audio into complete HDMI and VGA plus stereo audio
- Supports video resolutions up to 1080p
- 165 MHz / 1.65 Gbps per channel (6.75 Gbps all channels) bandwidth
- 8-bit per channel (24-bit all channel) deep color
- Supports OSD (On Screen Display) menu operation
- Ideal for use in control rooms, corporate communications, server operations, medical campuses, banking, healthcare, and airports
UPC: 813280023856 In the Box Smart-AVI V2V-AV2HV HD Video Converter with Stereo Audio PS5VD2A 5V 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI V2V-AV2HV HD Video Converter with Stereo Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI V2V-AV2HV Specs | | | Input Video Signal | 0.5 to 1 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Input Resolution | YPbPr: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
CVBS (Composite): NTSC / PAL
S-Video: NTSC / PAL | | Output Resolution | HDMI: 480i / 576i / 1080i
VGA: Up to 1920x1080 | | Color Depth | Per Channel: 8 bit
All Channels: 24 bit | | OSD Support | Yes | | | | Vertical Frequency Range | 50 / 60 Hz | | Video Amplifier Bandwidth | 1.65 Gbps / 165 MHz | | | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | 14 to 176°F (-10 to 80°C) | | Storage Humidity | 5 to 95% RH (no condensation) | | Operating Humidity | 10 to 85% RH (no condensation) | | | | External Power Supply | 5 VDC @ 2 A | | | | Dimensions (L x W x H) | 4.3 x 3.1 x 1.1" (11.0 x 8.0 x 2.7 cm) | | Weight | 7.9 oz (225.0 g) | | | | Package Weight | 1.135 lb | | Box Dimensions (LxWxH) | 7.8 x 5.4 x 4.5" |
