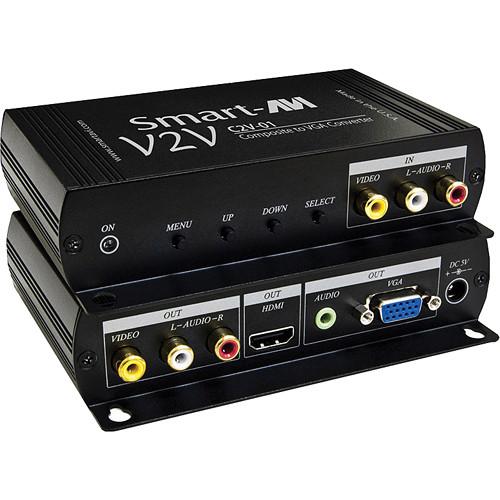

Product description The Smart-AVI V2V-C2V-01S Composite to VGA Converter with HDMI is used to convert analog signals from older composite video systems to VGA or HDMI signals. You can use its HDMI or VGA port to transmit digital video. It also has composite outputs that let you connect it to other composite devices, besides a 3.5mm port for audio output. - Specially designed for computer VGA/ HDMI monitors and LCD color monitors

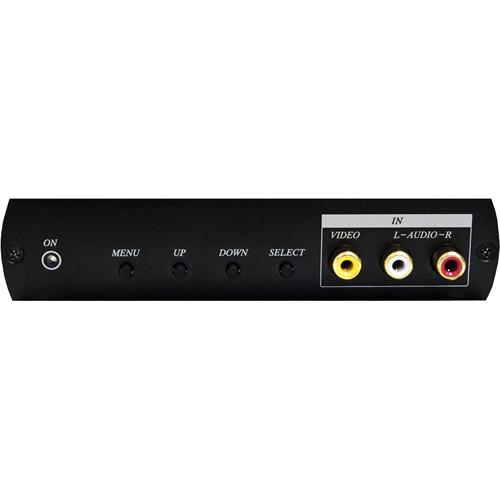

- Composite video input via an RCA

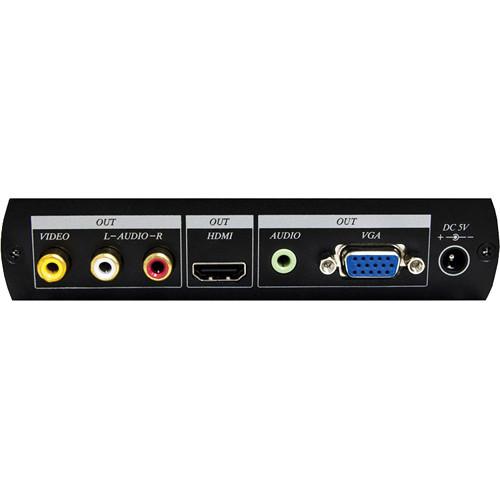

- Video (CVBS), VGA, & HDMI output
- Supports NTSC & PAL video system
- Input video system with 50 to 60 Hz frame rate detection (NTSC/PAL)
- Supports VGA, HDMI Resolutions: 800 x 600, 1024 x 768, 1280 x 720, 1920 x 1080 @ 60 Hz
- Supports HDMI Resolutions: 720p, 1080i, 1080p
- Built-in stereo audio input and output
- Any adjustment will be auto memory
- Frequency Output: 60 Hz, 75 Hz, 85 Hz
- On-Screen Display Function to adjust resolution, brightness, contrast, saturation, and hue
- Applications include security, PC networking, conference center systems, point of sale, camera surveillance, video phone, control room systems, and recording studio
UPC: 813280020220 In the Box Smart-AVI V2V-C2V-01S Composite to VGA Converter with HDMI 5V 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI V2V-C2V-01S Composite to VGA Converter with HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI V2V-C2V-01S Specs | | | Input Format | NTSC/PAL/SECAM | | Output Formats | NTSC/PAL/SECAM | | Resolution | 800 x 600, 1024 x 768, up to 1280 x 1024 @ 60 Hz | | Input Connectors | Input: 3 x RCA Female | | Loop Outputs | 3 x RCA Female | | | | Format | VGA: RGBHV, RGsB, YUV, Y/C, CVBS | | Resolution | Up to 1920 x 1200 VGA, SVGA, XGA, SXGA, UXGA, WUXGA | | Output Connectors (Analog) | 1 x HD-15 female | | | | Format | Video: HDMI 1.3b (deep color, xvYcc color space supported) | | DVI Compliance | Single-link DVI-D 1.1 | | HDCP Compliance | 1.0/1.1 | | Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) | | Resolution | 480i, 480p, 720i, 720p, 1080i, 1080p | | Output Connectors (Digital) | 1 x HDMI (7.1 channel audio & video) | | Connector | Type (19-pin female) | | Maximum Distance | 25.0' (7.6 m) | | | | Signal Type | Stereo unbalanced | | Output Interface | 3.5 mm jack socket (female) | | | | Operating Temperature | 32 to 131°F (0 to 55°C ) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Power | External: 100 to 240 VAC / 5 VDC 2A @10 W | | Dimensions (W x H x D) | 5.75 x 1.25 x 3.25" (146.0 x 31.7 x 82.5 mm) | | Weight | 1.0 lb (0.4 kg) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 7.6 x 5.5 x 4.4" |
