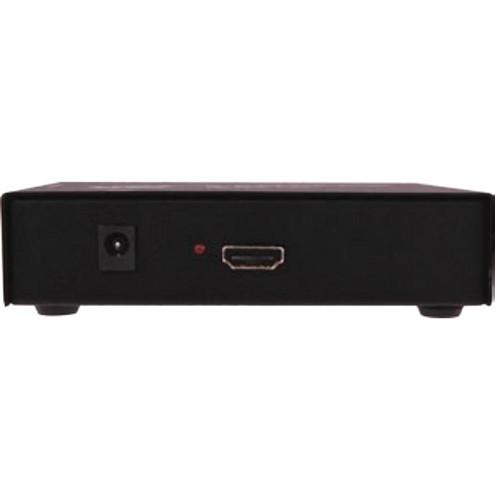

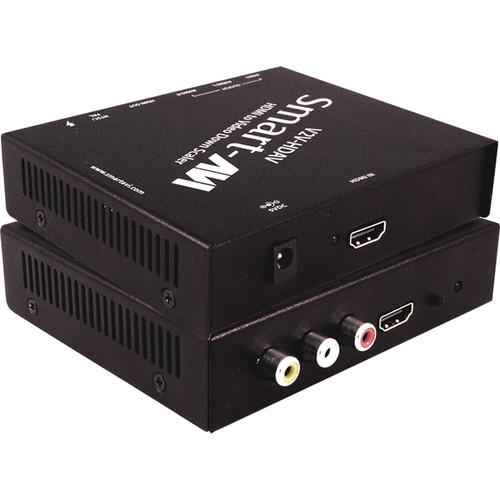

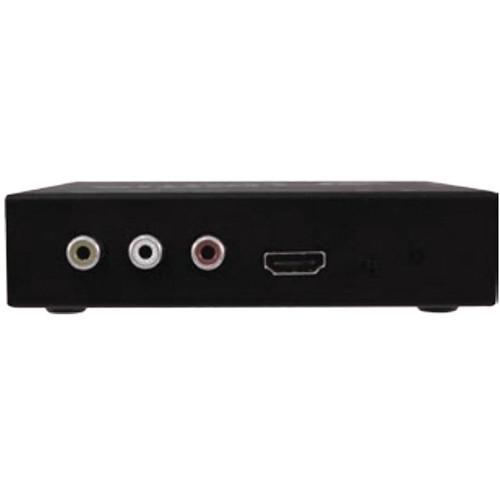

Product description The V2V-HDAV HDMI to Composite RCA Downscaler with HDMI Loop Output from Smart-AVI is designed to convert HD HDMI input signals to SD analog CVBS output. It downscales the 1080p HDMI input to standard NTSC (480i) or PAL (576i) formats. In addition, it converts digital audio to analog L/R stereo audio output. The HDMI to composite downscaler offers a local HDMI loop that allows routing 1080p signal along with the downscaled signal, eliminating the use of an external splitter. This functionality makes routing 1080p signals effortless to a variety of older displays and audio receivers. Requiring no software driver, the V2V-HDAVS Downscaler offers plug-and-play capability. - Plug-and-play design that doesn't require a software driver
- Supports NTSC and PAL TV formats
- HDMI input and output, AV output, and stereo audio output
- HDMI Input: 480p, 576p, 720p, 1080i, 1080p @ 60Hz
- Compatible DVI Modes: 800 x 600, 1024 x 768, 1280 x 720, 1280 x1024, 1920 x 1080 @ 60 Hz
- Supports HDMI 1.3 and HDCP protocol
- Suitable for video conferencing, video capture, video walls, educational institutions, security systems, video modulation, multimedia presentations, and video installations
- Designed and manufactured in USA
UPC: 813280020213 In the Box Smart-AVI V2V-HDAV HDMI to Composite RCA Downscaler with HDMI Loop Output PS5VD2A 5V 2A Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI V2V-HDAV HDMI to Composite RCA Downscaler with HDMI Loop Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI V2V-HDAVS Specs | Video Amplifier Bandwidth | 3.2 Gb/s | | Input Ports | 1 x HDMI | | Input Video Signal | Video (TMDS) 0.5 to 1.0 Vpp | | Output Ports | 3 x RCA (composite video and stereo audio)
1 x HDMI | | Signal Supports | HDMI standard, DVI, and HDCP compliant | | Pixel Frequency | Clock frequency beyond 165 MPix/sec | | Input DDC Signal | 5 V | | Format | 4:4:4 and 4:2:2 data input formats | | Resolution | 480, 720p, 1080i, 1080p HDMI formats | | Output Resolutions | NTSC, PAL | | Power Supply | 5 VDC / 2 A (power supply included) | | Dimensions (W x H x D) | 4.75 x 1.13 x 4.00" (12.07 x 2.87 x 10.16 cm) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.7 x 5.4 x 4.3" |
