User Manual for Smart-AVI V2V-MAX-2 Full HD Automatic Switcher with Integrated Scaler Click to enlarge the picture
Contents of the user manual for the Smart-AVI V2V-MAX-2 Full HD Automatic Switcher
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI V2V-MAX-2 Full HD Automatic Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

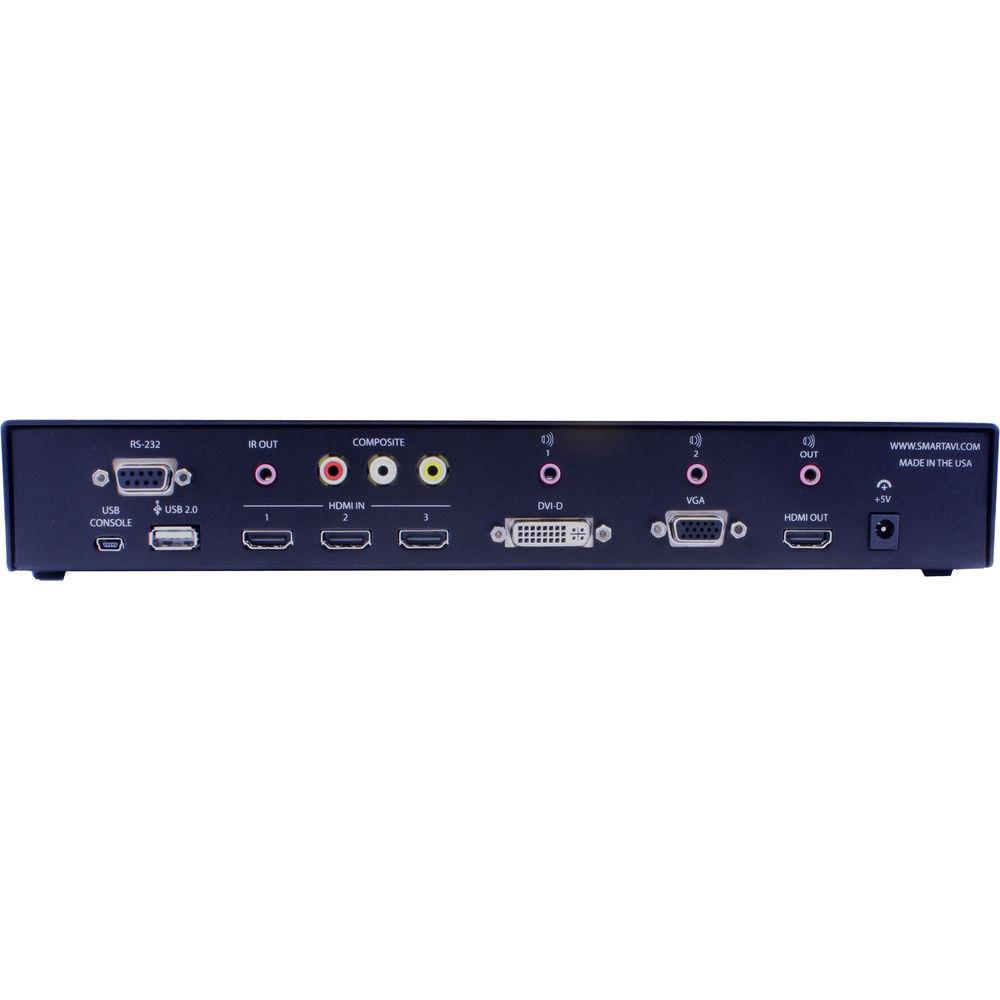

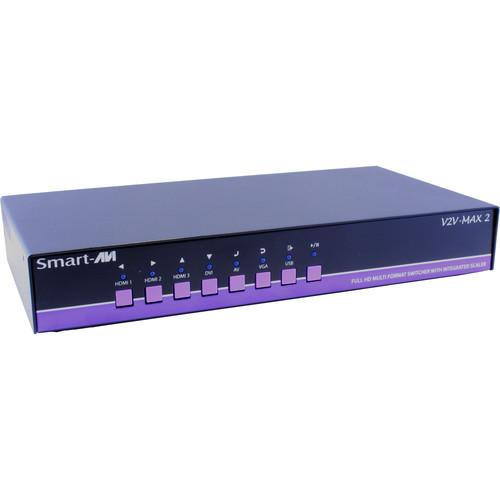

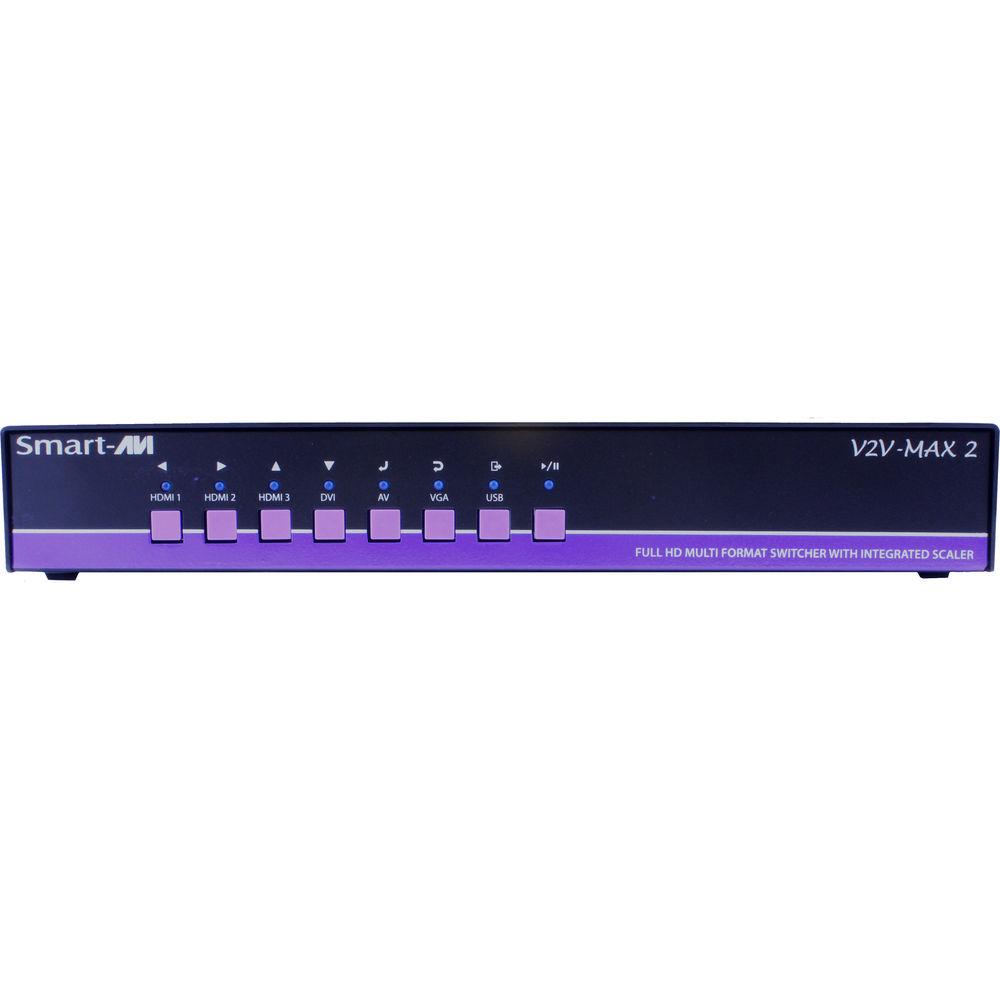

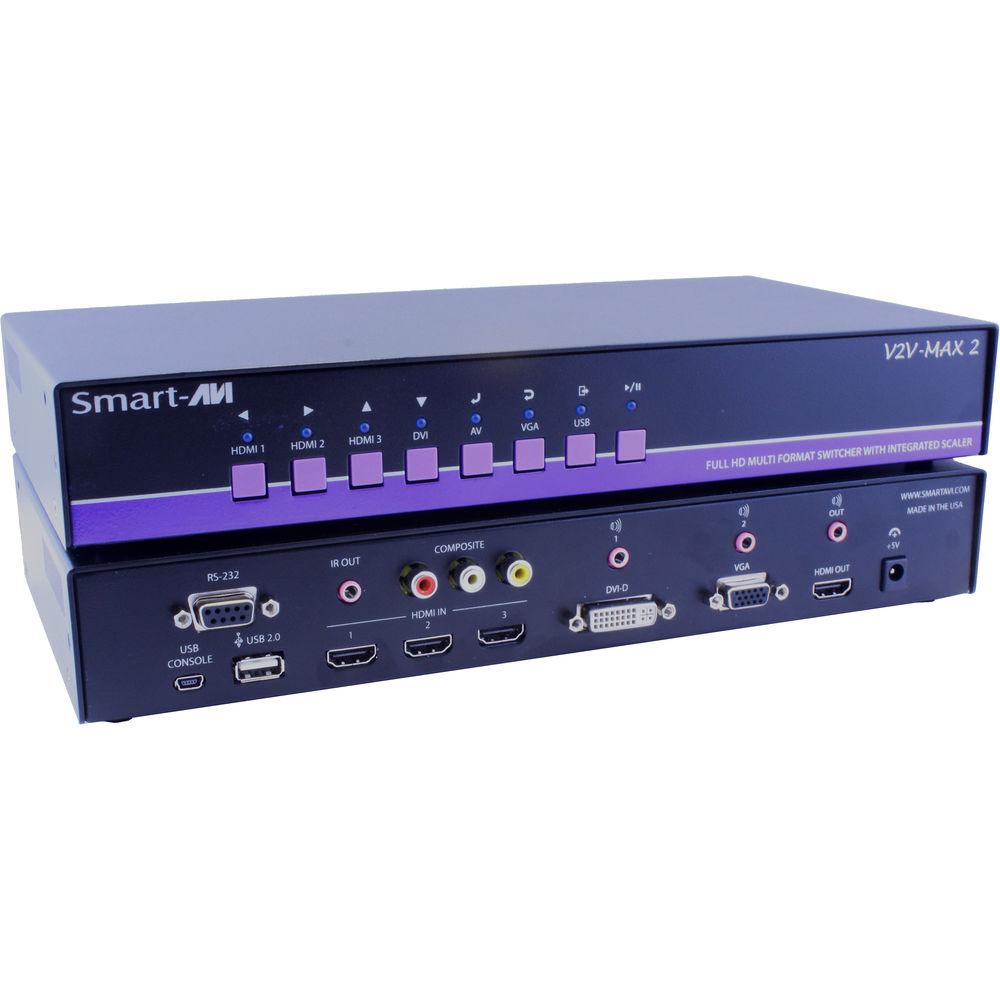

Product description The V2V-MAX-2 Full HD Automatic Switcher from Smart-AVI is a seven-port switch that offers Full HD output from multiple video formats and connectors. With DVI, VGA, composite, USB, and HDMI support, the switcher offers robust system integration suitable for presentation settings of all kinds. It also offers integrated scaling and video conversion support, making it an all-in-one fix for signal switching needs. - General
-
- Automatic switching
- Seven input ports
- CVBS, NTSC, and PAL with audio input
- DVI-D input
- VGA with local audio up to 1920 x 1080
- Three HDMI 1080p ports with automatic EDID learning
- USB input supports flash disk drive MPEG, H.264, RM/RMVB movie decode, JPEG, BMP, PNG picture decode, and MPEG1/2, MP3 audio decode
- RS232 and IR controllable; IR remote control included
- Front panel LED and on-screen display menu selection
- HDCP 1.3 compliant
- Plug-and-play
- Applications
- Presentations, corporate communications, server operations, business slideshows, entertainment venues, theaters, schools, home systems, and more
UPC: 813280020237 In the Box Smart-AVI V2V-MAX-2 Full HD Automatic Switcher with Integrated Scaler IR Remote Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI V2V-MAX-2 Full HD Automatic Switcher with Integrated Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI V2V-MAX-2 Specs | | | HDMI | 3 x HDMI Type A, female; 640 x 480 to 1920 x 1080 (60 Hz) | | DVI-D | DVI-D, female with stereo audio support | | VGA | 15-Pin VGA, female with stereo audio support; 640 x 480 to 1920 x 1080 (60 Hz) | | Composite | 3 x RCA CVBS with stereo audio support; PAL, NTSC, SECAM | | USB | USB Type A
Decoding: MPEG, H.264, RM/RMVB movie; JPEG, BMP, PNG picture; MPEG1/2, MP3 audio | | | | HDMI | HDMI Type A, female; 1080p | | | | Front Panel | 8 x Tactile buttons | | Remote Control | IR | | RS-232 | DB9, female, 9600, 8, N, 1, no flow control | | | | Power | 5 VDC, 4 A | | Operating Temperature Range | -41 to 95°F / -5 to 35°C | | Operating Humidity Range | 50 to 90% RH (no condensation) | | Dimensions | 2 x 12 x 6" / 5.0 x 30.5 x 15.2 cm | | Weight | 1.6 lb / 0.7 kg | | | | Box Dimensions (LxWxH) | 10.0 x 8.0 x 7.0" |
