User Manual for Smart-AVI Video Wall Player with 4GB RAM and 120GB Disk Click to enlarge the picture
Contents of the user manual for the Smart-AVI Video Wall Player with 4GB
- Product category: Digital Signage Players Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Digital Signage Players
 |
User manual for the Smart-AVI Video Wall Player with 4GB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

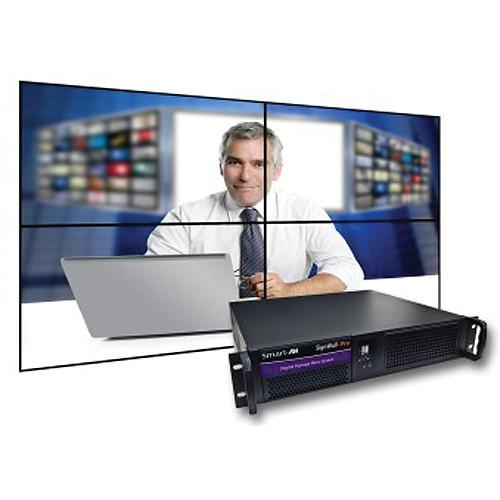

Product description This Video Wall Player from Smart-AVI is a customizable video wall and digital signage solution to display content directly from your cable box and local network. It allows you to manage live HTML5 widgets within any of SignWall’s customizable zones and delivers clear 1080p HD video quality with desktop sharing capabilities. The video wall player supports pre-existing media and comes with many time-tested layout templates that you can easily plug your content into. -
- Manage live HTML5 widgets within any of SignWall’s customizable zones
- Crystal clear 1080p HD video quality with desktop sharing capabilities
- Run HD video or looping slideshows
- Stay informed by adding a live news ticker with news from your company or favorite news site
- Easy to set up and manage over the internet
- RSS feed display capabilities
- Suitable for use at airports, malls, universities, corporate lobbies, and restaurants for visual communication
- Fully customizable display templates
- Fully automatic
In the Box Smart-AVI Video Wall Player with 4GB RAM and 120GB Disk AP-SNW-SW SignWare Manager Software rewbeufqcdcxrzrzurdccebf CCPWR06 6' Power Plug Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI Video Wall Player with 4GB RAM and 120GB Disk in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI AP-SVW-120G5S Specs | | | Image | JPG, GIF, Animated GIF | | Video | AVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, MP@L3.0 | | Audio | MPEG-1 Layer I, II, MPEG-4 AAC | | Other | Excel, PowerPoint, PDF, HTML, Flash, QuickTime, RSS | | | | Adapter | AMD Radeon 5570 GPU @ 650 MHz 900345 | | Memory | High-speed DDR3 memory | | Resolution | Up to 1920 x 1200 @ 60 Hz
Standard Digital: 7680 x 1080 (2x2) Eyefinity mode
1920 x 4320 (1x4) Eyefinity mode
5760 x 1080 (1x3) Eyefinity mode

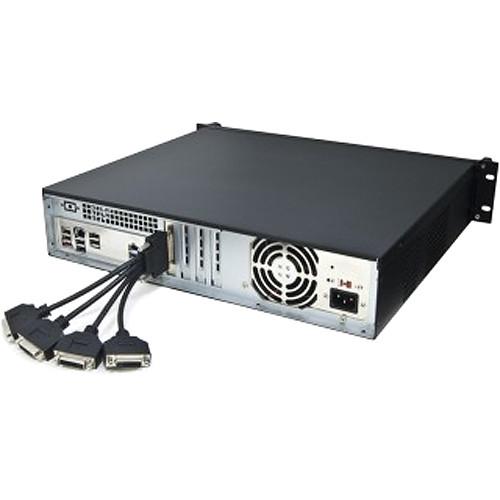

1920 x 3240 (3x1) Eyefininity mode | | Connector | (4) DVI-D via VHDCI breakout cable | | Audio Interface | Connector: Stereo 3.5mm Female, SPDIF | | | | USB | 2 x USB 2.0
2 x USB 3.0 | | Firewire | IEEE 1394a | | Power | Internal 100 to 240 VAC, 50-60 Hz, 500 W | | Network | RJ45 Gigabit | | | | Operating Temperature | 35 to 96°F (1.6 to 35°C) | | Storage Temperature | -20 to 140°F (-28 to 40°C) | | | | Motherboard | Intel BOXDP67DEB3 LGA 1155 Intel P67 SATA 6 Gb/s USB 3.0 Micro ATX Intel Motherboard | | Processor | Intel Core i5-2400 Sandy Bridge 3.1 GHz (3.4 GHz Turbo Boost) LGA 1155 95 W Quad-Core Desktop Processor | | RAM | G.SKILL Ripjaws X Series 4 GB (2 x 2G B) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory | | Storage | SanDisk Ultra SDSSDH-120G-G25 2.5" 120 GB SATA II Internal Solid State Drive (SSD) | | Operating System | Windows 7 | | Onboard Video | Intel HD Graphics 2000 PCI-E | | Onboard Memory | 3 GB DDR3, 160 MHz of working frequency, 32-bit of bit wide | | Input Interface | 1 HDMI interface (DVI)
1 DB9 interface (to YPbPr, S-Video, CVBS,1 unbalanced stereo audio line in) | | Sampling Rate | CVBS: 54 MHz (4x oversampling)
HDMI/DVI: 225 MHz | | YPbPr Input Mode | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p | | DVI Input | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p | | HDMI Input Mode | Up to HDMI 1.3 standard, support 36-bit DeepColor | | CVBS Input | Standard PAL/NTSC |
