User Manual for Smart-AVI VNETX-16P 16-port USB and WUXGA KVM Over Cat5 Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI VNETX-16P 16-port USB and WUXGA
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI VNETX-16P 16-port USB and WUXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

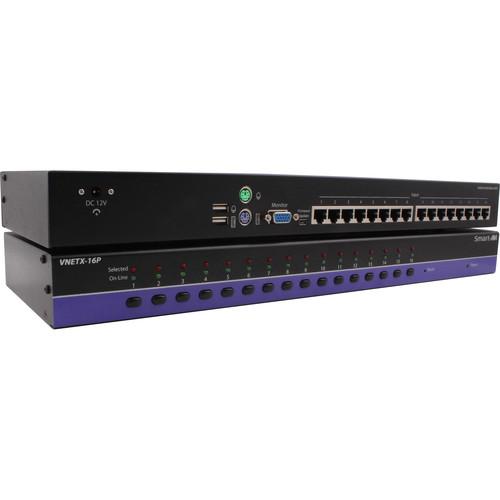

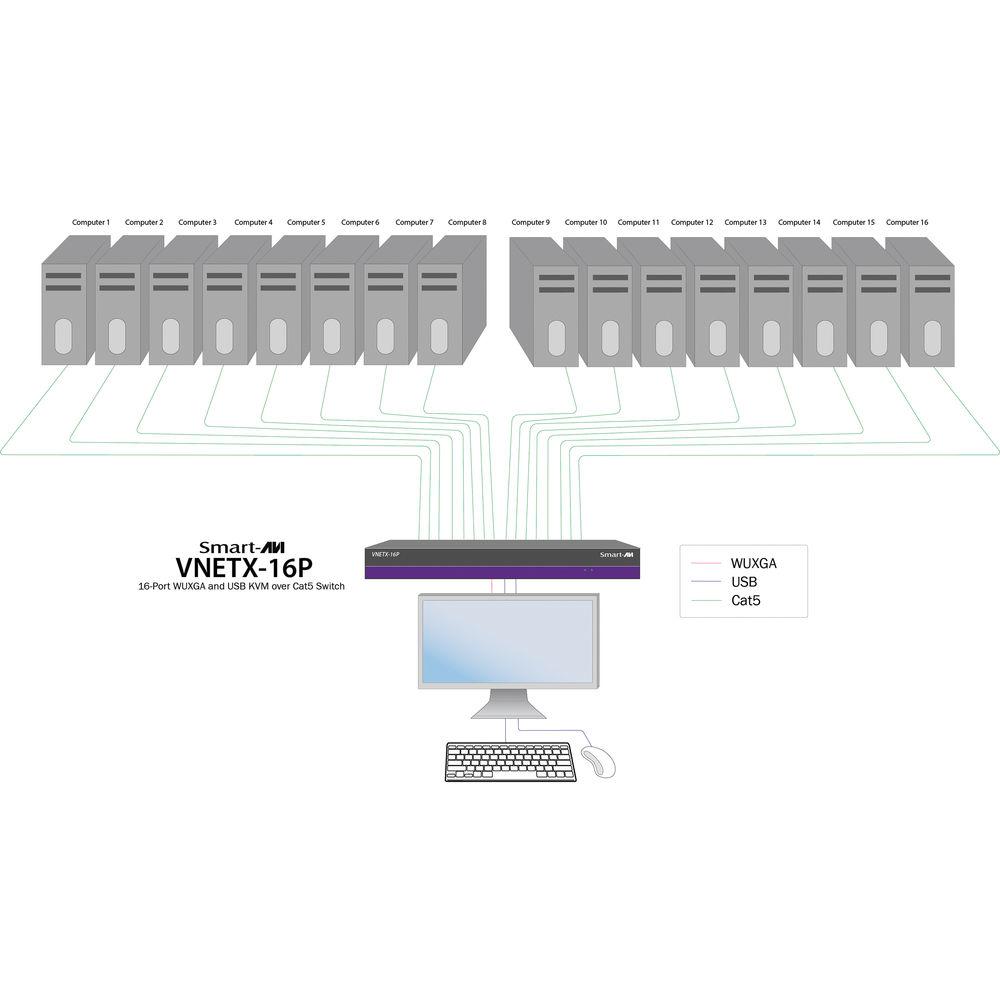

Product description Multi-Monitors: Maximizing Multitasking Read More The VNETX-16P 16-port USB and WUXGA KVM Over Cat5 Switch from Smart-AVI uses combination KVM cables over Cat5 to bundle WUXGA video with USB and PS/2 ports to eliminate the confusion of running multiple cables from each connected computer to the KVM switch. The 16 connected computers can be switched using front-panel switches, supported hot-key functionality, or the on-screen display (OSD). All devices connected to the VNETX-16P are hot-pluggable, enabling you to add or remove devices without restarting the switch. It also features keyboard and mouse emulation, secure access through certificate authentication and data encryption, and a mini-USB port for firmware updates. - Supports Mac, PC, Linux, and Sun
- Supports resolutions of 1920 x 1200 at 60H z WUXGA
- KVM control of 16 computers and rack mountable
- Uses combo KVM cable over Cat5 for consolidated connectivity
- 130 feet of signal extension over the Cat5 cable
- Supports USB 1.0, 1.1, 2.0, and PS/2 keyboard and mouse with full emulation

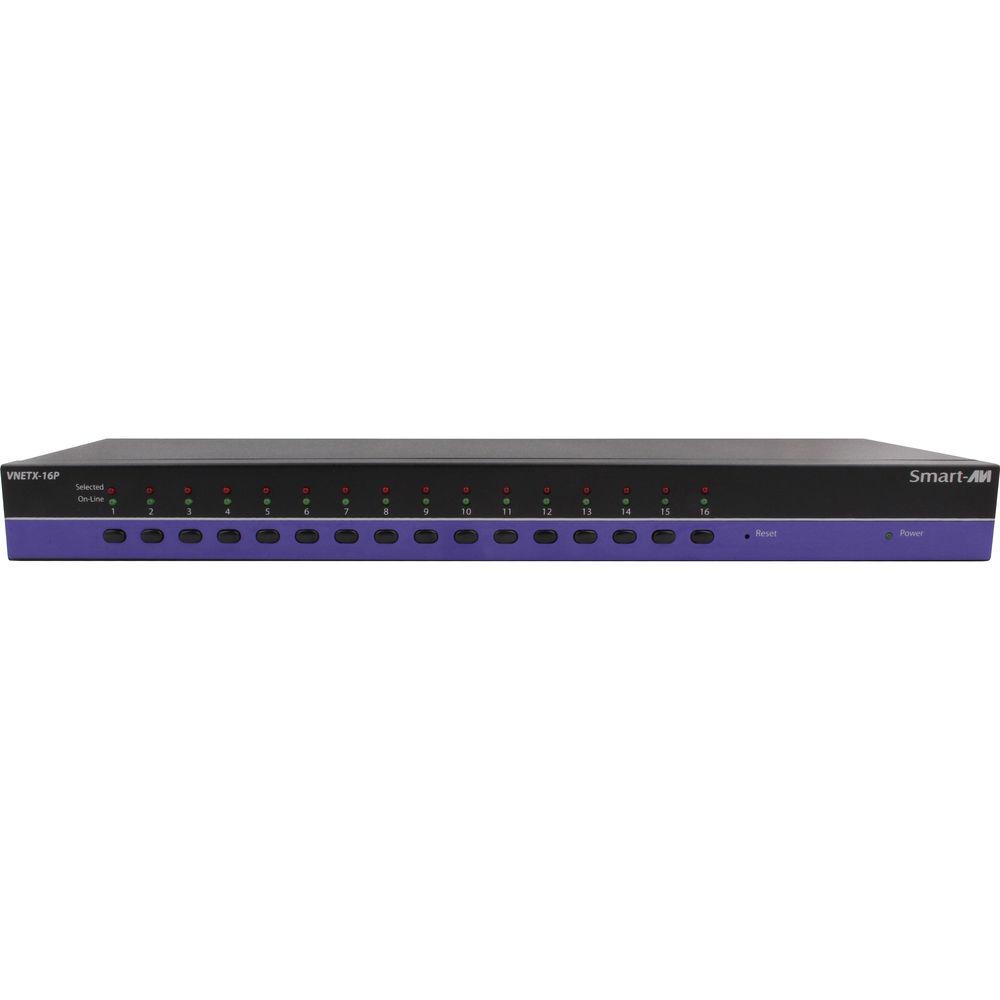

- Front panel tactile switches with LED status indicator
- Includes OSD (On Screen Display)
- Supports auto-scan mode for discovery
In the Box Smart-AVI VNETX-16P 16-port USB and WUXGA KVM Over Cat5 Switch Power Adapter Limited 1-Year Warranty Brochure PDF 1.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI VNETX-16P 16-port USB and WUXGA KVM Over Cat5 Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI VNETX+16PS Specs | Format | VGA RGB Analog | | HDTV Resolutions | Up to 1600 x 1200 @ 85 Hz, 2048 x 1536 @ 60 Hz | | Frequency Range | H: 30 to 95 kHz

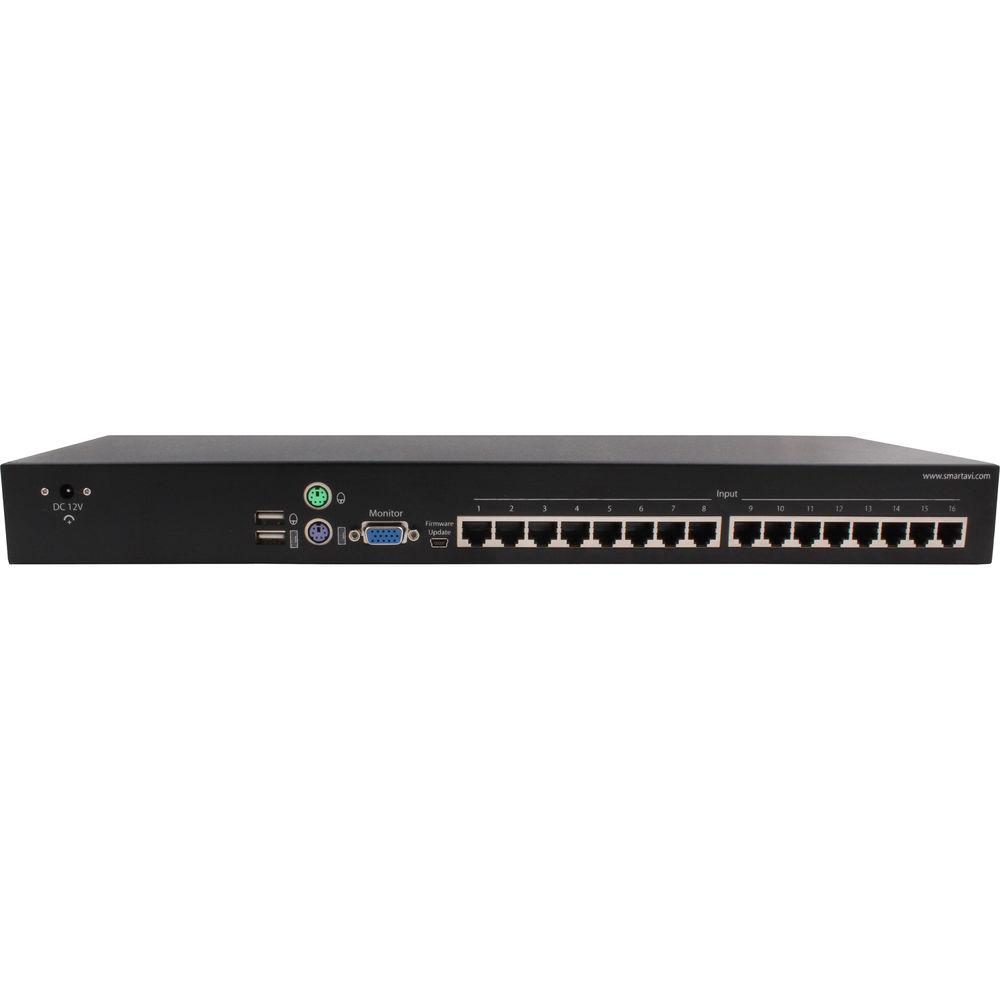

V: 50 to 180 Hz | | Signaling | USB 1.1,1.0,2.0 | | Connections | Video Input Interface: 16 x RJ-45 for Cat5
Output Interface: 1 x HD-15 Female
USB Output Interface: 2 x USB Type A, 2 x PS/2
Firmware Update: 1 x Mini USB | | Supported Operating Systems | Mac, PC, Linux, Sun | | Control | Front panel: tactile switches
OSD: on screen display | | Power | External adapter 12 VDC, 2 A | | Approvals | UL, CE, ROHS compliant | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Dimensions | 17.3 x 1.5 x 6.1" / 43.9 x 3.8 x 15.5 cm
Extension: 130.0' / 39.6 m over Cat5 | | Weight | 5.0 lb / 2.3 kg |
