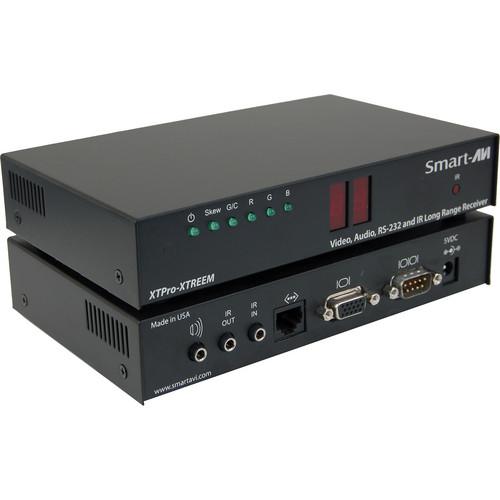

Product description The Smart-AVI XTP-RXX XTPro Xtreem Receiver with Power Supply (UXGA/Audio/CAT5) is the receiver end of the XTPro range of signal extenders, and boosts lossless audio/video signal transmission over a CAT5 STP cable to 1699'. The receiver features a simple plug-and-play setup, and is designed to be compatible with a wide range of Smart-AVI products. Unbalanced stereo audio signals can be received by the XTP-RXX, and line loop stereo signals are also supported. The XTP-RXX XTPro Xtreem Receiver can receive RGBHV, RGsB, YUV, Y/C, and CVBS format video signals UXGA resolutions. The unit also supports VGA, SVGA, XGA, SUN, MAC, and SGI resolutions to maximize integration. Additionally, it can receive infrared or RS-232 inputs coming from a XT-Pro transmitter.The XTP-RXX XTPro Xtreem Receiver features automatic video controls to give you the best picture possible in a variety of scenarios. Signal amplification technology compensates for the CAT5 cable latency, and automatic digital video tuning provides the optimal image at all resolutions. The unit also features a remote controlled skew control that eliminates any audio-video delay that might have occurred during transmission. The skew control can be set in 2ns delay increments up to 62ns. In addition, the XTP-RXXS features automatic contrast and gain controls to allow strong, clean signals. It is protected by a sturdy metal case, and features surge and lightning protection. - Transmission
-
- Audio, video, IR, and RS-232 signals up to 1699' through CAT5 Ethernet cable
- Video Data
-
- Support for RGBHV, RGsB, YUV, Y/C, and CVBS formats
- Resolutions of UXGA, SXGA, XGA, SVGA, and VGA supported
- Maximum resolution 1900 x 1200 o HD15 connector socket
- Audio
-
- Reception of unbalanced stereo audio signals
- Compatible with line loop stereo audio signals
- 3.5 mm socket
- RS-232
-
- TXD, RXD, GRD interfaces
- 9600 bps speed
- Signal Enhancements
-
- CAT5 compensation
- Automatic digital video tuning at all resolutions
- Automatic gain control
- Automatic skew adjustments with remote control
- Sync format / polarity preservation
- Integration
-
- Plug-and-play
- Compatible with wide range of Smart-AVI products
- Compatible with PC / Mac operating systems
- Protection
-
- Sturdy metal casing
- Ground loop immunity
- Lightning and power surge protection
- Power Supply
-
- 5 VDC power supply @ 2A (PS5VD2A)
In the Box Smart-AVI XTP-RXX XTPro Xtreem Receiver with Power Supply (UXGA/Audio/CAT5) PS5VD2A 5V 2A Power Supply saqyqbequvvrzaywbfazvwsqauecwfbraefafx 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI XTP-RXX XTPro Xtreem Receiver with Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI XTP-RXXS Specs | | | Ports | Receiver:
1 x 3.5 mm IR (Input)
1 x RJ45 Ethernet (Input)
1 x HD15 VGA (Output)
1 x 3.5 mm IR (Output)
1 x 3.5 mm Audio (Output)
1 x DB9 RS232 (Output) | | Supported Resolutions | 1900 x 1200
1280 x 1024
1024 x 768
800 x 600
640 x 480 | | Maximum Transmission Distance | 1699' / 518 m | | Audio Channels Supported | 2-Channel Stereo Unbalanced | | RS232 Data Rate | 9600 bps | | | | DC Input Power | 5 VDC at 2 A | | | | Dimensions | 3.7 x 3.1 x 0.9" / 95.0 x 80.0 x 23.0 mm | | Weight | 4.2 oz / 120.0 g |
