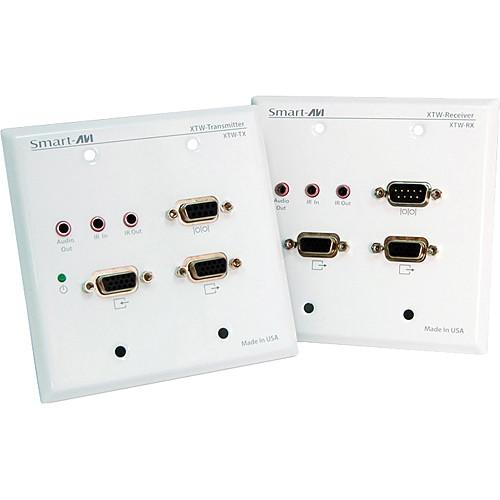

User Manual for Smart-AVI XTWALLS CAT-5 Extender System Click to enlarge the picture
Contents of the user manual for the Smart-AVI XTWALLS CAT-5 Extender System
- Product category: KVM Extenders Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Extenders
|
User manual for the Smart-AVI XTWALLS CAT-5 Extender System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description The XTWALLS CAT-5 Extender System from Smart-AVI is a paired system designed to transport high-resolution UXGA, stereo audio, RS-232, and IR signals over twisted-pair UTP cable. This bundled package includes both the transmitter and receiver necessary to form a complete solution. This model supports transmission distances up to 350' (106m). It is well suited for use in presentations, data broadcasting, and training, among many other possible applications and settings. - Sends high-resolution VGA, stereo audio , RS-232, or IR
- Wall-plate design for custom integrated look
- Choose from a variety of colors and styles
- Supports dual screens on receiver
- Uses easy to install, inexpensive CAT-5/5e/6/7/8 cable
- Each Output reaches up to 350' (106m)
- Supports resolutions up to 1900 x 1200
- HDTV-compatible (720p, 1080i, 1080p)
- Sync format and polarity preservation are included
- Compatible with line-level stereo audio signals
- High ground loop immunity
- Built-in power surge and transient protection
- Designated trimmer in the remote unit to compensate for cable length
- Compatible with VGA, XGA, Sun, Mac, and SGI
In the Box Smart-AVI XTWALLS CAT-5 Extender System XTW-TX Transmitter XTW-RX Receiver 2 x Power Supplies One-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI XTWALLS CAT-5 Extender System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI XTWALLS Specs | | | Ports | Transmitter:
1 x HD15 VGA (Input)
1 x 3.5 mm IR (Input)
1 x DB9 RS232 (Input)
1 x HD15 VGA (Output)
1 x 3.5 mm IR (Output)
1 x 3.5 mm Audio (Output)
Receiver:
1 x 3.5 mm IR (Input)
2 x HD15 VGA (Output)
1 x DB9 RS232 (Output)
1 x 3.5 mm IR (Output)
1 x 3.5 mm Audio (Output) | | Transmission Method | CAT5 Cable | | Impedance | 10K Ohms (Audio)
75 Ohms (Video) | | | | Bandwidth | 20 kHz (Audio)
400 MHz | | Frequency Response | 15 to 130kHz (Horizontal)
30 to 120Hz (Vertical) | | | | DC Input Power | 5 VDC at 0.5 A |
