User Manual for Smith-Victor K64 3-Light 1000-Watt Quartz Portrait Kit Click to enlarge the picture
Contents of the user manual for the Smith-Victor K64 3-Light 1000-Watt Quartz Portrait
- Product category: Tungsten Lights Smith-Victor
- Brand: Smith-Victor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smith-Victor Tungsten Lights
|
User manual for the Smith-Victor K64 3-Light 1000-Watt Quartz Portrait contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smith-Victor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smith-Victor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smith-Victor product will considerably shorten its lifespan!
|

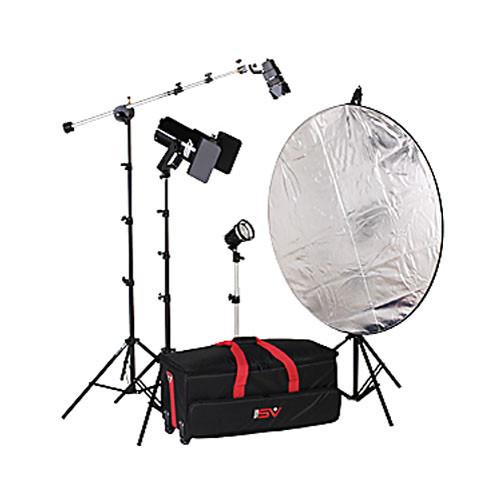

Product description The Smith-Victor K64 3-Light 1000-Watt Quartz Portrait Kit provides 1000 watts of illumination with 3 different fixtures. The 700SG Open Face 250-watt Flood Light is a lightweight, yet powerful light source. It's easy to set up and transport. The etched reflector provides smooth, clear lighting over a 40° beam spread. The Q60SG is a contemporary-styled, general purpose 600-watt quartz halogen light for photographic and video applications. Supplied with permanently attached 2-leaf barndoors for optimal light control and glass shield for safe operation, it produces an 80° beam angle. The AK415 is a sleek, low profile and lightweight video light complete with barndoors. It provides 150 watts of clean quartz lighting. It tilts for angle adjustment and can also mount on standard camera shoe (with optional #401946 adapter). This kit is rounded out with three 8' black aluminum light stands, a 3' background stand, a 42" 5-in-1 collapsible reflector with adjustable arm, bulbs, and a soft kit case. - Cool Running
- The fixtures are vented and baffled.
- Chameleon 5-in-1 Reflector
- Collapsible 42" reflector provides translucent, silver, gold, black, and white surfaces for a variety of lighting accent possibilities. It folds to 1/3 its open size and includes a nylon carry sleeve.
- Telescopic Boom Arm with Counterweight
- Mount a small fixture to this mini boom arm. It extends to 5.3' (1.6m).
- Barndoor Sets
- Two of the fixtures have integral barndoor leaves which aid in altering the shape of the light emitted.
- Raven Aluminum Stands
- Smith Victor's own stands are included: three 8' and one 3' back light stand.
- Soft Case
- The kit case has a canvas shell, handles, and padded interior dividers.
UPC: 037733008478 In the Box Smith-Victor K64 3-Light 1000-Watt Quartz Portrait Kit (120V) 600W 700SG Quartz Light (120V) K60 1-Light 600 Watt Quartz Kit AL415 150 Watt AC Video Light (120V) DYS Lamp - 600 Watts/120 Volts EYH Lamp - 250W/120V ESY Lamp - 150W/120V 42" 5-in-1 Chameleon Reflector RS8 Aluminum Light Stand (8') RS3 Air-Cushioned Aluminum Light Stand (3.0') MB110 2-Section Lightweight Boom Soft Case for 2 Powerlights/Stands "Imaging With Light" Guide Booklet Limited 2-Year Warranty on Fixtures Limited 1-Year Warranty on Accessories Limited 30-Day Warranty on Chameleon Reflector Table of Contents
|
Upload User Manual
Have you got an user manual for the Smith-Victor K64 3-Light 1000-Watt Quartz Portrait Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmith-Victor 401466 Specs | Rating | 700SG: 600 W maximum
Q60SG: 600 W possible, 250 W as supplied
AL415: 150 W maximum | | Socket (Lampholder) | 700SG: Miniature 2-pin G5.3
Q60SG: 2-pin pre-focus GZ9.5
AL415: Miniature 2-pin G6.35 | | Lens (Condenser) | Not applicable | | Reflector (Mirror) | 700SG: Etched aluminum
Q60SG, AK415: Pebble finish spun aluminum | | Mounting | Universal 3/8-5/8" | | Yoke | 700SG, AL415: Not applicable
Q60SG: Heavy-duty swivel | | Cable | 700SG, AL415: 10' / 3 m, 2-wire
Q60SG: 10' / 3 m, 3-wire | | Focusing | Not applicable | | Weight | 700SG: 1.1 lb / 0.5 kg
Q60SG: 3.2 lb / 1.5 kg
AL415: 0.6 lb / 482 g | | Dimensions | 700SG: 3.75 x 3.75 x 6.5" / 9.9 x 9.9 x 16.8 cm
Q60SG: 10 x 6 x 10" / 25 x 15 x 25 cm
AL415: 2.75 x 2.75 x 4.25" / 7 x 7 x 10.8 cm
Kit in Case: 8.5 x 31 x 14" / 21.6 x 79 x 35.5 cm | | Kit Weight | 32 lb / 14.5 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 32.0 x 15.0 x 14.0" |
