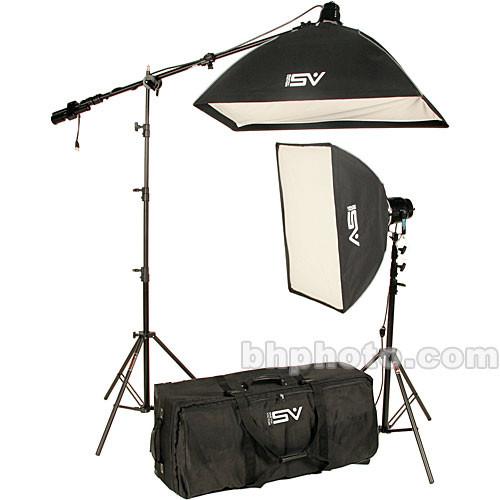

User Manual for Smith-Victor K74 Pro Portraiture Kit Click to enlarge the picture
Contents of the user manual for the Smith-Victor K74 Pro Portraiture Kit
- Product category: Tungsten Lights Smith-Victor
- Brand: Smith-Victor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smith-Victor Tungsten Lights
|
User manual for the Smith-Victor K74 Pro Portraiture Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smith-Victor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smith-Victor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smith-Victor product will considerably shorten its lifespan!
|
Product description The Smith Victor K74 Pro Portraiture Kit is based around the 720SG and 765UM lights. The kit is rounded out with a 36 x 36" and a 12 x 36" softbox with mounting brackets, aluminum light stands, a boom arm, bulbs, and a wheeled kit case. The 720SG 1000-watt focusing flood light has a beam angle that adjusts from 34-40° with the conveniently mounted rear focusing lever. It accepts frosted or clear bulbs. The 765UM is one of Smith Victor's most popular and affordable open face quartz halogen fixtures. This light is suitable for extended duration use and accepts 600-watt or 250-watt quartz halogen bulbs. An integral umbrella port and universal 3/8 to 5/8" stand mount makes this a perfect light for photo/video portraits, galleries, or store windows. Although equipped for 120 volt use, this 1600-watt kit is suitable for use with 220-230 AC voltage with the appropriate bulbs and plug adapters, available separately. - Two Softboxes
- Heat resistant, one for a main light, one for an edge, or hair light, the softboxes mount easily to the adapter rings provided.
- Raven Aluminum Stands
- Smith Victor's own black light stands are included; they rise to maximum height of 13'.
- Medium Duty Boom Arm
- Mount a light with any or none of the accessories, and extend the light over the subject.
- Multi-Wattage, Multi-Voltage
- Other bulbs are available separately to increase the versatility of this kit.
- Wheeled Case
- This soft kit case has a canvas shell, hand and shoulder straps, and movable interior dividers.
UPC: 037733008409 In the Box Smith-Victor K74 Pro Portraiture Kit (120V) 720SG 1000W Quartz Focusing Light 765UM 600 Watt Quartz Light (120 V) FBY Lamp - 1000W/120V DYH Lamp - 600 Watts/120 Volts RS13 Heavy Duty Air-cushioned Aluminum Light Stand (13') MB150 2 Section Heavy Duty Boom PL03CS Soft Case 36 x 36" Softbox with Mounting Brackets 12 x 36" Softbox with Mounting Bracket "Imaging With Light" Guidebook Limited 2-Year Warranty on Fixtures Limited 1-Year Warranty on Accessories Limited 30-Day Warranty on Softboxes Table of Contents
|
Upload User Manual
Have you got an user manual for the Smith-Victor K74 Pro Portraiture Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmith-Victor 401443 Specs | Rating | 720SG: 1000 W maximum
765UM: 600 W maximum | | Socket (Lampholder) | 720SG: Double-ended, recessed, single-contact R7S
765UM: Miniature 2-pin G5.3 | | Lens (Condenser) | Not applicable | | Reflector (Mirror) | Pebble-finish spun aluminum | | Mounting | Universal 3/8-5/8" | | Yoke | 720SG: Twin flat aluminum forks
765UM: Not applicable | | Cable | 10' / 3 m, 3-wire grounded with in-line switch | | Focusing | Not applicable | | Weight | 720SG: 2.8 lb / 1.3 kg
765UM: 1.12 lb / 0.5 kg | | Dimensions | 720SG: 8.5 x 8.25 x 10.5" / 21.8 x 21 x 26.9 cm
765UM: 6.75 x 6 x 6.25" / 17.5 x 15.2 x 16 cm
Kit in Case: 18 x 44 x 13" / 45.7 x 112 x 33 cm | | Kit Weight | 40 lb / 18.2 kg | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 46.1 x 19.3 x 12.9" |
