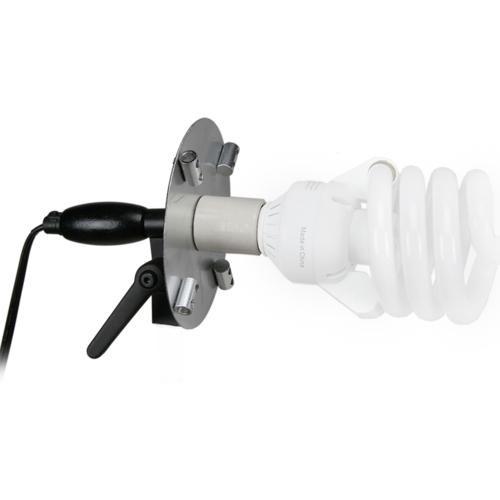

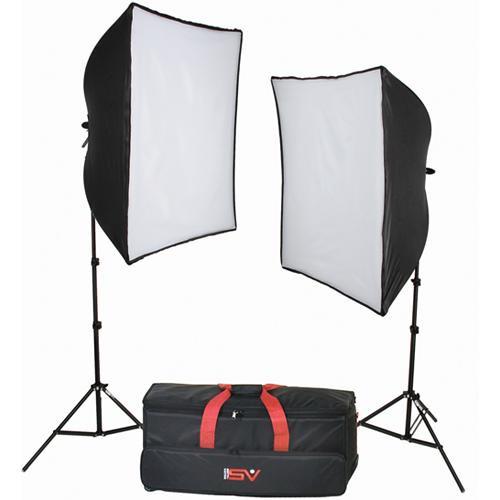

Product description The Smith-Victor KSB-1000F 2-Light Fluorescent Economy SoftBox Light Kit is an economical way to provide intense, soft, fluorescent light. Use it for portraits or still-life setups. It includes two 75-watt spiral screw-in fluorescent bulbs, two 24 x 32" softboxes with adapters, two Raven black aluminum light stands that rise to a maximum height of 8', and a wheeled soft kit case. - SBL-1 Fixtures
-
- Each fixture has an insulated 160° tilt-handle, ratchet locking system, and 5/8" Baby mount
- Ceramic socket that accepts tungsten a flood light bulb, screw-in fluorescent bulb, or a screw-in slave flash
- Fluorescent Bulbs
- Each 5200K bulb is 75 watts, with a standard E26 Edison screw base
- Softboxes
- Elastic collar on rear of each softbox helps prevent light leaks
- Light Stands
- Aluminum, 4 sections, 3 risers

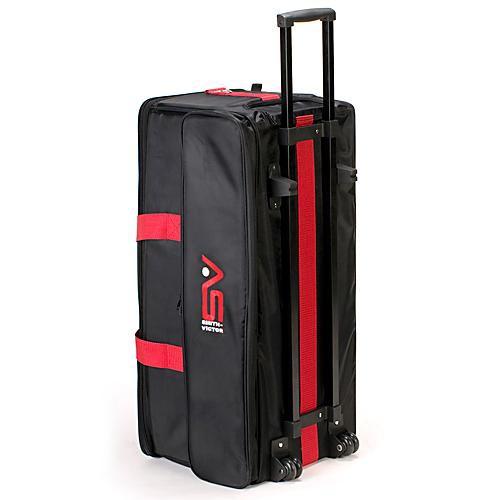

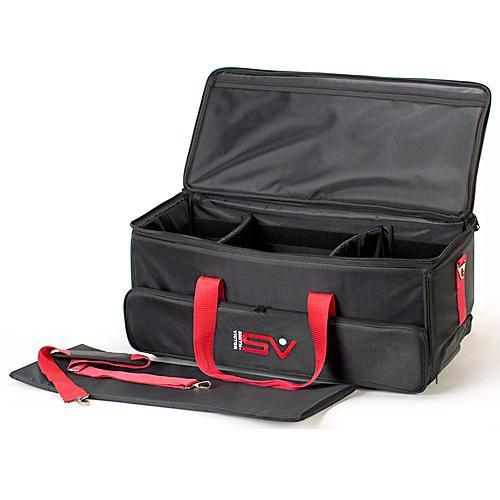

- Kit Case
-
- Double-decked: the lower deck is accessed by a zippered flap
on the end of the case - Fully padded, with tie-down straps in each compartment
- Net pocket in underside of lid
- 2" wheels and a luggage-style pull-out handle
- Canvas handles and a shoulder strap
UPC: 037733012048 In the Box Smith-Victor KSB-1000F 2-Light Fluorescent Economy SoftBox Light Kit (120 VAC) 2 x SBL-2432 500 Watt Economy SoftBox Light - 24 x 32" (120V AC) 2 x FL75 75Watt Spiral Fluorescent Lamp 2 x RS8 Aluminum Light Stand (8') SoftCase with Wheels "Imaging with Light" Guide Limited 1-Year Warranty on Fixtures and Stands Limited 30-Day Warranty on Softboxes Table of Contents
|
Upload User Manual
Have you got an user manual for the Smith-Victor KSB-1000F 2-Light Fluorescent Economy SoftBox Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmith-Victor 408100 Specs | Rating | Each Fixture: 55 W, 110-120 VAC | | Socket (Lampholder) | E26 Edison screw | | Lens (Condenser) | Not Applicable | | Reflector (Mirror) | Silver softbox interior | | Mounting | 5/8" Baby | | Yoke | Not Applicable | | Cable | 10' / 3 m, 2-wire, 120 VAC Edison plug | | Focusing | Not Applicable | | Weight | Each Fixture: 5 lb / 2.3 kg | | Dimensions | Each Fixture: Not Specified by Manufacturer
Each Softbox: 24 x 32 x 17" / 61 x 81 x 43 cm
Kit in Case: 29 x 13 x 9" / 74 x 33 x 23 cm | | Kit Weight | 34 lb / 15.4 kg | | | | Package Weight | 34.0 lb | | Box Dimensions (LxWxH) | 32.0 x 14.7 x 14.1" |
