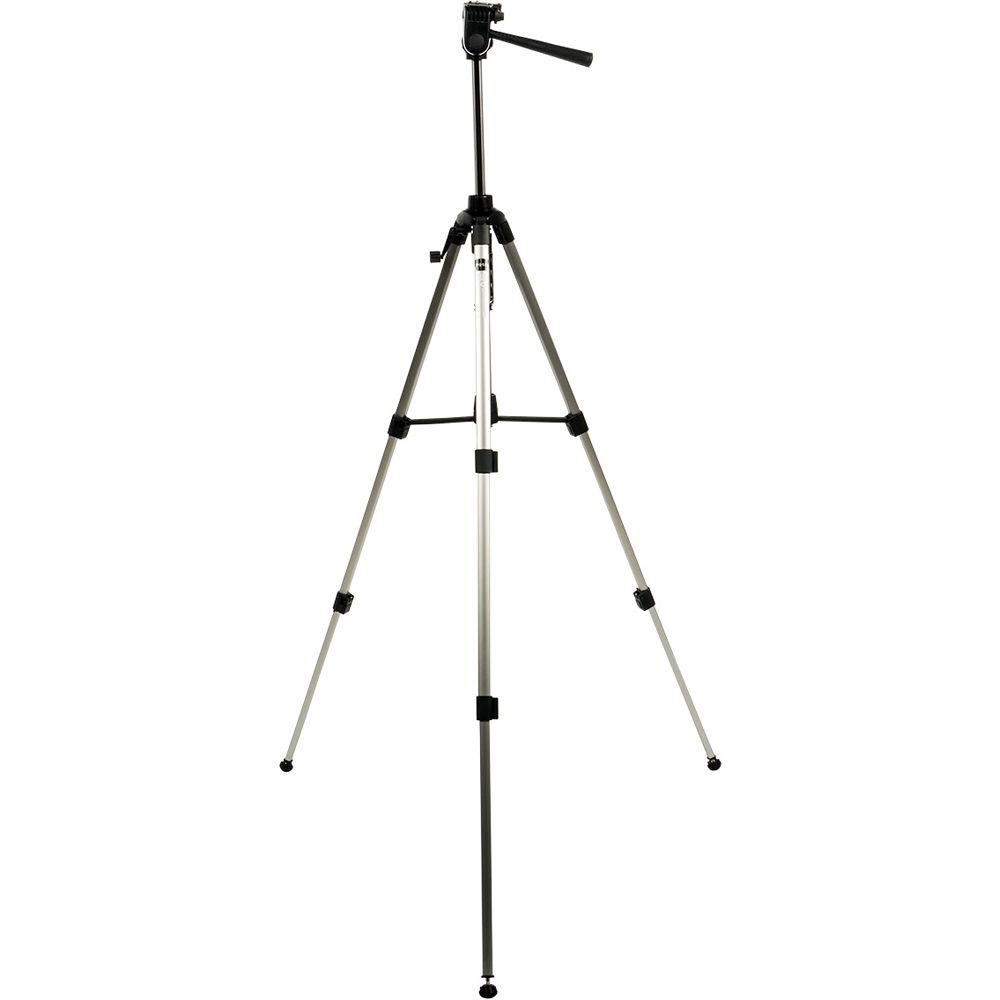

Product description Time-Lapse Tips and Tools Read More This Smith-Victor P910 Pinnacle Tripod supports up to 6.0 lb, measures 24.5" when folded and includes a three-way, pan-and-tilt head. Its 3-section legs each feature flip locks for fast deployment, and can be positioned for a minimum height of 23.5" to a maximum height of 52.0", or 59.7" with its column fully raised. The column utilizes a geared movement for precise height adjustments and an integrated center brace allows the legs to be spread simultaneously as well as uniformly. The center brace helps to hold the legs in place, which include rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil.

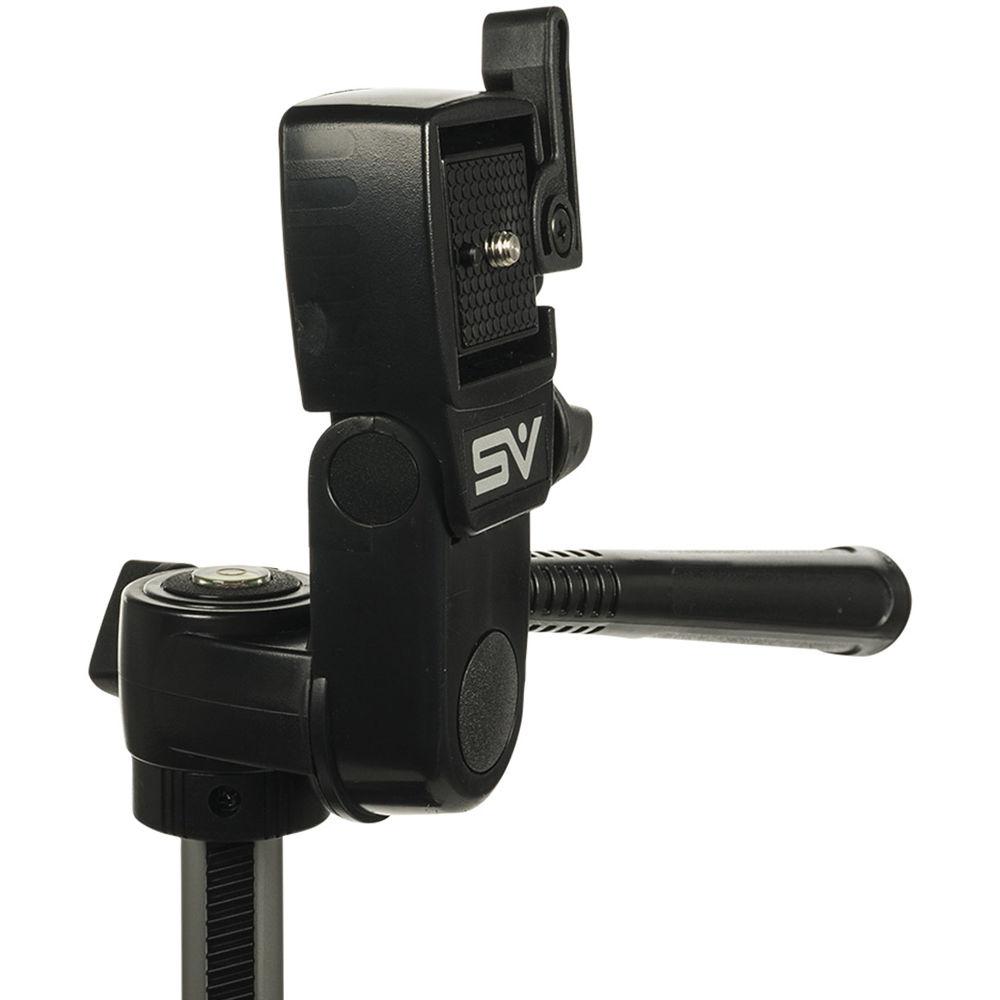

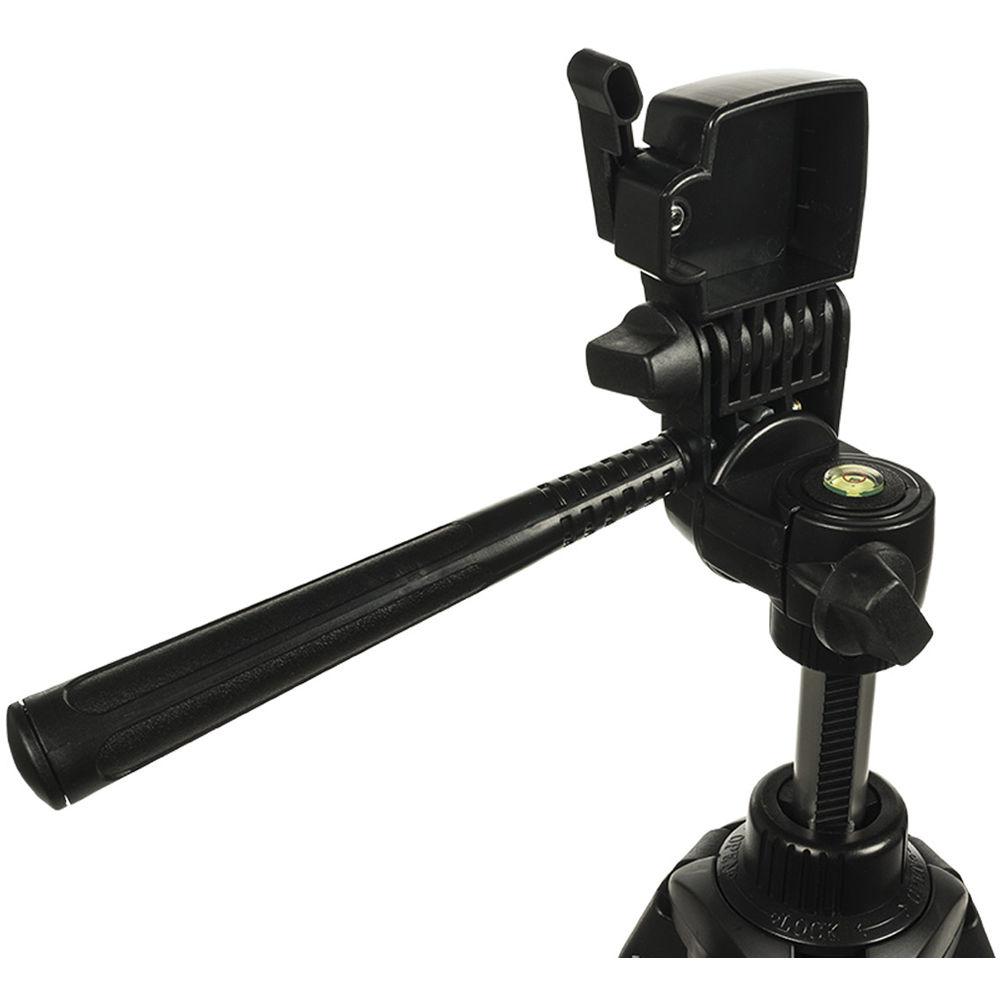

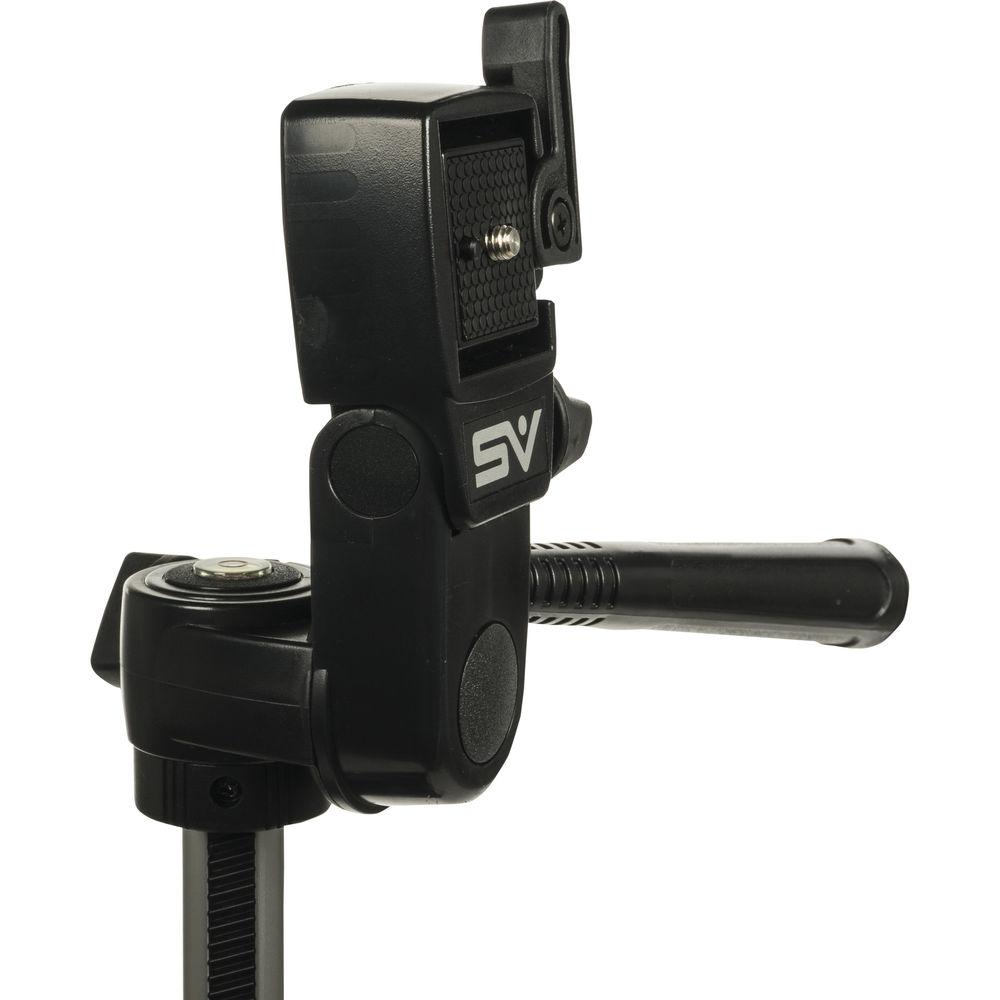

Cameras, sport optics, or camcorders that are compatible with a 1/4"-20 mount can be connected to the quick release plate, which is secured to the tripod's pan-and-tilt head using a quick release cam lock. The head can be rotated 360°, tilted 60° backwards, 90° forwards, or 90° sideways for portrait orientation. Both the 360° rotation as well as the backward or forward tilt movements function simultaneously and can be set in place using the pan bar's integrated twist lock. When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured. - Use and Handling
-
- Supports up to 6.0 lb

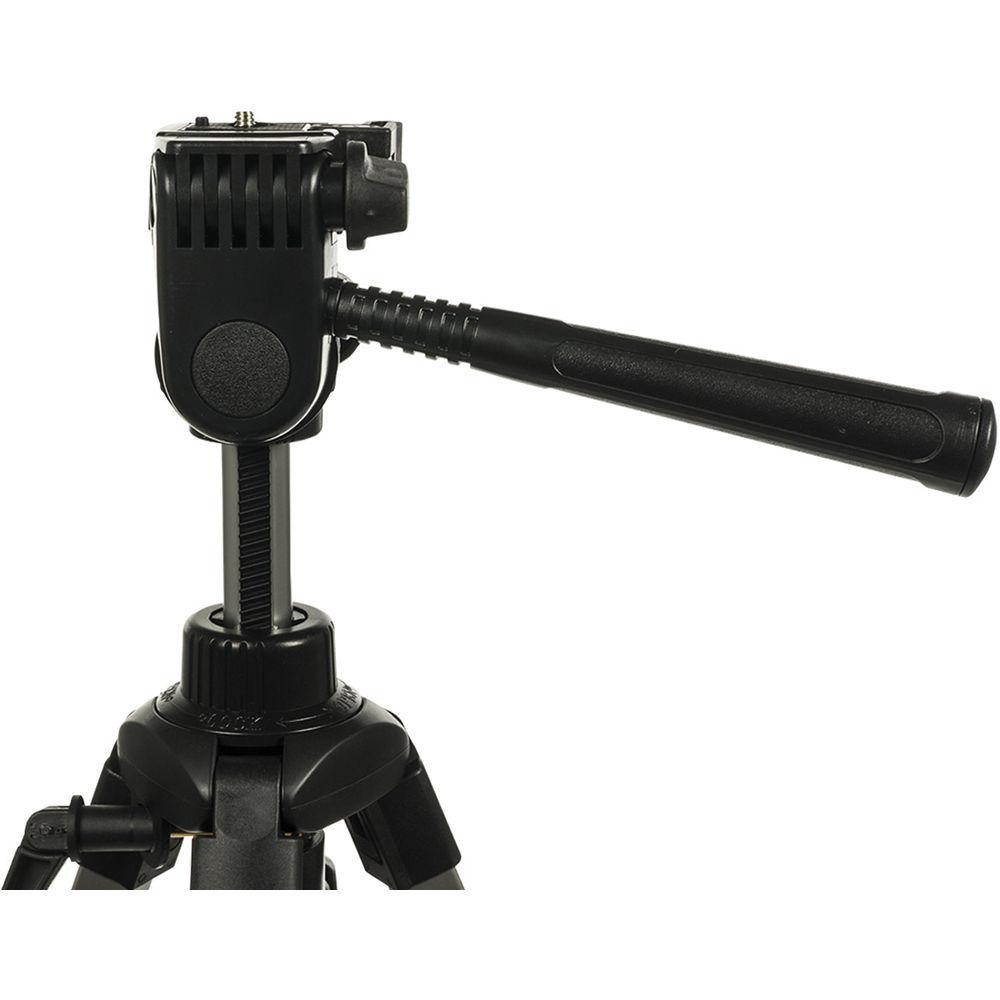

- Geared center column with rotating handle for precise positioning
- Can be set for a minimum height of 23.5" to a maximum height of 52.0", or 59.7" with column fully raised
- Legs each feature 3 sections, flip locks for fast deployment

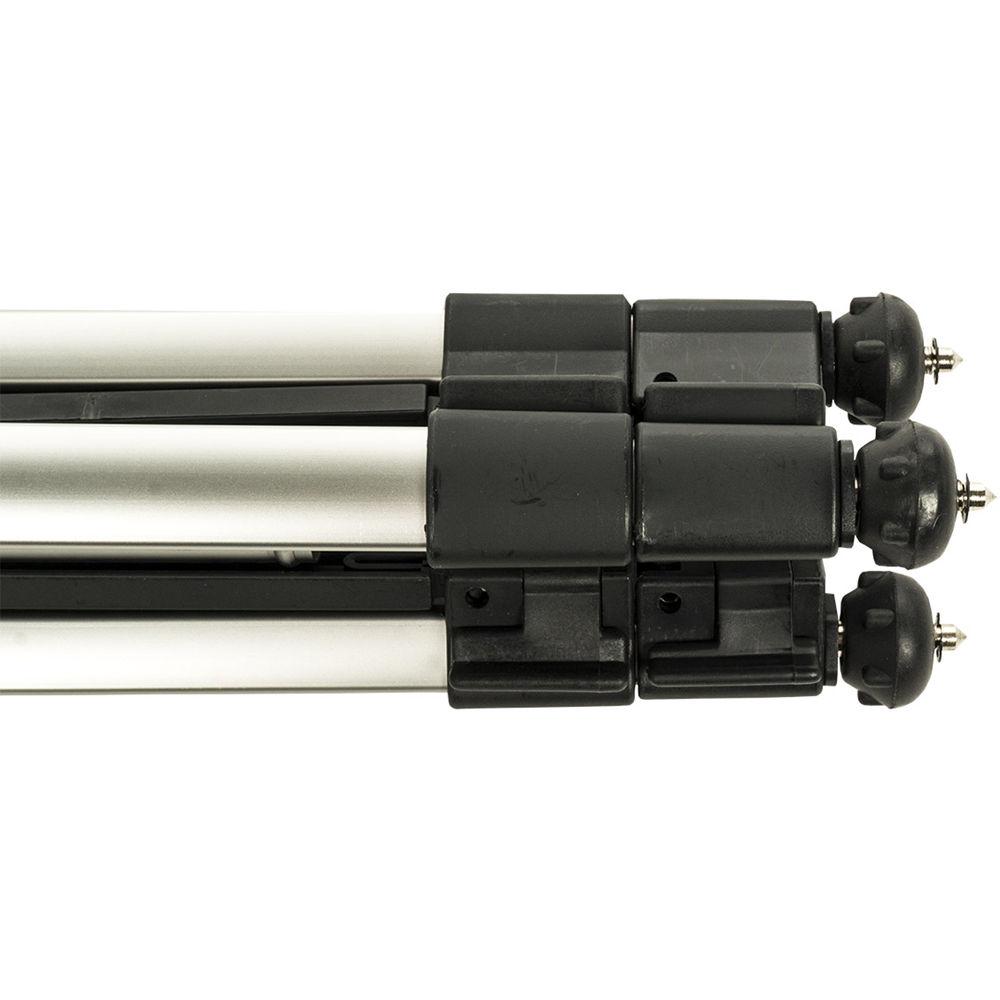

- Rubber feet with twist-out, metal spikes to further enhance stability on a wide variety of surfaces, including soft and uneven soil
- Three-way, pan-and-tilt head can be rotated 360°, and tilted 60° backwards, 90° forwards, as well as 90° sideways for portrait orientation
- Head rotation, as well as backwards-and-forwards-tilt movements function simultaneously
- When changing from a landscape to portrait orientation, the sideways tilt can be independently adjusted and secured
- Built-in tripod bubble level

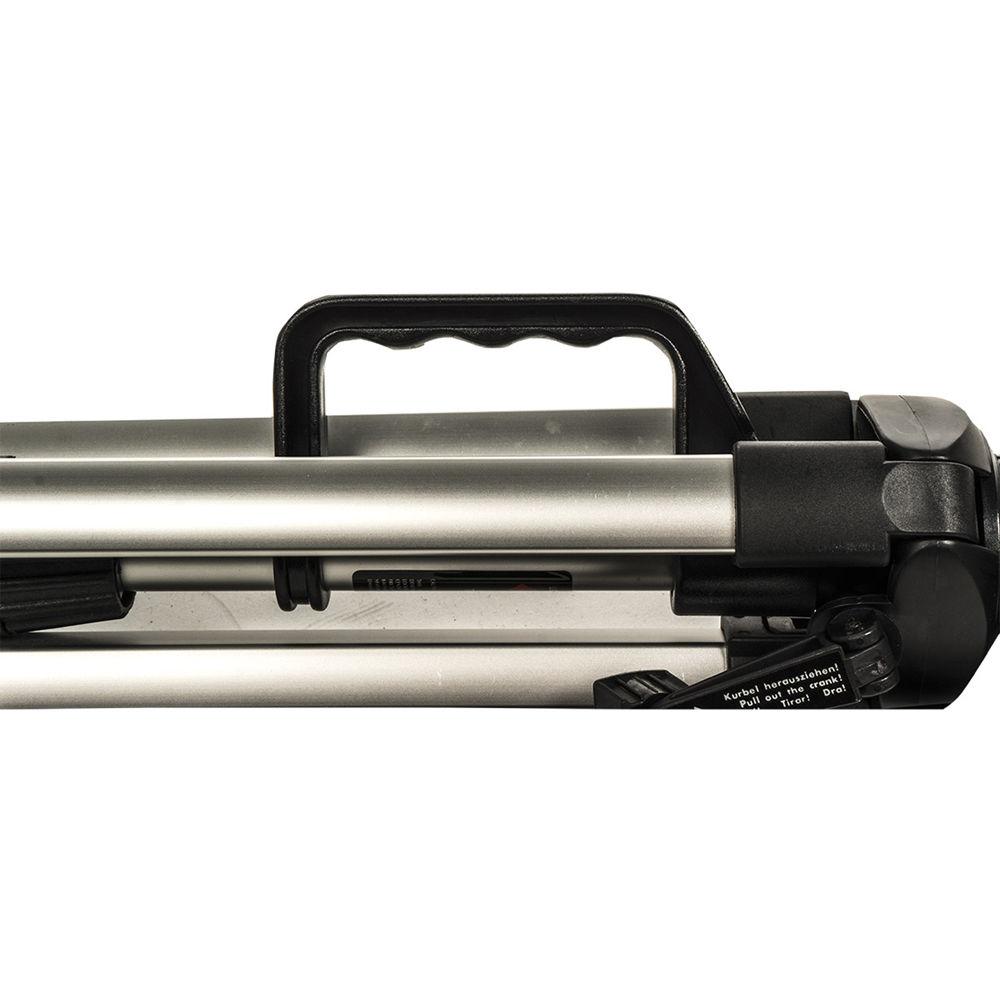

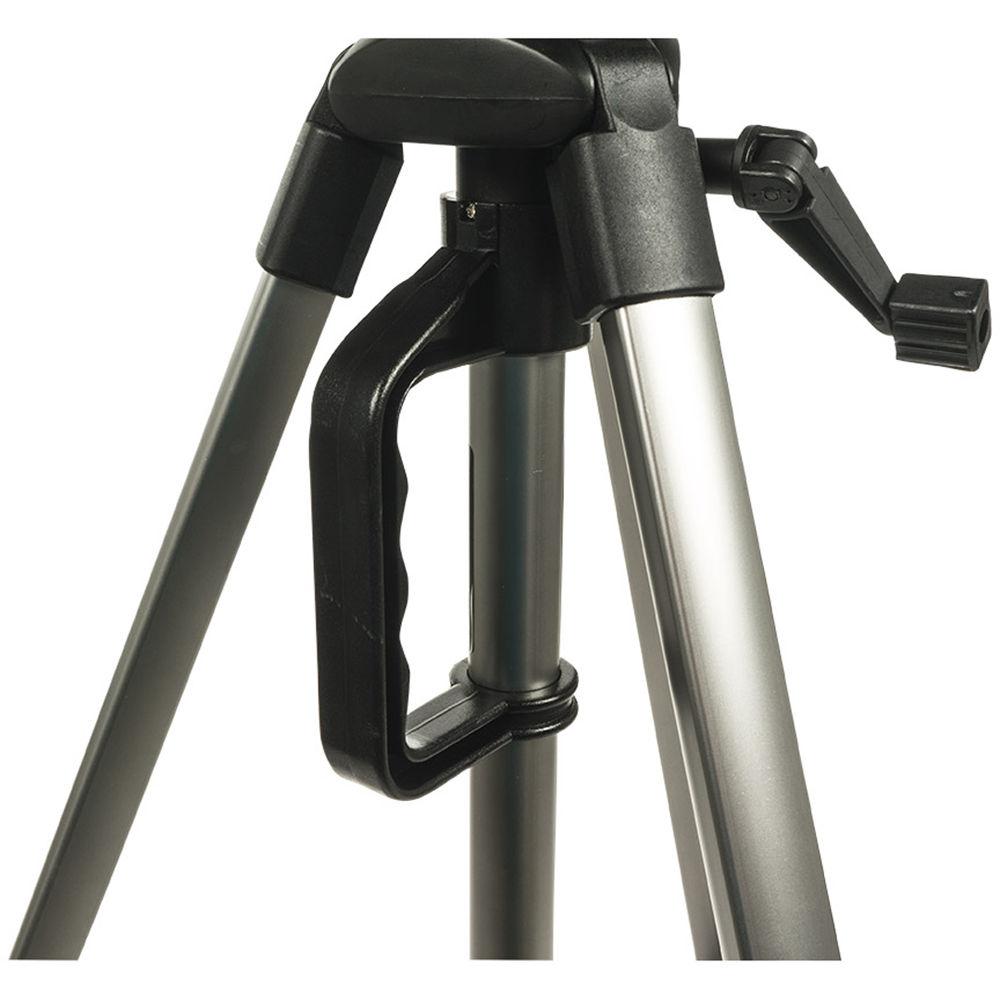

- Built-in carry handle on center column

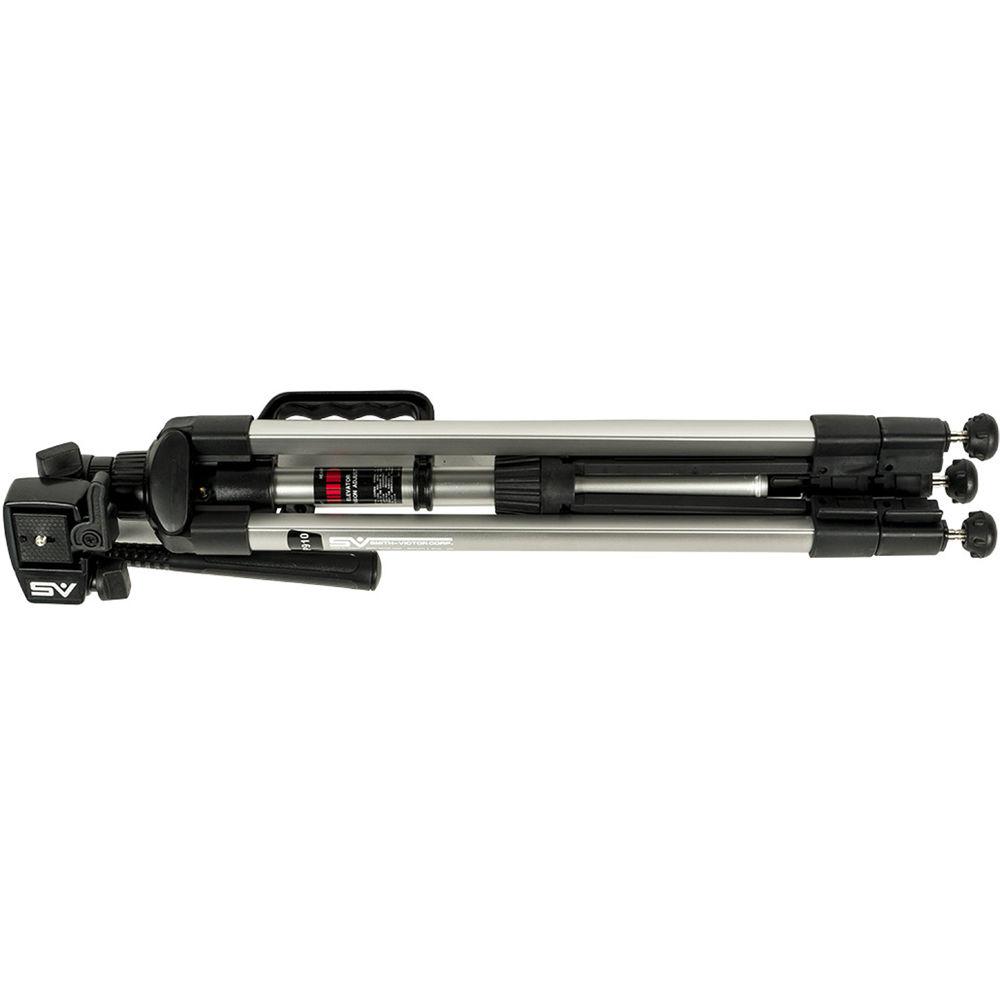

- Weighs 3.5 lb, measures 24.5" when folded
- Construction Details
-
- Aluminum-alloy legs and three-way, pan-and-tilt head
- Quick release plate with 1/4"-20 mount with rubberized, anti-slip surface and anti-twist index pin
In the Box Smith-Victor P910 Pinnacle Tripod with 3-Way, Pan-and-Tilt Head Quick Release Plate Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smith-Victor P910 Pinnacle Tripod with 3-Way, Pan-and-Tilt Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmith-Victor P910 Specs | Head Type | Pan & Tilt Head | Camera Mounting Screw | 1/4"-20 Male | | Load Capacity | 6 lb / 2.7 kg | Maximum Working Height | 59.7" / 151.6 cm | Max Height without Center Column | 52" / 132.1 cm | Minimum Working Height | 23.5" / 59.7 cm | Folded Length | 24.5" / 62.2 cm | Materials | Aluminum Alloy | Weight | 3.5 lb / 1.6 kg | | Leg Lock Type | Flip Lock | Independent Leg Spread | No | Leg Sections | 3 | Bubble Level | Yes | Feet Features | Retractable, Spiked | | Center Column Features | Center Brace | Center Column Sections | 1 | Center Column Extension Type | Geared | Lateral / 90-Degree Center Column | No | | Package Weight | 3.55 lb | Box Dimensions (LxWxH) | 25.2 x 4.55 x 4.55" |
