User Manual for Smith-Victor SmartLED Spectrum On-Camera Bi-Color LED Light with RGB Click to enlarge the picture
Contents of the user manual for the Smith-Victor SmartLED Spectrum On-Camera Bi-Color LED
- Product category: On Camera Lights Smith-Victor
- Brand: Smith-Victor
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smith-Victor On Camera Lights
 |
User manual for the Smith-Victor SmartLED Spectrum On-Camera Bi-Color LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smith-Victor product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smith-Victor user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smith-Victor product will considerably shorten its lifespan!
|
Product description The Smith Victor SmartLED Spectrum On-Camera Bi-Color LED Light with RGB provides a wide output spread. It features a mix of tungsten, daylight, and RGB LEDs that enable the fixture's output to vary between tungsten and daylight, as well as produce 200 different colored outputs when in RGB mode. It features a single control knob with selection buttons on the back to select and control the fixture's output.

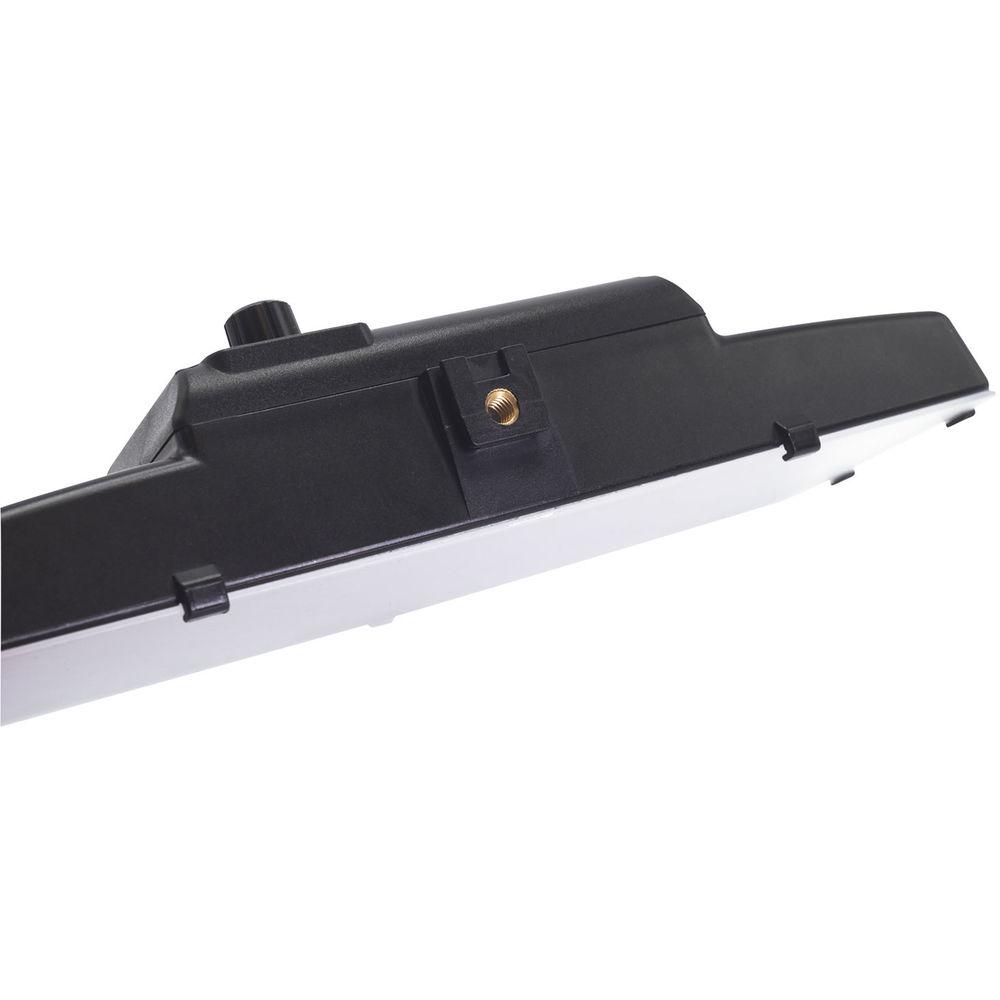

The control knob allows you to vary the color of the output from tungsten to daylight, or adjust hue and saturation in RGB mode. It also allows you to dim the output from 100% brightness down to 20%. Pushing the control knob acts as an on off switch. Included with the SmartLED Spectrum is a removable diffusion panel. You can power the fixture via the included L-series battery or included AC power supply. On the bottom of the light is a 1/4"-20 threaded mounting hole that allows you to mount the light to optional articulating arms or the included cold shoe tilt adapter. - The output can be dimmed from 100 to 20%
- The 200-step RGB mode enables 0 to 100% saturation control

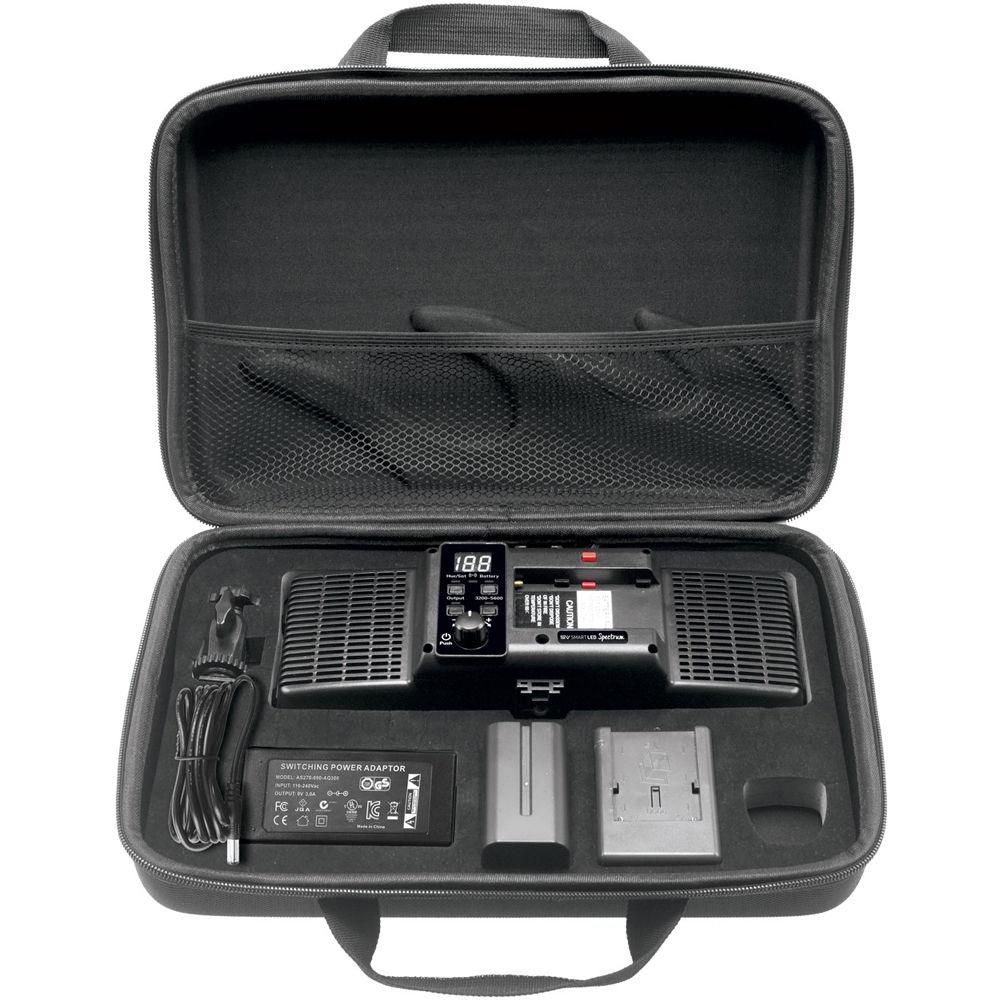

UPC: 037733011386 In the Box Smith-Victor SmartLED Spectrum On-Camera Bi-Color LED Light with RGB Diffusion Cover AC Adapter Tilting Cold Shoe Adapter L-Series Battery Battery Charger Carry Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smith-Victor SmartLED Spectrum On-Camera Bi-Color LED Light with RGB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmith-Victor SmartLED Spectrum Specs | | | Color Temperature | 3200 to 5500K | | Color Accuracy Standard | CRI 95 | | Dimming | Yes, 20 to 100% | | Display | LED | | Number of LEDs | 139 (Tungsten)
139 (Daylight)
32 (RGB) | | | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz at 3 A | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 7.4 to 9 VDC at 3 A | | Power Input Connector | Barrel / Coax | | Power Source | AC Adapter, External Battery | | | | Wireless Protocol | Bluetooth (Unspecified Type) | | | | Mount Type | 1/4"-20 Female | | Dimensions | 10.2 x 2.5 x 3.9" / 25.9 x 6.3 x 9.9 cm | | Weight | 0.9 lb / 0.41 kg | | | | Package Weight | 3.255 lb | | Box Dimensions (LxWxH) | 14.0 x 9.5 x 3.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 25 owners. Add your rating and experience with the product.
