User Manual for Snypex 8x32 HD Profinder Binocular Click to enlarge the picture
Contents of the user manual for the Snypex 8x32 HD Profinder Binocular
- Product category: Binoculars Snypex
- Brand: Snypex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Snypex Binoculars
 |
User manual for the Snypex 8x32 HD Profinder Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Snypex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Snypex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Snypex product will considerably shorten its lifespan!
|

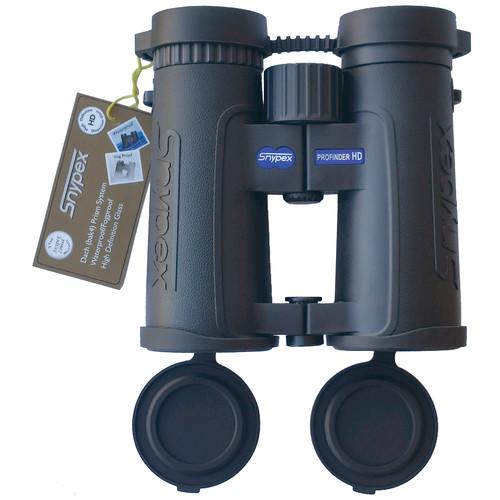

Product description The B&H Binocular Buying Guide Read More The 8x32 HD Profinder Binocular from Snypex combines high definition glass optics and phase corrected BAK4 Roof prisms to deliver bright and clear images with an extended angle of view. The optical elements are fully multicoated to provide high transmission of light and feature a special coating that repels water from optical surfaces. With an 8x magnification and 32mm objectives, you obtain an optimal tradeoff between notable magnification, insignificant image jitter due to unsteady hands and a compact form factor. You can easily spot your targets with a wide 6.8° angular field of view and quickly bring them into focus with a large center wheel. In addition to observing distant scenes, birds and game, the minimum focus of 4' allows you to study in detail close objects like animal footprints, marks or landscape features. The binocular also features a 4mm exit pupil, a 15mm eye relief, and a interpupillary and a diopter adjustments.
The binocular also features a lightweight and durable fiberglass reinforced polycarbonate body with a lightly contoured rubber armoring that provides both external protection and a secure non-slip grip. With the housing that is o-ring sealed waterproof submersible to 3', you can use it in a wide range of outdoor activities including boating and rafting. It is also nitrogen filled fogproof and will not fog-up because of a high humidity or rapidly changing temperatures. To ensure a non-slip grip during focusing even while wearing gloves or in bad weather, the center focus knob is wide and knurled. The binocular is mountable on a tripod with an optional adapter and has rubber twist-up eyecaps. Also included are a rainguard, tethered lens covers, a semi-rigid carry case, and a lens cloth. - Optical Performance
-
- Magnification: 8x
- Fully multicoated optics
- Phase corrected Roof prisms increase clarity, resolution and a field of view
- A special layer of coating repels water from optical surfaces
- Angular field of view: 6.8°
- Interpupillary adjustment
- Diopter adjustment
- Construction Details
-
- Fiberglass reinforced polycarbonate body and chassis
- Rubber armoring provides shock resistance, comfort and a secure grip
- Oversized center focus knob allows for an easy focusing with gloves and in adverse weather
- Waterproof submersible to 3' for 15 minutes
- Nitrogen filled fogproof
- Tripod mountable with optional adapter
- Twist-up rubber eyecups
- Tethered objective covers
UPC: 854725004108 In the Box Snypex 8x32 HD Profinder Binocular - Lens Cloth
- Semi-Rigid Carry Case
- Rainguard
- 2 x Tethered Lens Covers
- Limited 3-Year Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Snypex 8x32 HD Profinder Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSnypex 9832-HD Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 32 mm | | Angle of View | 6.8° (Actual) | | Field of View | 357.0' @ 1000 yd / 119.0 m @ 1000 m | | Minimum Focus Distance | 25.1' / 7.7 m | | Exit Pupil Diameter | 4 mm | | Eye Relief | 15 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 4.7 x 4.3 x 1.6" / 12.0 x 11.0 x 4.2 cm | | Weight | 13.4 oz / 379.9 g | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 6.3 x 6.2 x 2.4" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
