User Manual for Snypex 8x42 Knight D-ED Binocular Click to enlarge the picture
Contents of the user manual for the Snypex 8x42 Knight D-ED Binocular
- Product category: Binoculars Snypex
- Brand: Snypex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Snypex Binoculars
 |
User manual for the Snypex 8x42 Knight D-ED Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Snypex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Snypex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Snypex product will considerably shorten its lifespan!
|

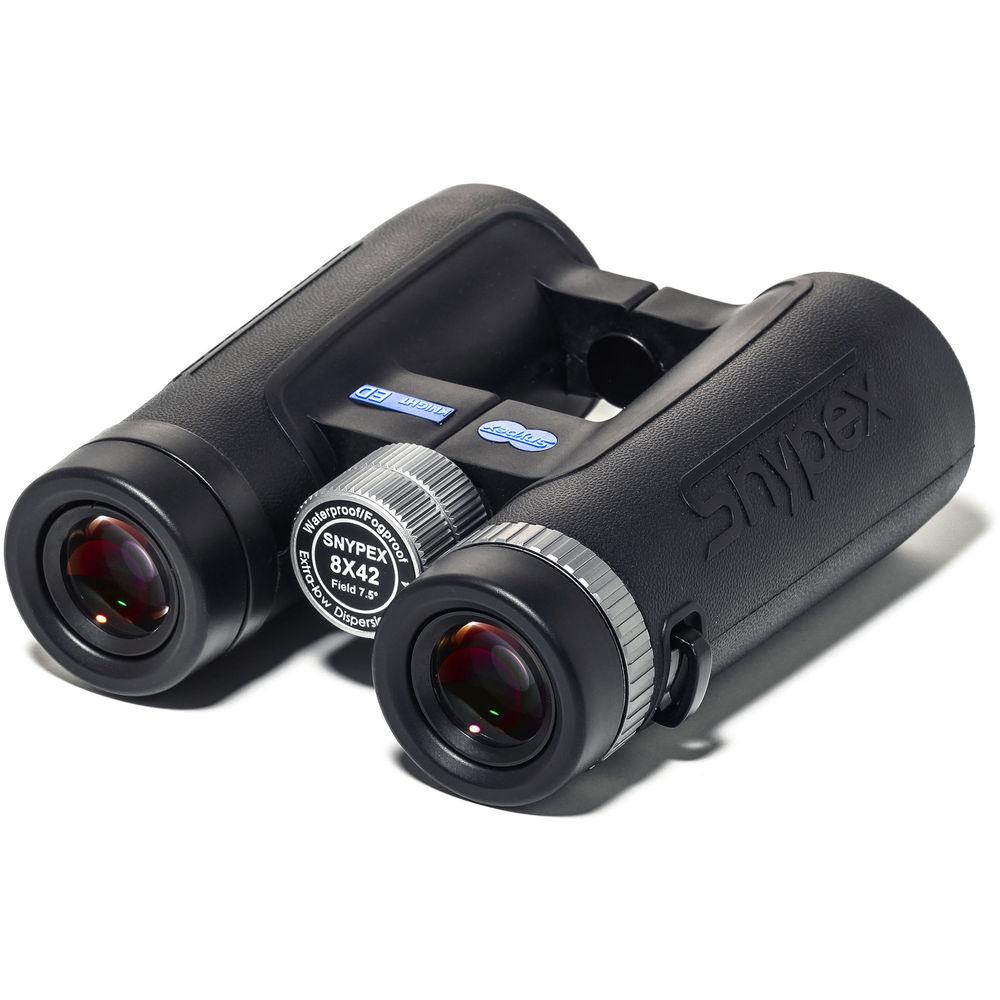

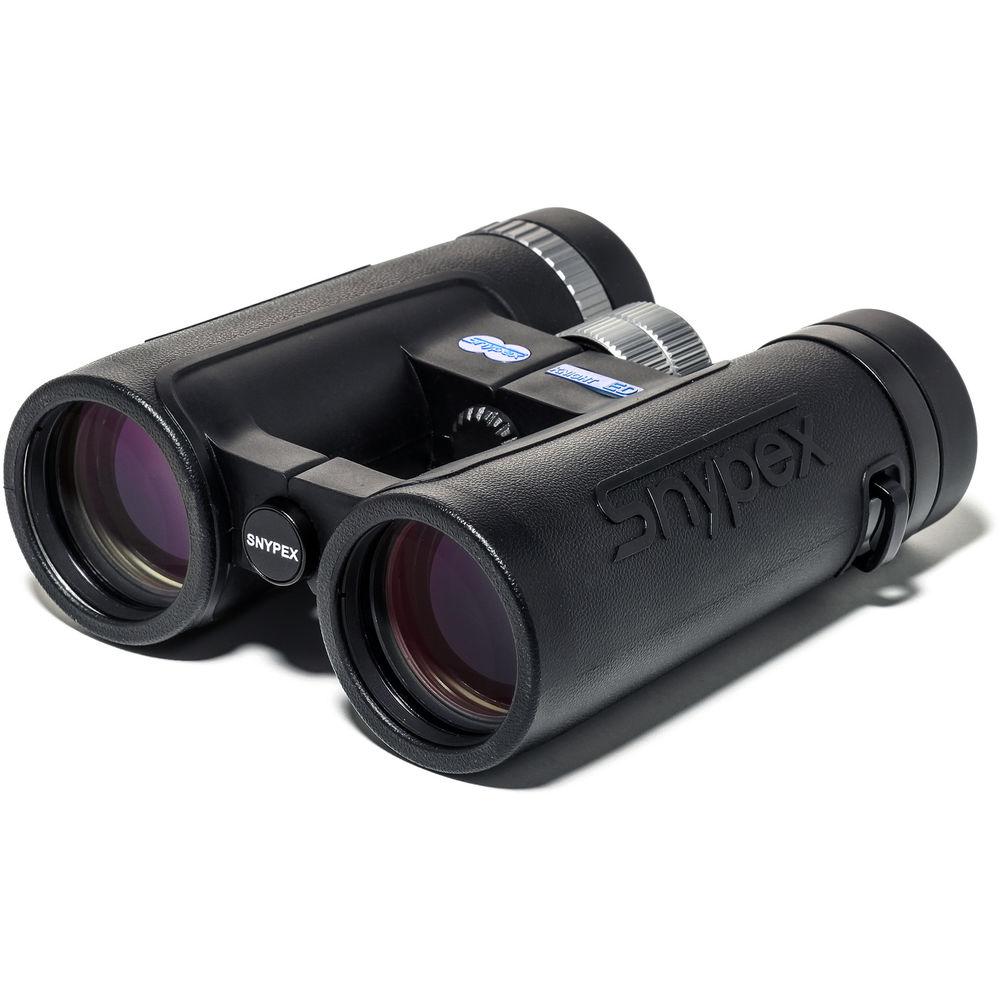

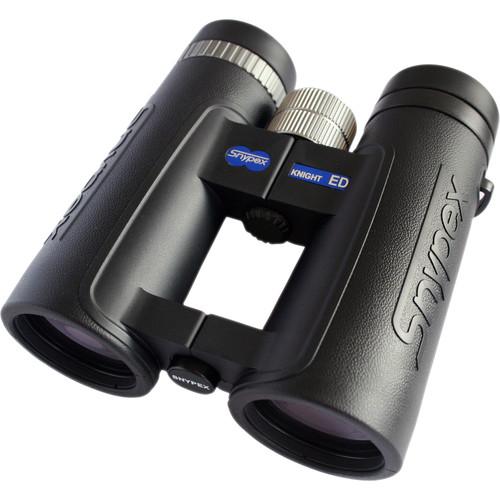

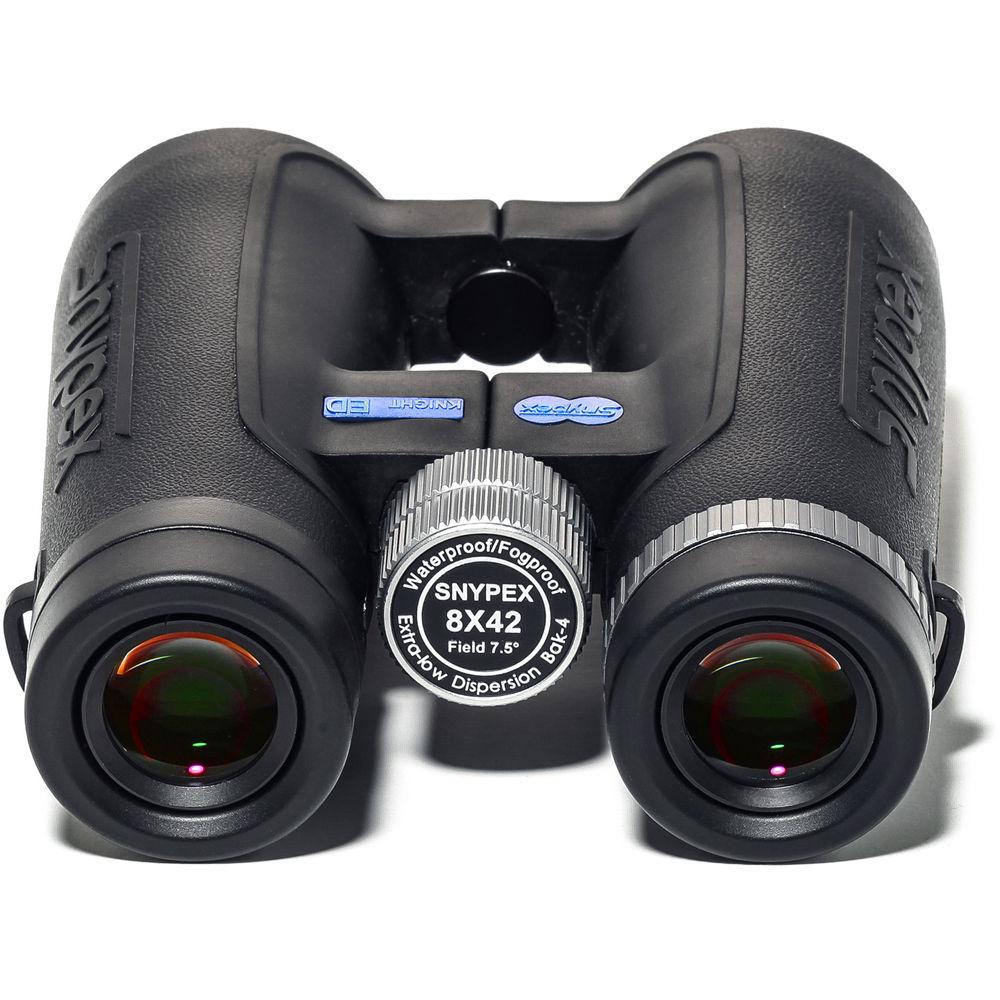

Product description The B&H Binocular Buying Guide Read More zfrzryeuxvubsxzuexqyrzazdfq Snypex improved on the design of their top-tier line to produce this 8x42 Knight D-ED Binocular. They upgraded their eyepiece lens configuration to 7-elements in five groups, and the objective to 5-elements in four groups to improve the optical quality and overall image brightness. Complementing this improvement is the use of fully multi-coated extra low-dispersion glass, and dielectric-coated phase-correcting BAK4 prisms. These technologies work together to produce bright and clear images with accurate color rendition across the entire field of view without distortion. This iteration is made with a versatile 8x magnification which provides a wide 60° apparent angle of view, with reduced visible hand-shake versus its higher-power version, while preserving the short 5.6' close focus distance.The Knight's open-bridge design helps to reduce weight without sacrificing strength, and provides a large surface area to hold, even with the compact housing. Rubber armoring gives protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight magnesium alloy housing is nitrogen-filled and O-ring sealed for fogproof performance and makes it submersible. Twist-up eyecups provide a custom-fit eye relief for use with or without eye-wear. - Performance
-
- 8x magnification
- 42mm objective lenses
- Compact BAK4 roof prisms
- Extra low-dispersion glass corrects chromatic and spherical aberrations for color-accurate images without distortion across the field of view
- Fully multi-coated optics increase light transmission, image brightness, and contrast
- Dielectric, phase-corrected prism coatings reduce internal light diffraction while improving contrast and color rendition
- Water-resistant exterior lens coatings helps to keep lenses clear in inclement weather
- Eyepiece optical configuration: 7 elements, 5 groups
- Objective lens configuration: 5 elements, 4 groups
- 393' field of view at 1000 yards
- Wide 60° apparent angle of view
- Long 18.4mm eye relief
- Wide 5.25mm exit pupil
- Use and Handling
-
- Open-bridge/dual hinge configuration reduces weight without sacrificing strength
- Large knurled center focus wheel
- Short 5.6' close focus distance
- Right-eye dioptric correction
- Twist-up eyecups for comfortable use with or without eyewear
- Tripod mountable with optional adapter
- Construction
-
- Bridge design adds more surface area for a secure grip
- Lightweight and durable magnesium alloy chassis
- Slip-resistant and protective rubber armoring
- Nitrogen-filled and O-ring sealed to be water and fogproof
- IP67-rated to be dustproof and submersible
UPC: 854725004306 In the Box Snypex 8x42 Knight D-ED Binocular Lens Cloth Neck Strap Carrying Case with Strap One-Piece Ocular Rainguard 2 x Objective Lens Covers Limited 25-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Snypex 8x42 Knight D-ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSnypex 9842D-ED Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 5.6' / 1.7 m | | Exit Pupil Diameter | 5.25 mm | | Eye Relief | 18.4 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 5.5 x 5.2 x 2.0" / 14.0 x 13.2 x 5.1 cm | | Weight | 26.8 oz / 759.8 g | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 7.8 x 7.7 x 3.1" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
