User Manual for Snypex 8x42 Knight ED Binocular Click to enlarge the picture
Contents of the user manual for the Snypex 8x42 Knight ED Binocular
- Product category: Binoculars Snypex
- Brand: Snypex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Snypex Binoculars
 |
User manual for the Snypex 8x42 Knight ED Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Snypex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Snypex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Snypex product will considerably shorten its lifespan!
|

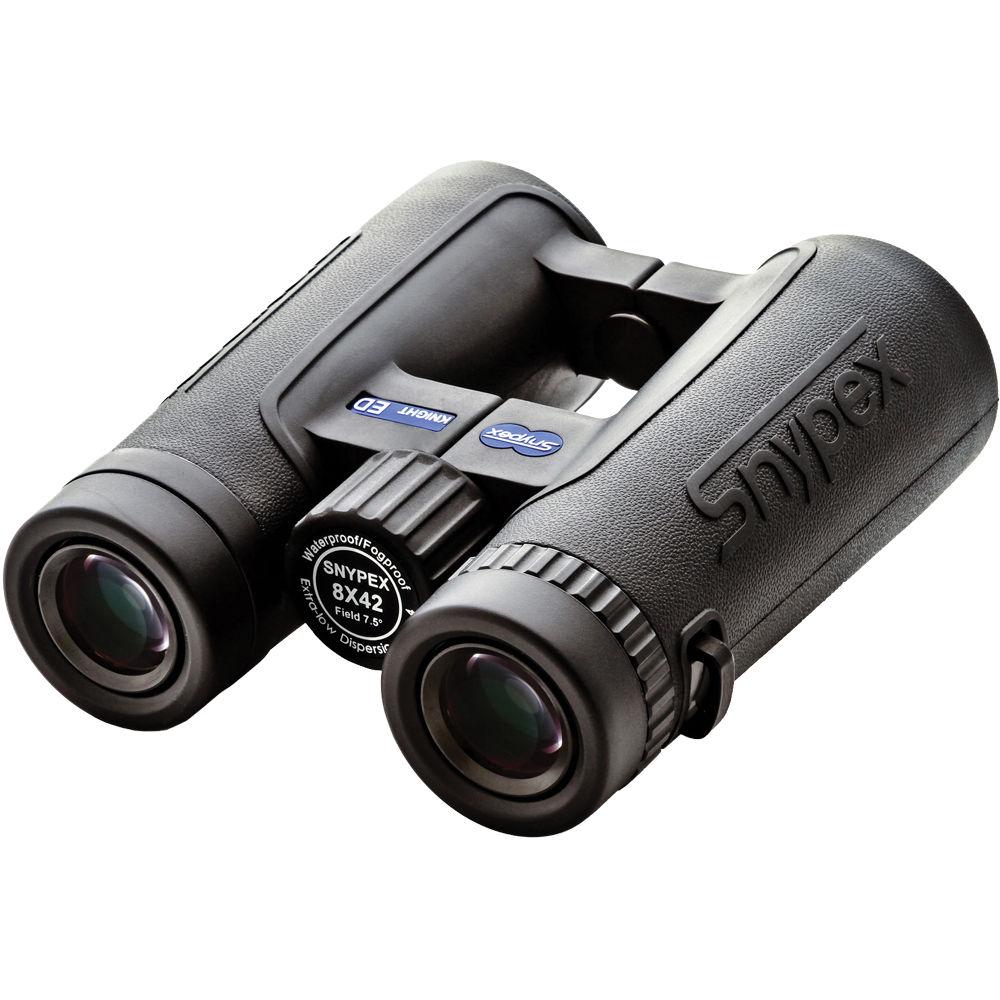

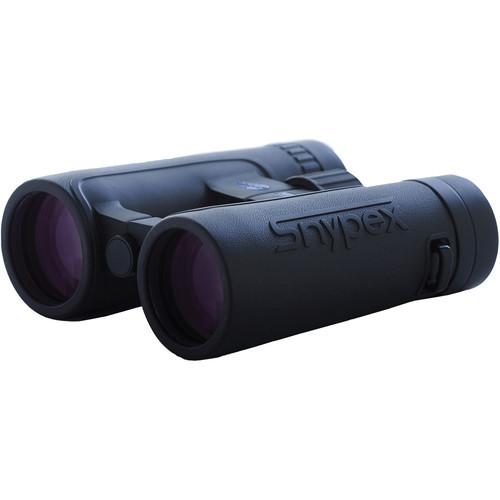

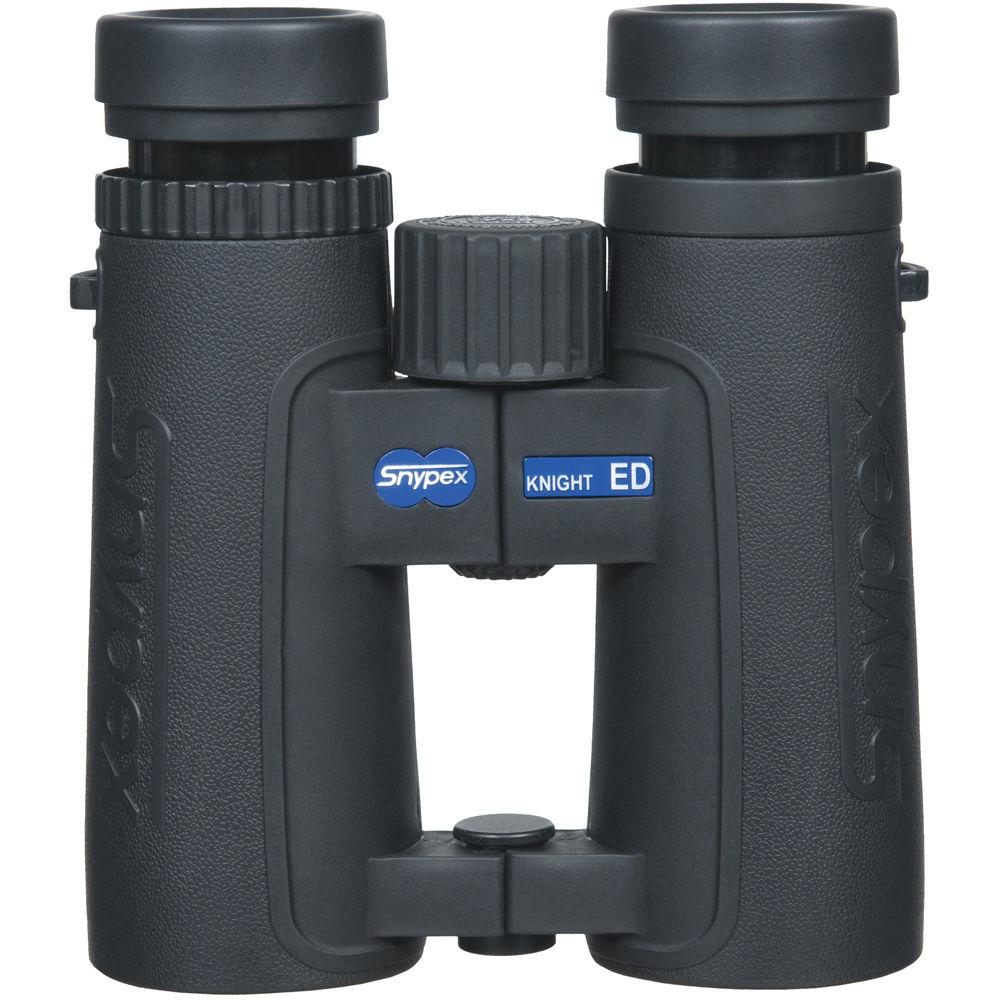

Product description The B&H Binocular Buying Guide Read More The 8x42 Knight ED Binocular from Snypex features Extra-low Dispersion (ED) glass and dielectric-coated phase-corrected BaK4 roof prisms that work together to virtually eliminate chromatic aberration and produces images with true color fidelity across the entire field of view and enhanced contrast. Complementing the glass and prisms are anti-reflection fully multicoated optics that improves light transmission for bright and clear images, with greater low-light performance. The objective lenses are designed in a 3-group/4-element configuration and the eyepiece lenses in a 4-group/5-element configuration to precisely control the light pathThe Knight's open-bridge design helps to reduce weight without sacrificing strength, and provides a large surface area to hold. Rubber armoring helps to give protection from drops and impacts while helping to provide a non-slip grip. Designed for durability, the lightweight magnesium-alloy housing is nitrogen-filled and o-ring sealed for fogproof performance and makes it submersible to 3.3ft for up to 15 minutes. The twist-up eyecups provide a custom-fit eye relief for use with or without eye-wear. - Optical Performance
-
- 8x magnification
- 42mm objective lens diameter
- BaK 4 roof prism optical design
- Apochromatic lenses and extra-low dispersion (ED) glass virtually eliminates chromatic aberration for true color transmission across the entire field of view
- Phase-corrected and dielectric coated BaK4 prisms provide improved light reflection with high-contrast and true color fidelity
- Anti-reflection fully multicoated optics enhances light transmission for brighter views and enhanced low-light performance
- 3-group/4-element objective and 4-group/5-element ocular lenses
- 393ft field of view at 1000yd
- 60° wide-angle apparent field of view
- Use and Handling
-
- Large knurled center focus wheel
- Open-bridge design reduces weight and provides a more comfortable grip
- Twist-up eyecups for use with or without eye-wear
- Right-eye locking diopter adjustment
- 5.6ft close focus distance
- Construction Details
-
- Durable and lightweight magnesium-alloy housing
- Nitrogen-filled and o-ring sealed for water and fogproof performance
- Submersible to 3.3' (1 m) for up to 15 minutes
- Water-repellent lens coatings bead moisture off lenses
- Protective rubberized housing armor
UPC: 854725004030 In the Box Snypex 8x42 Knight ED Binocular Lens Cloth Binocular Strap Hard Case with Strap 2 x Objective Lens Covers One-Piece Ocular Rainguard Limited 5-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 User Manual PDF 10.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Snypex 8x42 Knight ED Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSnypex 9842-ED Specs | Prism Type | Roof | | Magnification | 8 x | | Objective Lens Diameter | 42 mm | | Angle of View | 7.5° (Actual) | | Field of View | 393.7' @ 1000 yd / 131.2 m @ 1000 m | | Minimum Focus Distance | 5.6' / 1.7 m | | Exit Pupil Diameter | 5.3 mm | | Eye Relief | 17.5 mm | | Focus Type | Center | | Dimensions | 5.1 x 5.2 x 2.0" / 13.0 x 13.2 x 5.1 cm | | Weight | 26.8 oz / 759.8 g | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 7.874 x 7.795 x 3.228" |
