User Manual for Snypex Knight PT 72mm f 6.0 ED-APO Photography Spotting Scope Click to enlarge the picture
Contents of the user manual for the Snypex Knight PT 72mm f 6.0
- Product category: Spotting Scopes Snypex
- Brand: Snypex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Snypex Spotting Scopes
 |
User manual for the Snypex Knight PT 72mm f 6.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Snypex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Snypex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Snypex product will considerably shorten its lifespan!
|

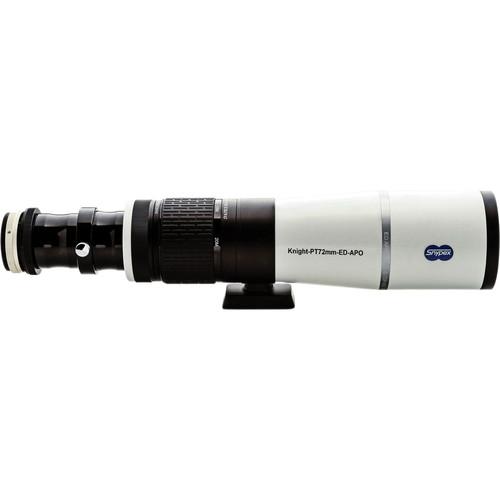

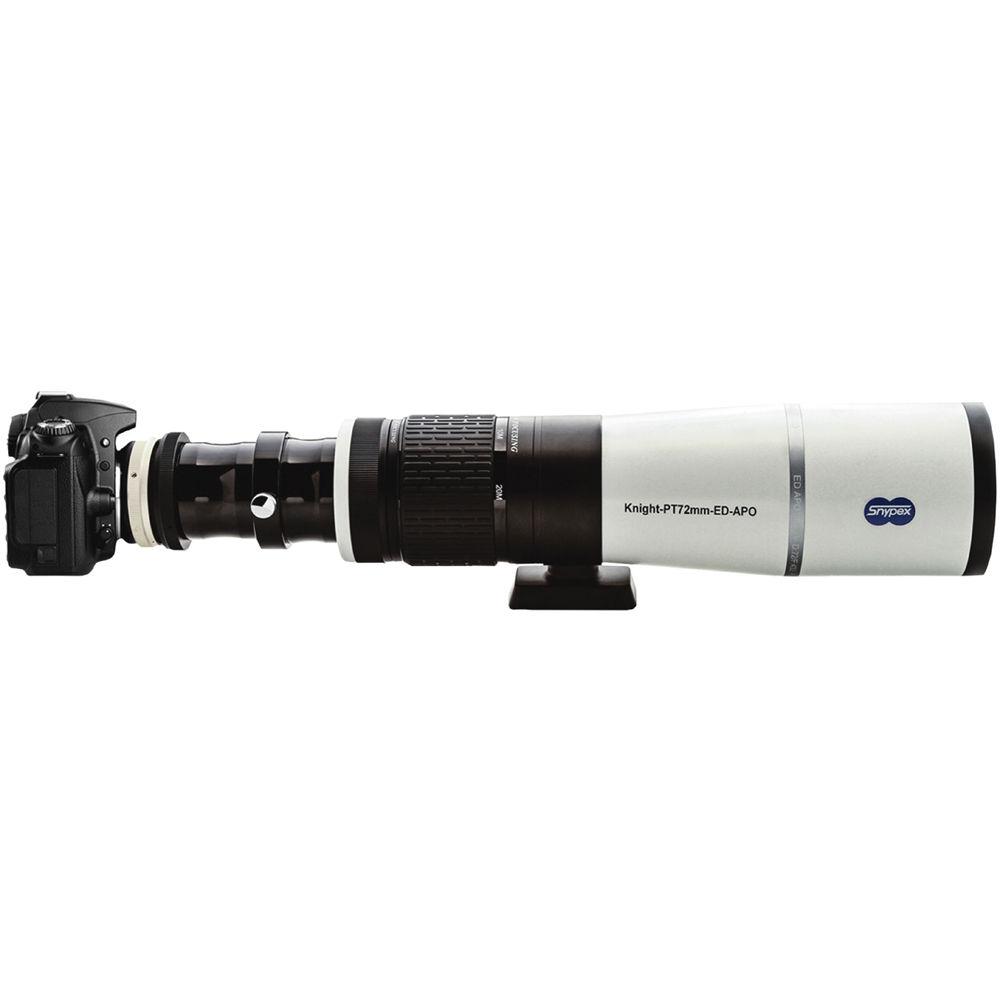

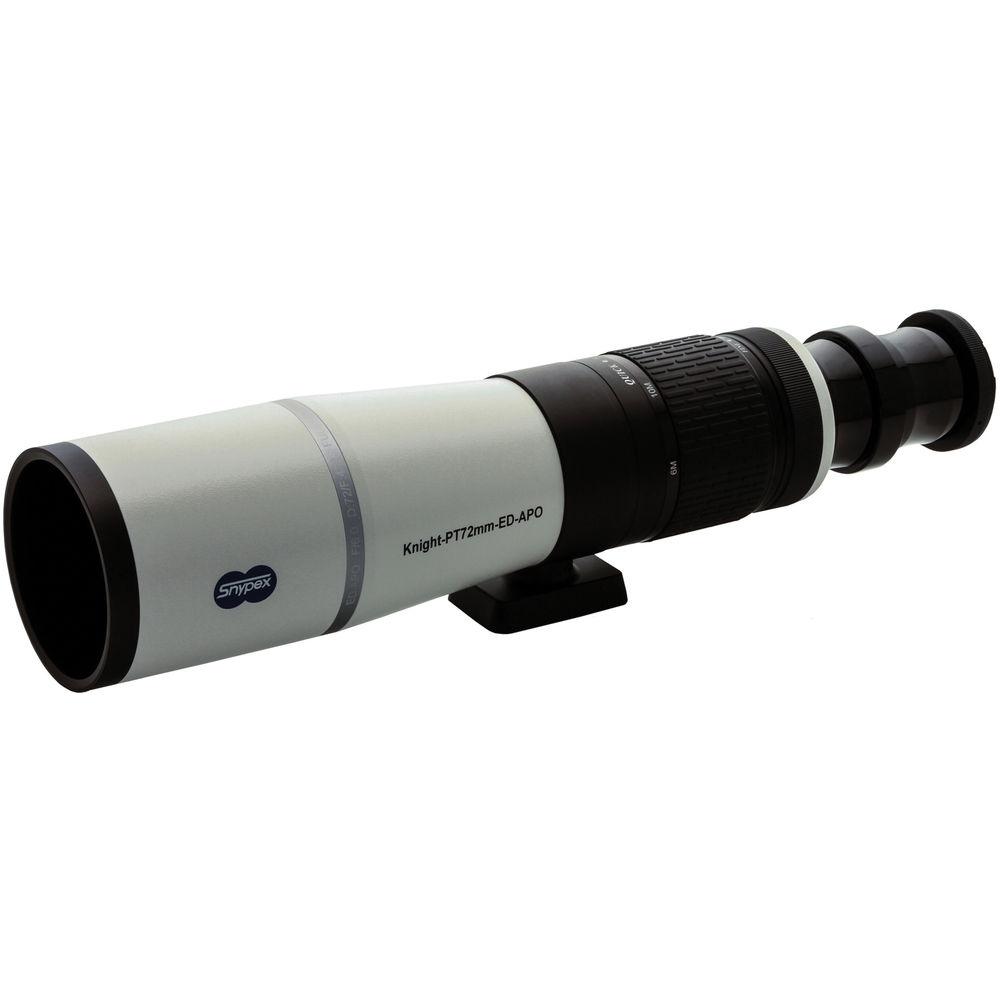

Product description A Guide to Birding with Spotting Scopes Read More The Knight PT 72mm f/6.0 ED-APO Photography Spotting Scope from Snypex is a powerful and versatile purpose-built optic for digiscoping with DSLR cameras. In place of an eyepiece holder are T-mount threads for attaching camera-specific T-2 adapters that allow your DSLR to be properly positioned on the scope's focal plane. Extra-low dispersion (ED) glass and an apochromatic doublet lens configuration virtually eliminate chromatic and spherical aberrations. With these aberrations corrected, views are seen with true high-contrast color and virtually no distortion across the entire field of view. Anti-reflection fully multi-coated optics maximize the light entering the objective lens to make the views bright with enhanced low-light performance. With an optional eyepiece adapter, the scope can be used as a conventional angled-view spotting scope.Its aluminum housing is coated with a chip- and scratch-resistant durable white paint. The focuser is based on the familiar DLSR lens system with a large textured coarse-focus ring and a smaller 1:10 fine-focus ring. The textures of the coarse and fine focus are different so you can tell the difference by feel. To mount the scope, there are two 1/4"-20 tripod mounts. These mounts are placed at either end of the shoe and help you balance the weight of the scope. The shoe has an integrated dovetail plate that fits on compatible quick release heads. A reinforced hard carrying case, with a custom die-cut foam interior, is included for protection while in storage or during transport. - Optical Performance
-
- 72mm objective lens
- 432mm focal length
- f/6.0 focal ratio
- Extra-low dispersion (ED) glass
- Apochromatic doublet lens system
- Anti-reflection fully multi-coated optics
- Use and Handling
-
- Dual-speed DLSR-type focusing rings
- Large ribbed coarse focus, 1:10 fine focus
- 1/4"-20 tripod mount with integrated dovetail mount
- Construction Details
-
- Aluminum optical tube assembly
- Durable chip- and scratch-resistant white paint
- Integrated retractable dew/sunshield
- Reinforced aluminum carry case with die-cut foam lining
UPC: 854725004061 In the Box Snypex Knight PT 72mm f/6.0 ED-APO Photography Spotting Scope Lens Cloth Ocular Dust Cap Objective Lens Cap 2" Adapter 2" Photo Adapter Tube Hard Aluminum Carry Case Limited 5-Year Warranty Manual PDF 319.7kbbbvxbrtstcwcbbdywsvbar Table of Contents
|
Upload User Manual
Have you got an user manual for the Snypex Knight PT 72mm f 6.0 ED-APO Photography Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSnypex Knight PT Specs | | | Objective Lens Diameter | 72 mm | | Minimum Focus Distance | 9.8' / 3.0 m | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 18.3 x H: 6.2 x W: 5.2" / L: 46.5 x H: 15.7 x W: 13.1 cm | | Weight | 4.3 lb / 2.0 kg | | | | Package Weight | 10.75 lb | | Box Dimensions (LxWxH) | 22.441 x 9.291 x 7.874" |
