User Manual for Snypex Knight T80 ED-APO 20-60x80 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Snypex Knight T80 ED-APO 20-60x80 Spotting
- Product category: Spotting Scopes Snypex
- Brand: Snypex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Snypex Spotting Scopes
 |
User manual for the Snypex Knight T80 ED-APO 20-60x80 Spotting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Snypex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Snypex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Snypex product will considerably shorten its lifespan!
|

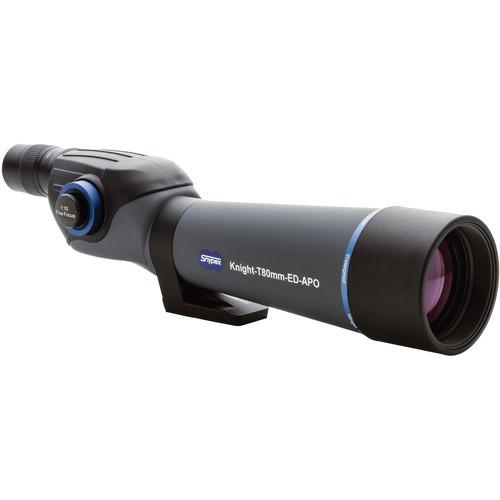

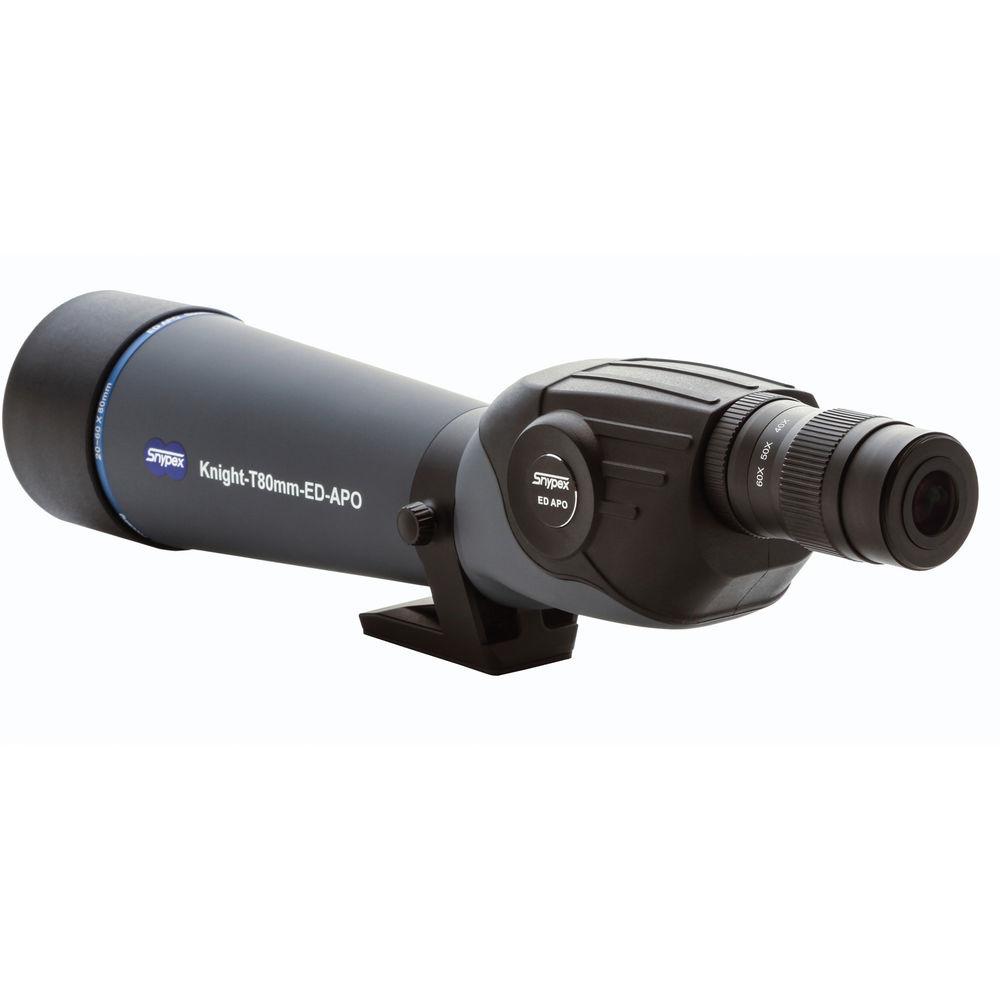

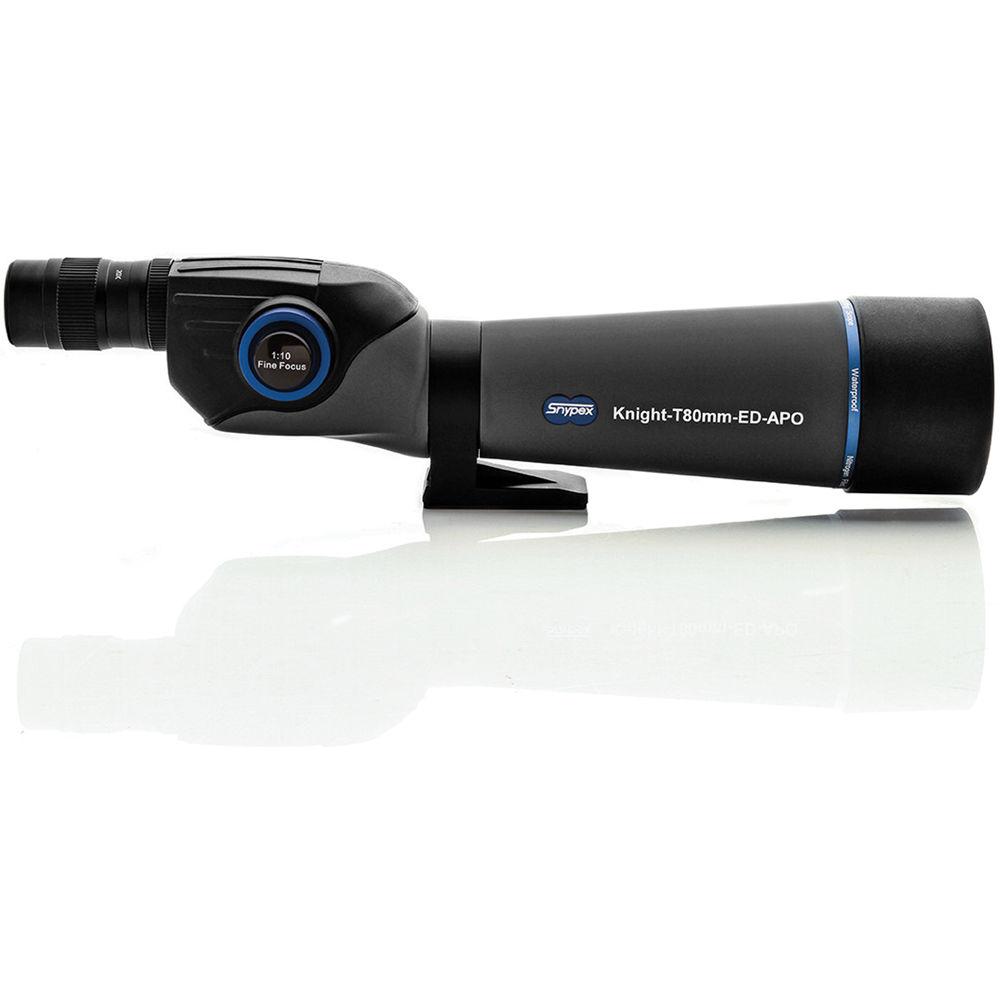

Product description A Guide to Birding with Spotting Scopes Read More The straight-viewing Knight T80 ED-APO 20-60x80 Spotting Scope from Snypex combines a large objective with extra-low dispersion (ED) apochromatic (APO) lenses and anti-reflection fully multi-coated optics to produce a spotter that can be used in the field or at the range in all lighting conditions. The APO-ED lenses correct for spherical and chromatic aberrations to create high-contrast images with true color transmission and reduced distortion, especially at the edges of the field of view. Its large 80mm objective increases the low-light performance for spotting game and wildlife at dawn and dusk, or in heavily wooded areas with a thick canopy. Anti-reflection optical coatings further help with the low-light performance by reducing light loss, so views through the scope are bright and clear.On the right side of the housing is the dual focus wheel system. A large course-focus wheel brings subjects into focus fast and then the small inner wheel can be used to precisely focus with pinpoint accuracy. The housing is waterproof and nitrogen filled for fogproof performance, and a twist-up eyecup allows for a custom eye relief with or without eyewear. - Optical Performance
-
- 20-60x zoom eyepiece
- 80mm objective lens
- Porro prism optical design
- Anti-reflection fully multi-coated optics increase light transmission for brighter and clearer images
- Apochromatic lens configuration corrects for spherical and chromatic aberrations for true color fidelity and reduced distortion
- Extra-low dispersion (ED) glass further reduces chromatic aberrations
- 78.5-57.6' field of view at 1000 yd
- Use and Handling
-
- Straight viewing for easier subject acquisition and tracking
- Dual focusing system with a course-focus wheel and 10:1 fine-focus inner wheel
- Twist-up eyecups for custom eye relief with or without eyewear
- Construction Details
-
- Nitrogen filled for fogproof performance; waterproof
- Rotating tripod collar
- Integrated retractable lens shade
UPC: 854725004078 In the Box Snypex Knight T80 ED-APO 20-60x80 Spotting Scope (Straight Viewing) Soft Carrying Bag Eyepiece Cover Objective Lens Cap Limited 1-Year Warranty Manual PDF 91.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Snypex Knight T80 ED-APO 20-60x80 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSnypex Knight T80 Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 80 mm | | Angle of View | 20x: 1.5° (Actual)
60x: 1.1° (Actual) | | Field of View | 20x: 78.5' @ 1000 yd / 26.0 m @ 1000 m
60x: 57.6' @ 1000 yd / 19.2 m @ 1000 m | | Minimum Focus Distance | 24.0' / 7.3 m | | Exit Pupil Diameter | 20x: 4 mm
60x: 1.3 mm | | Eye Relief | 25.0 to 16.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Waterproof | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 18.3 x H: 6.2 x W: 5.2" / L: 46.5 x H: 15.7 x W: 13.1 cm | | Weight | 4.6 lb / 2.1 kg | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 23.543 x 9.528 x 7.244" |
