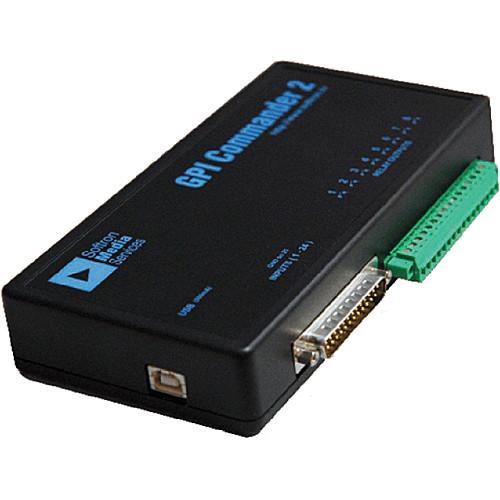

User Manual for Softron GPICommander 2 Click to enlarge the picture
Contents of the user manual for the Softron GPICommander 2
- Product category: Controller Options Softron
- Brand: Softron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Softron Controller Options
|
User manual for the Softron GPICommander 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Softron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Softron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Softron product will considerably shorten its lifespan!
|
Product description Softron GPICommander 2 is a USB-to-GPI and GPI-to-USB conversion box. Designed to pass along AppleScript-based commands to and from other computers and devices, GPICommander 2 is managed by the Mac-based GPICommander app, available via free download. GPICommander 2 works with most of Softron's other Mac-based broadcast workflow automation software. It also works with applications from other vendors, provided they can send and/or receive AppleScript.Also, by using the available SDK and writing your own code, you can directly address the hardware without employing AppleScript. The hardware is compatible with Windows; however, no software is supplied. You can control the unit by writing C code, and an API is available upon request. GPICommander 2 connects to your computer via USB and receives power through the same connection.Each of the DB-25 connector's 24 GPI inputs (open-collector type, common ground) can be assigned an AppleScript. When their contact-closure status changes, that triggers the AppleScript to run. This could, for instance, cause Softron's MovieRecorder to start recording, or the OnTheAir application could be scripted to begin its playlist. A single AppleScript can send multiple commands to multiple applications.There are also eight independent relay outputs on the "Phoenix" connector for sending GPI commands to other computers and devices. Each GPICommander 2 unit has a unique serial ID, so you can attach more devices to your host computer via USB, thereby expanding the possible inputs and/or outputs. Table of Contents
|
Upload User Manual
Have you got an user manual for the Softron GPICommander 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoftron 3.IB27 Specs | Input | DB-25 connector for GPI
24 Inputs, 1 ground | | Output | Phoenix connector for GPI with screw contacts
8 Relay outputs | | Power | USB powered | | Minimum System Requirements | Apple G4, OS 10.4.11, 2 GB RAM | | Rackmountable | Yes (kit not supplied) | | Windows Compatible | Yes (no software supplied - developers can ask for the API) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 6.5 x 3.0 x 1.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
