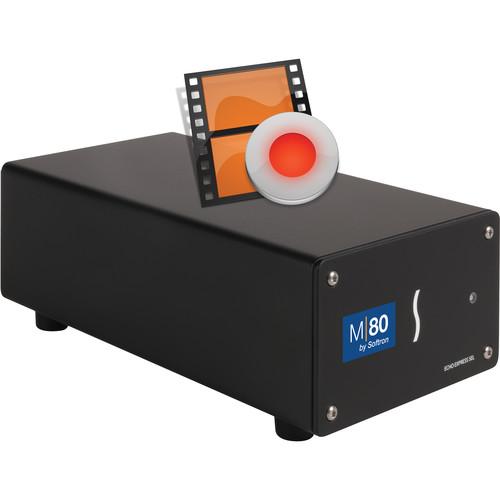

User Manual for Softron M80 Hardware & Software Bundle for MovieRecorder 4 Click to enlarge the picture
Contents of the user manual for the Softron M80 Hardware & Software Bundle
- Product category: Video Editing Softron
- Brand: Softron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Softron Video Editing
|
User manual for the Softron M80 Hardware & Software Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Softron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Softron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Softron product will considerably shorten its lifespan!
|
Product description The M80 Hardware & Software Bundle from Softron lets you enjoy all the features of MovieRecorder 4 in an optimized hardware and software bundle. Simply connect the M80 to your Mac Pro using a single Thunderbolt 2 cable, and start MovieRecorder 4 to begin ingesting up to 8 streams of HD (or SD) on your Mac Pro. Video clips captured using MovieRecorder can be edited during the actual ingest, making it handy for live sports editing. Additionally, you can even schedule your recordings. The bundle includes eight MovieRecorder 4 licenses on the included dongle. Thanks to the Deltacast DELTA-hd-elp-d 80, 8 x HD (or SD), 4 x 2K, and 2 x 4K signals can be recorded. The M80 has eight 75 Ω DIN 1.0/2.3 connectors. Video - SMPTE 259M-C (SD SDI) and 292M (HD SDI) completely independent transmitters and receivers
- Single Link SDI and Dual Link SDI (DL-SDI) capture for source image formats: HD formats as per SMPTE 274M and 296M: 1080i60/59.94/50, 1080p30/29.97/25/24/23.98, 1080PsF30/29.97/25/24/23.98, 720p60/59.94/50
2K formats as per SMPTE-2048-2: 2048x1080p30/29.97/25/24/23.98, 2048x1080PsF30/29.97/25/24/23.98
Dual Link formats support as per SMPTE 372M: 1080p60/59.94/50
SD formats as per ITU-R BT.601-5 part A: NTSC 525i59.94, PAL 625i50
4K (4096 x 2160) and UHD SDI (3840 x 2160) capture as 4-quadrant HD Other Features - Timecode (VITC, LTC, ATC) de-embedding as per SMPTE RP188
- OP42 CEA-708 close captions de-embedding
In the Box Softron M80 Hardware & Software Bundle for MovieRecorder 4 Dongle with 8-Channel License for MovieRecorder 4 Echo Express SEL Chassis with DELTA-hd-elp-d 80 with Low Profile Bracket Additional Standard Bracket for Deltacast Card 8 x 8.7" Patch Cables DIN 1.0/2.3 to BNC (female) Thunderbolt Cable Thunderbolt Cable Lock Power Adapter Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Softron M80 Hardware & Software Bundle for MovieRecorder 4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSoftron M80 Specs | External Connectors | 2 x Thunderbolt ports (for daisy chain)
8 x 75 Ω DIN 1.0/2.3 connectors (on video card)
1 x power | | Power Adapter | Universal 60 W, 100 to 240 VAC, 50 to 60 Hz | | Power Consumption | 1.2 A | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Humidity | 20 to 80% non-condensing | | System Requirements | At least a 3.5 GHz 6-Core Mac Pro with 16 GB of RAM to record to ProRes 422 1080i29.97
Mac OS X 10.9.4 and later
MovieRecorder 3.1 and later | | Dimensions (W x D x H) | 4 x 8.42 x 2.82" / 10.16 x 21.39 x 7.16 cm | | Weight | 2.1 lb / 0.97 kg | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 12.0 x 7.5 x 7.0" |
