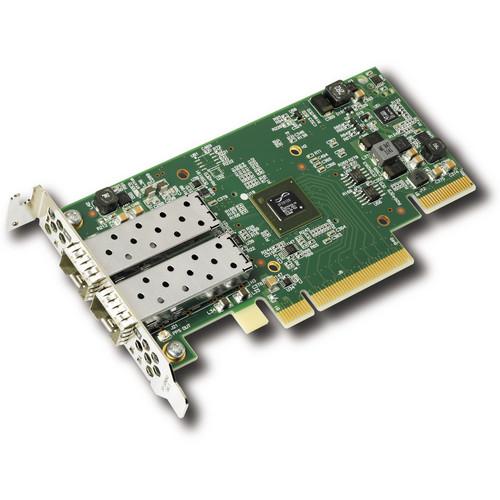

User Manual for Solarflare Flareon Ultra SFN7122F Dual Port 10 GbE PCIe 3.0 Server I O Adapter

Click to enlarge the picture
Solarflare Flareon Ultra SFN7122F Dual Port 10 GbE PCIe 3.0 Server I O Adapter Contents of the user manual for the Solarflare Flareon Ultra SFN7122F Dual Port
  • Product category: Network Interface Cards & Adapters Solarflare
  • Brand: Solarflare
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Solarflare Network Interface Cards & Adapters

User manual for the Solarflare Flareon Ultra SFN7122F Dual Port contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Solarflare product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Solarflare user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Solarflare product will considerably shorten its lifespan!



Product description

The Flareon Ultra SFN7122F Dual Port 10 GbE PCIe 3.0 Server I/O Adapter from Solarflare is a dual port 10G Ethernet SFP+ (Small Form-Factor) server adapter that delivers low latency and high message rates over standard Ethernet. It also enables low CPU utilization and power consumption, providing performance and scalability for enterprise data center environments. Featuring a set of stateless offloads, the server adapter reduces CPU processing loads for network tasks. With OpenOnload application accelerator, the adapter bypasses kernel and networking overheads, providing performance with seamless application compatibility and protocol compliance. OpenOnload features binary compatibility with all standard APIs (Application Programming Interfaces) and applications.
    Accelerated Applications and Optimized Server Input/Output
  • The Flareon Ultra SFN7122F server input/output adapter enables low latency networking solutions for electronic/ high frequency trading and other latency sensitive applications. It accelerates HPC (High-Performance Computing) and Apache Hadoop (open-source software framework) by providing high message rate, low latency interconnects for compute clusters. The SFN7122F's CPU offload along with performance enables servers to provide more services to more users in cloud and grid environments. The server adapter also accelerates database, social networking, email, and other storage-intensive applications with high bandwidth and low latency for SAN and NAS environments.
    Low Latency
  • This server adapter supports PCIe 3.0 with low latency features such as direct packet transfer (Tx PIO) mode and the template send API (Application Programming Interface). It also features hardware acceleration to optimize packet delivery, such as UDP (User Datagram Protocol) multicast replication, integrated layer 2 switching capability, and VLAN (Virtual LAN) insertion / removal, along with TCP Segmentation Offload (TSO) to reduce CPU load.
    Hardware-Assisted Virtualization
  • With vNICs and virtual PCIe functions, the server adapter's performance scales as the number of CPU cores and VMs (Virtual Machines) increase, supporting more applications per physical server. It also supports NetQueue, VMQ, and SR-IOV used to accelerate guest applications in hypervisors, such as ESXi, Hyper-V, KVM, and Xen. This eliminates network input/output barriers, dedicating full network bandwidth directly to VMs while maintaining full hypervisor management services. The 16 physical PCIe functions enable granularity and scalability when allocating Quality of Service for optimized bandwidth utilization as input/output fluctuates.
    Network Services
  • The Flareon Ultra SFN7122F server adapter enables deploying servers for a wide range of applications with a single server adapter. With AppFlex technology, this server adapter provides the flexibility to selectively add and control services such as network monitoring, precision time, security, and application acceleration to servers.
UPC: 816191010243 In the Box Solarflare Flareon Ultra SFN7122F Dual Port 10 GbE PCIe 3.0 Server I/O Adapter
  • PCIe Low-Profile Bracket
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Solarflare Flareon Ultra SFN7122F Dual Port 10 GbE PCIe 3.0 Server I O Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Solarflare SFN7122F Specs

    Ports Dual port
    Input/Output Virtualization 2048 Guest OS protected vNICs
    240 Virtual functions
    16 Physical functions
    PCIe PCIe 3.0 x8 @ 8.0 GT/s
    SFC9120 10 G Ethernet Controller Supports 10 GbE
    SFP+ Support Supports optical and copper SFP/SFP+ modules
    Direct-Attach, fiber (10 G or 1 G), 1 G/10 G combo
    1000BASE-T SFP Support Supports 1 G 1000BASE-T SFP modules
    Low Latency Cut-through architecture/intelligent interrupt coalescing
    Receive Side Scaling (RSS) Distributes IPv4, IPv6 loads across CPU cores
    MSI-X minimizes interrupt overhead
    Hardware Offloads TSO, LRO, GSO
    IPv4/IPv6
    TCP, UDP checksums
    Adapter Teaming/Link Aggregation LACP (Link Aggregation Control Protocol) for redundant links and increased bandwidth (compatible with MLAG (Multi Link Aggregation))
    Jumbo Frames 9216 byte MTU
    Tuning Adaptive interrupt moderation
    IP Flow Filtering Hardware directs packets based on IP, TCP, UDP headers
    Packet Filtering 4096 multicast filters
    4096 VLANs/port
    Adaptive TCP/UDP/IP, MAC, VLAN, RSS, RFS filtering
    Accelerated Receive Flow Steering (RFS)
    Intel QuickData Uses host DMA engines to accelerate input/output
    Remote Boot PXE, iSCSI boot
    Unattended installation
    Management SNMP, ACPI v3.0
    Virtualization Support VMware ESXi
    Microsoft Hyper-V
    XenServer
    Linux KVM
    SR-IOV
    Power Typical: 5.9 W
    Operating Range 32 to 149°F (0 to 65°C)
    100 LFM (minimum)
    Standards and Compliance IEEE 802.3ae
    IEEE 802.3ad
    IEEE 802.1Q
    IEEE 802.1p
    IEEE 802.3x
    RoHS compliant
    Operating Systems RHEL 5, 6
    MRG
    SLES 10, 11
    SLERT and other Linux
    Windows Server
    End Bracket Height PCIe Standard: 4.72" (11.98 cm)
    PCIe Low-Profile: 3.12" (7.92 cm) (included)
    Dimensions (LxW) 5.3 x 2.7" (13.4 x 6.8 cm)
