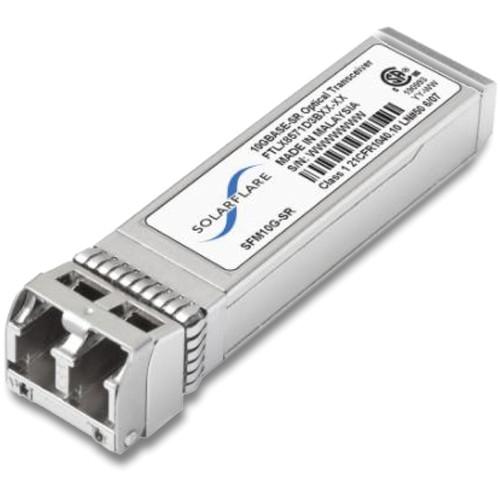

User Manual for Solarflare SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb s SFP Transceiver Click to enlarge the picture
Contents of the user manual for the Solarflare SFM10G-SR 10GBASE-SR 850nm Multimode 10
- Product category: Network Transceivers Solarflare
- Brand: Solarflare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solarflare Network Transceivers
|
User manual for the Solarflare SFM10G-SR 10GBASE-SR 850nm Multimode 10 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solarflare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solarflare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solarflare product will considerably shorten its lifespan!
|
Product description The SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb/s SFP+ Transceiver from Solarflare is a hot-pluggable SFP+ device for use in 10 Gb Ethernet links over multimode fiber. It is compliant with the SFF-8431, SFF-8432, and IEEE 802.3ae 10GBASE-SR specifications. The transceiver is RoHS compliant and lead-free per Directive 2002/95/EC6. The SFP+ transceiver supports the 2-wire serial communication protocol as defined in the SFF-8472. This low-power module supports OM1, OM2, and OM3 multimode fiber (MMF) media with standard LC connectors. - Compatibility
- The SFM10G-SR SFP+ transceiver module is compatible with single-port and dual-port SFP+ 10GbE server adapters. It supports up to 984.2' (300.0m) reach using standard LC connectors with OM3 MMF.
- Performance
- The SFM10G-SR SFP+ transceiver enhances 10GbE SFP+ server adapter products by ensuring they deliver performance, low-latency, low-power, and scalable input/output virtualization. Combined with the SFM10G-SR transceiver, server adapters offer value for data centers, enterprise networks, virtualization and cloud applications, and high-performance computing (HPC) clusters.
- Regulatory Compliance
- The SFM10G-SR transceiver is a Class 1 Laser Product that complies with US FDA regulations. It is certified by TUV and CSA to meet the Class 1 eye safety requirements of EN (IEC) 60825 and the electrical safety requirements of EN (IEC) 60950.
UPC: 816191010090 In the Box Solarflare SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb/s SFP+ Transceiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solarflare SFM10G-SR 10GBASE-SR 850nm Multimode 10 Gb s SFP Transceiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolarflare SOLR-SFM10G-SR Specs | Form Factor | SFP+ | | Ethernet Standards | IEEE 802.3ae | | Ports | 1 x Duplex LC | | Networking Technology | 10GBASE-SR | | Wavelength | 850 nm | | Maximum Networking Distance | 984' / 300 m | | Maximum Data Rate | 10 Gbps | | Mode | Multi-Mode | | Power Consumption | 1 W | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Dimensions (L x W x H) | 2.2 x 0.5 x 0.4" / 55.9 x 12.7 x 10.2 mm | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 1.0" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 79 owners. Add your rating and experience with the product.
