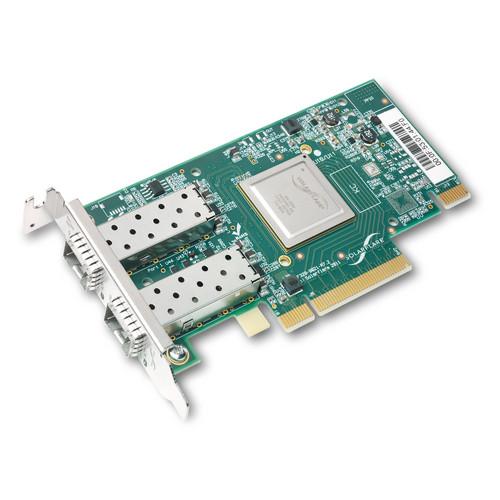

User Manual for Solarflare SFN6122F Dual Port 10GbE PCIe Gen 3 SFP Enterprise Server Adapter Click to enlarge the picture
Contents of the user manual for the Solarflare SFN6122F Dual Port 10GbE PCIe
- Product category: Network Interface Cards & Adapters Solarflare
- Brand: Solarflare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solarflare Network Interface Cards & Adapters
|
User manual for the Solarflare SFN6122F Dual Port 10GbE PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solarflare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solarflare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solarflare product will considerably shorten its lifespan!
|
Product description The SFN6122F Dual Port 10GbE PCIe Gen 3 SFP+ Enterprise Server Adapter from Solarflare is a dual port PCIe generation 3.0 compatible 10G Ethernet SFP+ enterprise server adapter that delivers high message rates with low latency over standard Ethernet. It also enables low CPU utilization and power consumption, providing performance and scalability for financial services and other data center environments. This enterprise server adapter is equipped to handle increasing application loads of multi-core processors. It delivers enhanced throughput and low latency with minimal CPU load for the consolidation and deployment of high-density servers. The server adapter supports data networking with concurrent support of iSCSI and NAS traffic. - Low Latency at High Message Rates
- The SFN6122F enterprise server adapter delivers low latency at high message rates, making it suitable for financial services and enterprise data center deployments. It also delivers 40 Gb/s bi-directional line-rate performance. Featuring a set of stateless offloads, it provides efficient acceleration of network protocol tasks. The SFN6122F server adapter supports a wide range of drivers that are compatible with all Solarflare products, including the SFN5122F enterprise server adapter. It also supports Solarflare OpenOnload application accelerator, a user-level network stack for Linux. OpenOnload provides low latency performance with application compatibility and protocol compliance, bypassing kernel and networking overheads while featuring binary compatibility with standard APIs and applications.
- Hardware-Assisted Virtualization
- With additional vNICs and virtual PCIe functions, the SFN6122F server adapter's performance scales as the number of CPU cores and virtual machines increase, resulting in enhanced application performance. The server adapter supports NetQueue, VMQ, and SR-IOV used to accelerate guest applications in hypervisors, such as VMware, Hyper-V, Linux KVM, and XenServer. This eliminates network input/output barriers in virtualized environments, dedicating full network bandwidth directly to virtualized applications while maintaining hypervisor management services.
- Energy Efficient
- The server adapter consumes less than 6W of power and delivers 5 to 10 times the efficiency of 1G Ethernet (Gb/s/W). This results in a power efficient 10G network that can save operating cost for a data center. It is also compatible with the ENERGY STAR guideline for power consumption.
UPC: 816191010151 In the Box Solarflare SFN6122F Dual Port 10GbE PCIe Gen 3 SFP+ Enterprise Server Adapter PCIe Low-Profile Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solarflare SFN6122F Dual Port 10GbE PCIe Gen 3 SFP Enterprise Server Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolarflare SFN6122F Specs | Ports | Dual port SFP+ | | Input/Output Virtualization | 2048 Guest OS protected vNICs
254 virtual functions | | PCIe | PCIe generation 2.0 compliant (PCIe generation 3.0 compatible) @ 5.0 GT/s for full, 40 Gb/s bi-directional bandwidth | | LAN Technology | Supports 10 Gigabit Ethernet (10 GbE) | | SFP+ Support | Supports optical and copper SFP/SFP+ modules
Direct-Attach, fiber (10 G or 1 G), 1 G/10 G combo, 1000BASE-T SFP | | 1000BASE-T SFP Support | Supports 1 G 1000BASE-T SFP modules | | Low Latency | Cut-through architecture/intelligent interrupt coalescing | | Receive Side Scaling (RSS) | Distributes IPv4/IPv6 loads across CPU cores
MSI-X minimizes interrupt overhead | | Hardware Offloads | LSO, LRO, GSO
IPv4/IPv6
TCP, UDP checksums | | Adapter Teaming/Link Aggregation | LACP, MLAG for redundant links and increased bandwidth | | Jumbo Frames | 9000 byte MTU | | IP Flow Filtering | Hardware directs packets based on IP, TCP, UDP headers | | Packet Filtering | 256 Multicast filters
4096 VLANs/port
Adaptive TCP/UDP/IP, MAC, VLAN, RSS, RPS, RFS filtering
Accelerated Receive Flow Steering (RFS) | | Intel QuickData | Uses host DMA engines to accelerate input/output | | Remote Boot | PXE, iSCSI boot
Unattended installation | | Management | ACPI v3.0, SNMP, SMBus, IPMI | | Virtualization Support | ESX 3.5, vSphere 4.x, 5.0
Hyper-V
XenServer 5.6, 6.0
KVM
NetQueue
VMQ
SR-IOV | | Standards and Compliance | IEEE 802.3ae
IEEE 802.3ad
IEEE 802.1Q
IEEE 802.1p
IEEE 802.3x
RoHS | | Power | Typical: 5.9 W | | Operating Range | 32 to 131°F (0 to 55°C)
0 LFM (minimum) | | Operating Systems | RHEL 5, 6
MRG
SLES 10, 11
SLERT and other Linux
Windows Server 2003, 2008, 2008 R2
Mac OS X v10.6.x, v10.7
Solaris 10 (x86) | | End Bracket Height | PCIe Standard: 4.70" (11.93 cm)
PCIe Low-Profile: 3.10" (7.87 cm) (included) | | Dimensions (LxW) | 5.30 x 2.70" (13.46 x 6.85 cm) |
