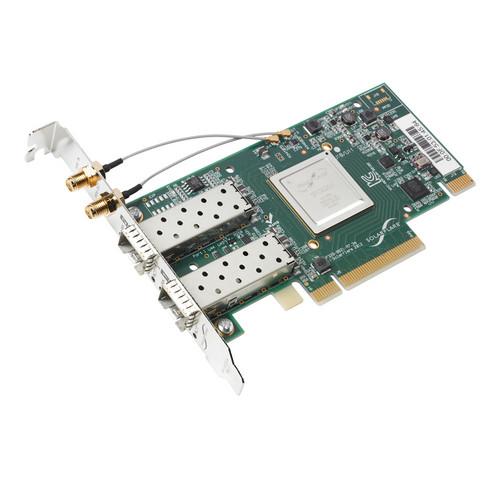

User Manual for Solarflare SFN6322F Dual Port 10 GbE SFP Server Adapter Click to enlarge the picture
Contents of the user manual for the Solarflare SFN6322F Dual Port 10 GbE
- Product category: Network Interface Cards & Adapters Solarflare
- Brand: Solarflare
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solarflare Network Interface Cards & Adapters
|
User manual for the Solarflare SFN6322F Dual Port 10 GbE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solarflare product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solarflare user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solarflare product will considerably shorten its lifespan!
|
Product description The SFN6322F Dual Port 10 GbE SFP+ Server Adapter from Solarflare offers precision time synchronization along with high message rates and low latency 10G Ethernet. It accelerates time synchronization and provides enhanced application performance on a single data network and in a single PCIe slot. This adapter is suitable for environments where clock synchronization is critical, such as financial services, industrial automation, geological sciences, and telecom services. The SFN6322F server adapter accelerates time synchronization by performing precision hardware stamping of IEEE 1588 Ethernet frames and provides low latency application acceleration. This server adapter eliminates the need for a secondary server adapter (freeing PCIe slots), while facilitating slave servers to precisely synchronize internal clocks to a network master clock. The SFN6322F driver is compatible with SFN6122F and SFN5122F products and seamlessly interfaces to host software time synchronization solutions that utilize the standard Linux socket option SO_TIMESTAMPING, such as the TPv2 daemon, which implements the IEEE1588 time synchronization protocol. The driver interfaces to kernels that predate SO_TIMESTAMPING are also available. - Precision Time Synchronization
- The SFN6322F server adapter utilizes a precision clock source, which meets the requirements for use in a Stratum 3 clock system for network synchronization. Its precision clock stability enables servers to synchronize to a data network clock and serve as a stable clock source. Products utilizing crystals can drift significantly over time, temperature, and age, resulting in an inferior clock synchronization solution. In PTP applications the SFN6322F limits drift and increases precision, which are key factors for high-precision PTP clock synchronization. The SFN6322F server adapter features a Pulse Per Second (1PPS) input that can be utilized to calibrate the PTP offset. It also features a 1PPS output-timing signal aligned to the SFN6322F's Stratum 3 clock.
- Low Latency at High Message Rates
- The SFN6322F server adapter delivers low latency at high message rates along with 40 Gb/s bi-directional line rate performance. It is suitable for environments where clock synchronization is critical, such as financial services, industrial automation, geological sciences, and telecom services. Featuring a set of stateless offloads, it provides efficient acceleration of network protocol tasks.
- OpenOnload Application Accelerator
- This server adapter supports Solarflare's OpenOnload application accelerator, a user-level network stack for Linux. OpenOnload provides low latency performance with application compatibility and protocol compliance, bypassing kernel and networking overheads, while featuring binary compatibility with standard APIs and applications.
- Energy Efficient
- At 3.1W per port, this server adapter enables low power consumption, offering low latency 10G Ethernet with additional precision time stamping capabilities.
UPC: 816191010144 In the Box Solarflare SFN6322F Dual Port 10 GbE SFP+ Server Adapter PCIe Low-Profile Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solarflare SFN6322F Dual Port 10 GbE SFP Server Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolarflare SFN6322F Specs | Ports | Dual port SFP+ | | Precision Time Stamping (Port 0) | Facilitates synchronization of network nodes | | Stable Precision Oscillator | Stratum 3 compliant
Short term drift < 3.7 x 10-7 in 24 hours | | Server Clock Synchronization Precision | Sub 200 ns | | 1PPS-Input: SMA | Rising edge active, TTL into 50 Ω | | 1PPS-Output: SMA | Rising edge on-time, TTL into 50 Ω | | PCIe | PCIe x8 generation 2.0 compliant @ 5.0 GT/s for full, 40 Gb/s bi-directional bandwidth | | SFC9020 10G Ethernet Controller | Supports 10 GbE | | SFP+ Support | Optical and Copper SFP/SFP+ Modules: Direct-Attach, fiber (10 G or 1 G), 1 G/10 G combo | | 1000BASE-T SFP Support | Supports 1 G 1000BASE-T SFP modules | | Low Latency | Cut-through architecture/intelligent interrupt coalescing | | Receive Side Scaling (RSS) | Distributes IPv4/IPv6 loads across all CPU cores
MSI-X minimizes interrupt overhead | | Hardware Offloads | LSO, LRO, GSO
IPv4/IPv6
TCP, UDP checksums | | Adapter Teaming/Link Aggregation | LACP, MLAG for redundant links and increased bandwidth | | Enhanced Tuning | Adaptive interrupt moderation | | IP Flow Filtering | Hardware directs packets based on IP, TCP, UDP headers | | Packet Filtering | 256 Multicast filters
4096 VLANs/port
Adaptive TCP/UDP/IP, MAC, VLAN, RSS, RPS, RFS filtering
Accelerated Receive Flow Steering (RFS) | | Jumbo Frames | 9000 byte MTU | | Intel QuickData | Uses host DMA engines to accelerate input/output | | Remote Boot | PXE, iSCSI boot
Unattended installation | | Management | ACPI v3.0, SNMP, SMBus, IPMI | | Power | Typical: 6.2 W | | Operating Range | 32 to 131°F (0 to 55°C) 50 LFM (minimum) | | Compatibility Models | SFN6122F
SFN5122F | | Standards and Compliance | IEEE 1588
IEEE 802.3ae
IEEE 802.3ad
IEEE 802.1Q
IEEE 802.1p
IEEE 802.3x
RoHS | | Operating Systems | RHEL 5, 6
MRG
SLES 10/11
SLERT and other Linux | | End Bracket Height | PCIe Standard: 4.7" (11.9 cm)
PCIe Low-Profile: 3.12" (7.92 cm) (included) | | Dimensions (LxW) | 5.3 x 2.7" (13.4 x 6.8 cm) |
