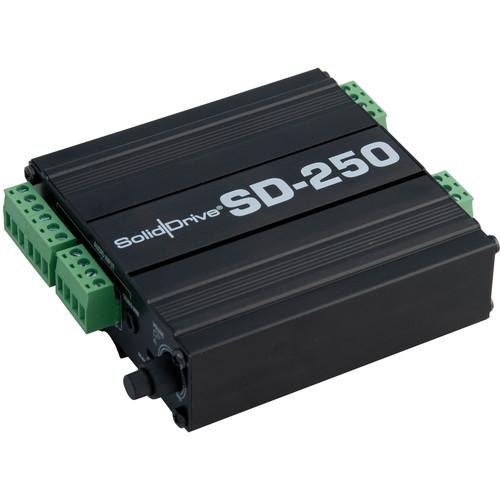

User Manual for Solid Drive SD-250 Mini Amplifier Click to enlarge the picture
Contents of the user manual for the Solid Drive SD-250 Mini Amplifier
- Product category: Power Amplifiers Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Power Amplifiers
|
User manual for the Solid Drive SD-250 Mini Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The Solid Drive SD-250 Mini Amplifier from Solid Drive is a 50W per channel (8 ohm) Class D amplifier with maximum gain of 34 dB. Input options include balanced stereo Euroblock, unbalanced line level mini jack, and a stereo speaker level (amplified) Euroblock input for applications with low wattage speaker outputs. The SD-250 has three operating modes: stereo, dual mono, or bridged mono. In stereo, each input channel flows directly to its corresponding output channel. The amplifier has three preset EQ settings for use with a SolidDrive speaker in drywall, glass and wood. It also has a flat setting for unequalized full-range amplification. In dual mono, the left input is fed to both output channels. In bridged mono, the left input is fed to the bridged output (4-8 ohms only). This system includes selectable 12 - 32V external trigger input or auto standby to conserve energy. - 34 dB maximum gain with 2 x 50W output
- Three operating modes: stereo, mono or bridged mono
- Three SolidDrive EQ settings for drywall, wood and glass, plus a full-range flat option (no EQ)
- Three user selectable inputs: balanced stereo Euroblock, stereo unbalanced mini jack, or high level Euroblock
- External 12 - 32V trigger
- Signal detecting auto standby to conserve energy
- Dual concentric gain controls for independent channel control
- Suitable for digital signage, education, point of purchase, museums, surgical centers, AV carts or any application where a small amplifier is needed to boost a limited source output
In the Box Solid Drive SD-250 Mini Amplifier Power Supply Stereo RCA Female to Mini Male Adapter Pole / Surface Mount Adapter 2 x 4-Pin Euroblock Male Connectors 2 x 3-Pin Euroblock Connectors Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid Drive SD-250 Mini Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid Drive SD-250 Specs | System Type | 50 W per channel (8 ohms), class D amplifier | | Frequency Response | 20 Hz - 20 kHz | | Maximum Gain | 34 dB (8 ohms) | | Power | Power per Channel @ < 1 % THD: 50 W (8 ohms), 65 W (4 ohms)
Bridged Mono Power @ < 1 % THD: 90 W (4 ohms) | | Power Supply | 32 VDC, 3.75 A | | Signal to Noise Ratio | > 83 dB (50 W) | | Input Impedance | 47 kOhms | | Dimensions | 1.2 x 3.9 x 4.0" (3.0 x 9.9 x 10.2 cm) | | Weight | 0.56 lb (0.26 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 10.5 x 9.6 x 3.5" |
