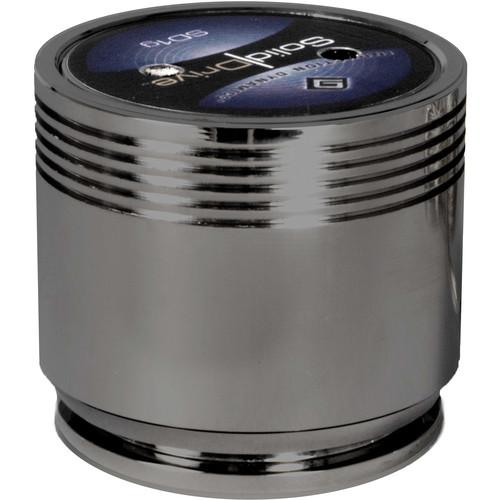

User Manual for Solid Drive SD1G SolidDrive Sound Transducer for Glass installation Click to enlarge the picture
Contents of the user manual for the Solid Drive SD1G SolidDrive Sound Transducer
- Product category: Installed Speakers Solid Drive
- Brand: Solid Drive
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solid Drive Installed Speakers
|
User manual for the Solid Drive SD1G SolidDrive Sound Transducer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solid Drive product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solid Drive user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solid Drive product will considerably shorten its lifespan!
|
Product description The titanium SD1G SolidDrive Sound Transducer for Glass installation from SoundTube Entertainment utilizes dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate. Symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. The result is acoustical uniformity throughout the listening space.
This sound transducer is designed for mounting on glass surfaces, and comes with a double-sided VHB (Very High Bond) adhesive silicone disc and a direct screw aluminum mounting base and an attached wiring harness with EuroStyle connector. This transducer can be installed on windows to deliver sound to glass storefronts and glass reception areas. The entire windowpane can become a speaker delivering both interior and exterior sound on a single-pane glass.
The SD1G Sound Transducer is suitable for use at restaurants, mall stores, auto dealerships, department stores, stadium sky boxes, reception areas, and glass atriums. Note: To ensure optimal listening experience, the installer must equalize the SolidDrive SD1 System. Equalization is accomplished by using the SolidDrive Glass Passive Equalization Module (sold separately). - Dual-voice coil technology in a durable, aluminum enclosure delivering high power handling and sensitivity across multiple substrates
- Symmetrically opposed neodymium magnets convert audio signals into acoustical energy for any rigid surface including glass 1
Please Note: This transducer is designed for glass installation only close - Hidden planar-source audio technology evenly distributes acoustic energy throughout the listening space
- Behind-surface mounting technology ensures maximum visual appeal
- SolidDrive Glass Passive Equalization Module (sold separately) increases the transducer's sound performance for optimal listening enjoyment by using notch filters to correct peaks in the frequency response
- For extended frequency response, couple this SolidDrive unit with SW7 or SW8 subwoofers (sold separately)
- CE, UL 1480 & 2043, and RoHS compliant
In the Box Solid Drive SD1G SolidDrive Sound Transducer for Glass installation (Titanium) VHB Adhesive Silicone Disc Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid Drive SD1G SolidDrive Sound Transducer for Glass installation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid Drive SD1 Specs | System Type | On-surface full-range transducer | | Impedance | Nominal: 8 ohms Impedance listed per IEC 60268-5 | | Sensitivity | dB @ 2.83 V/1 m: 70 to 75 dB
dB @ 1 W/1 m: 73.5 dB Equivalent to conventional in-wall @ 4m
1 W/1 m sensitivity determined using nominal impedance | | Frequency Response | 70 Hz to 15 kHz
@ -3 dB: 80 Hz to 10 kHz
@ -10 dB: 60 Hz to 15 kHz Frequency response measured in half or full space as dictated by speaker mounting configuration | | Maximum Power | Program: 50 W
Continuous RMS: 30 W
SPL @ 1 m: 88.5 dB | | Recommended Amplifier Power | 10 to 100 W Maximum program power is 3 dB above max continuous power
Continuous power rating EIA-426-B test
Maximum output based on max continuous power | | Coverage Angle | -6 dB @ 2 kHz: 120°
-6 dB @ 10 kHz: 120° | | Enclosure | Chrome-plated aluminum | | Inputs | Wire lead with screw connector block | | Dimensions | 2.28 x 2.08" (5.79 x 5.28 cm) | | Weight | 1.20 lb (0.54 kg) | | | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 2.0" |
