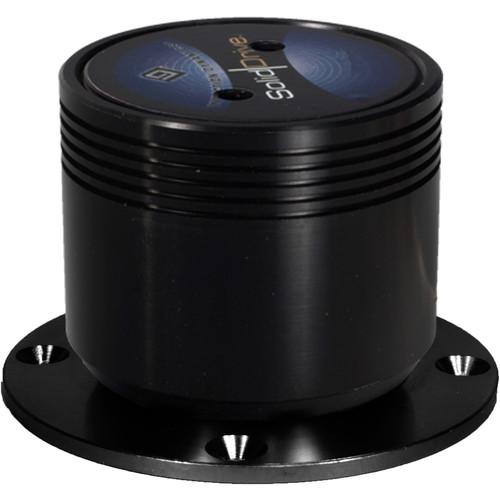

Product description The black SD1SM SolidDrive Sound Transducer for Wood / Porous installation from SoundTube Entertainment utilizes dual-voice coil technology in an aluminum enclosure to transfer acoustic energy to any substrate. Symmetrically opposed neodymium magnets and specifically engineered mounting hardware results in hidden planar-source acoustics. The result is acoustical uniformity throughout the listening space.
This sound transducer is designed for mounting on wood or porous surfaces, and comes with a direct-Screw aluminum mounting base and a direct screw aluminum mounting base and an attached wiring harness with EuroStyle connector.
The SD1SM Sound Transducer is suitable for use at restaurants, mall stores, auto dealerships, department stores, stadium sky boxes, reception areas, and glass atriums. Note: To ensure optimal listening experience, the installer must equalize the SolidDrive SD1 System. Equalization is accomplished by using the SolidDrive Wood Passive Equalization Module (sold separately). - Dual-voice coil technology in a durable, aluminum enclosure delivering high power handling and sensitivity across multiple substrates
- Symmetrically opposed neodymium magnets convert audio signals into acoustical energy for any rigid surface including wood or porous 1
Please Note: This transducer is designed for wood or porous installation only close - Hidden planar-source audio technology evenly distributes acoustic energy throughout the listening space
- Behind-surface mounting technology ensures maximum visual appeal
- SolidDrive Wood Passive Equalization Module (sold separately) increases the transducer's sound performance for optimal listening enjoyment by using notch filters to correct peaks in the frequency response
- For extended frequency response, couple this SolidDrive unit with SW7 or SW8 subwoofers (sold separately)
- CE, UL 1480 & 2043, and RoHS compliant
In the Box Solid Drive SD1SM SolidDrive Sound Transducer for Wood / Porous installation (Black) Direct-Screw Aluminum Mounting Base Limited 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid Drive SD1SM SolidDrive Sound Transducer for Wood Porous installation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid Drive SD1 Specs | System Type | On-surface full-range transducer | | Impedance | Nominal: 8 ohms Impedance listed per IEC 60268-5 | | Sensitivity | dB @ 2.83 V/1 m: 70 to 75 dB
dB @ 1 W/1 m: 73.5 dB Equivalent to conventional in-wall @ 4m
1 W/1 m sensitivity determined using nominal impedance | | Frequency Response | 70 Hz to 15 kHz
@ -3 dB: 80 Hz to 10 kHz
@ -10 dB: 60 Hz to 15 kHz Frequency response measured in half or full space as dictated by speaker mounting configuration | | Maximum Power | Program: 50 W
Continuous RMS: 30 W
SPL @ 1 m: 88.5 dB | | Recommended Amplifier Power | 10 to 100 W Maximum program power is 3 dB above max continuous power
Continuous power rating EIA-426-B test
Maximum output based on max continuous power | | Coverage Angle | -6 dB @ 2 kHz: 120°
-6 dB @ 10 kHz: 120° | | Enclosure | Chrome-plated aluminum | | Inputs | Wire lead with screw connector block | | Dimensions | 2.28 x 2.08" (5.79 x 5.28 cm) | | Weight | 1.20 lb (0.54 kg) | | | | Box Dimensions (LxWxH) | 5.0 x 5.0 x 2.0" |
