Product description The Alpha-Link LIVE-R from Solid State Logic is a versatile, high-quality, fixed configuration audio converter unit. It can be used to provide local or remote I/O for both C100 HDS and C10 HD consoles or alternatively as a stand-alone format converter. The Alpha-Link LIVE-R unit provides 24 balanced analog inputs and outputs (with high-quality 24-bit analog conversion) and 12 AES input and output pairs (with 8 channels of 24-bit sample rate conversion). It connects to the console using fully redundant MADI over fiber to ensure absolute signal integrity and with embedded control data; remote control of IO parameters from the console is achieved with minimum cabling. The Alpha-Link LIVE-R is configurable to suit US broadcast analog interface levels. The Alpha-Link LIVE-R is suitable for studio, live, and broadcast applications and includes redundant PSUs, all fitted into a compact 2U rack.

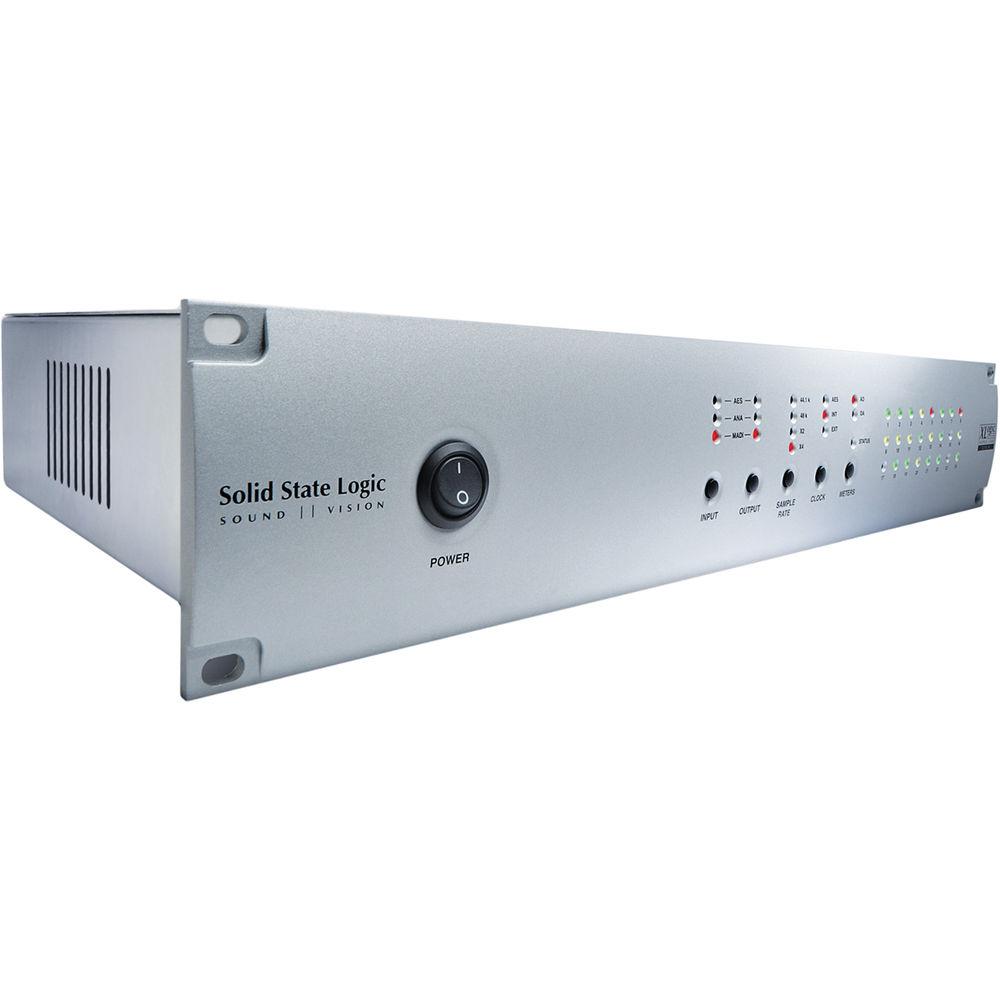

The unit offers simple front panel controls for configuration and a comprehensive input / output routing matrix which can be used to set up global connections between the various I/O connections and makes all combinations possible. There is also a meter section for the analog inputs and outputs with an AD / DA selection button, mode indicator LEDs, and 24 tri-color level LEDs.
The Alpha-Link LIVE-R unit can be used as stand-alone format converter. In stand-alone mode, all input and output channels can be used simultaneously in any configuration. When used as a stand-alone converter, the front panel controls for Alpha-Link LIVE-R are used for format conversion configuration. When used in combination with an SSL C10 HD or C100 HDS console, it provides a powerful, highly flexible I/O solution which is especially suited to broadcast applications. When connected to a C10 HD or C100 HDS console, the Alpha-Link LIVE-R provides automatic fiber redundancy switching, and remote control of up to 3 Alpha-Link 8-RMP Mic preamps is possible. - Redundant MADI Fiber I/O connections
- MADI I/O can be locked to the C10 HD and C100 HDS highly stable clocks
- Selectable as a Clock Master device or can be externally synchronized to AES/EBU, Wordclock, or video sync
- Twenty-four balanced analog I/O
- Twelve pairs of AES Digital I/O
- Fiber MADI guarantees pristine audio
- Embedded control data simplifies cabling and operation
- Analog input/output metering via 24 tricolor LEDs
- 56- or 64-channel MADI modes
- Supports Fs and 2Fs formats in either high-speed or legacy modes
- USB interface for firmware updates
- Compact 2U rack enclosure
- Redundant PSUs as standard
In the Box Solid State Logic Alpha-Link LIVE-R 3 x US / EU / JP Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic Alpha-Link LIVE-R in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 726912X1 Specs | | | Image Processing | Quantization | | Sample Rates | 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz | | Sample Rate Conversion | Conversion Range: 4 to 212 kHz
AES port A input only
Dynamic Range (A-weighted): 128 dB

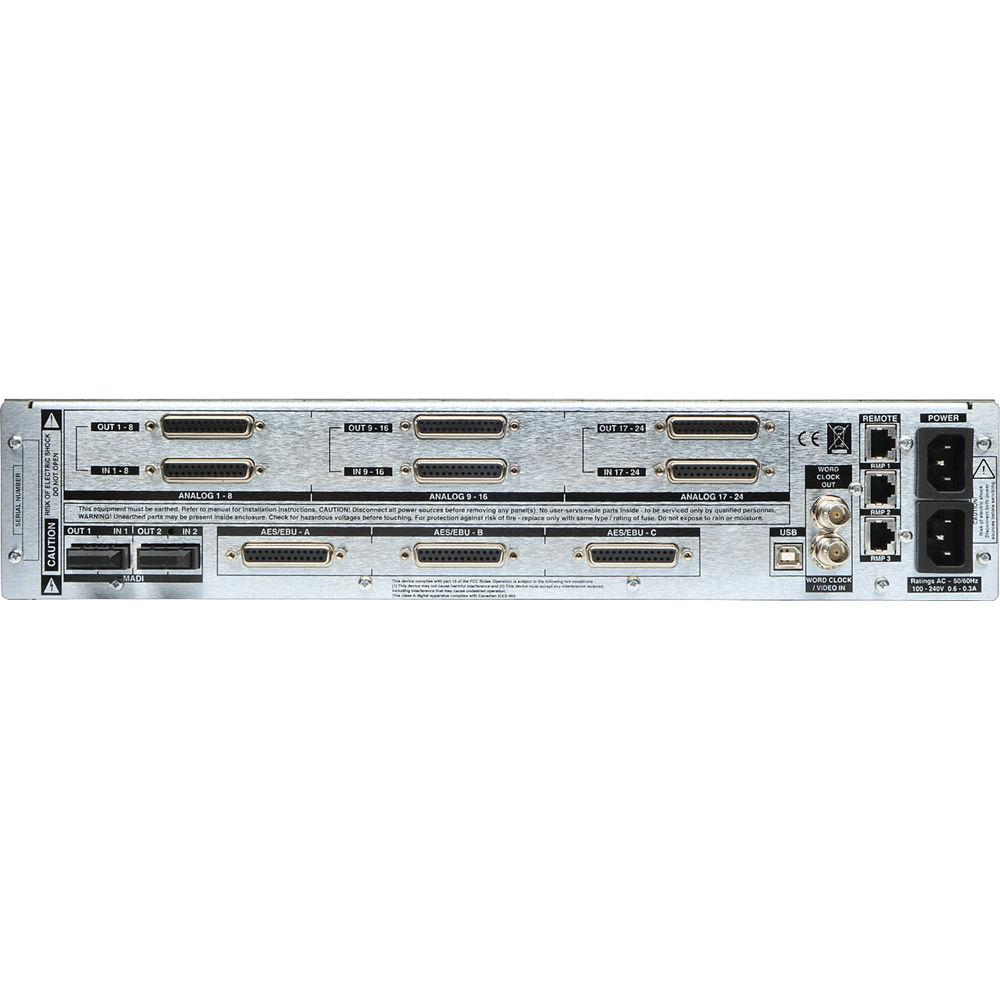

THD+N (1 kHz at -60 dB): -125 dB | | Analog I/O | Levels: Balanced, 14 dBu to 24 dBu maximum (selectable from front panel) | | | | Power | 2 x IEC320 3-pin connector, 100 to 240 VAC, 50 to 60 Hz | | Analog I/O | 6 x 25-pin D sockets provide 24 input and 24 output channels (8 in/out per socket) | | AES/EBU | I/O: 3 x 25-pin D socket, Zin/out ≈ 110 Ω, balanced and isolated providing 24 input / 24 output channels (8 in/out per socket) | | MADI | I/O: 2 x twin SC type chassis sockets (main and backup), glass multimode fiber 50 / 125 μ (65 / 125 μ compatible), provides 64 channels at 48 kHz | | USB | 1 x type-B chassis socket (for firmware upgrades) | | World Clock | 75 Ω BNC, Zin ≈ 75 Ω, 3 V 3 / 5 V TTL compatible | | Remote | 3 x 8 P8c modular connector; RJ-45 type | | | | Operating Voltage | 100 to 240 VAC, 50/60 Hz | | Power Consumption | <30 W | | World Clock | Connector Style: BNC | | Temperature | Operating: (5 to 30°C)
Non-Operating: (-20 to 50°C)
Maximum Gradient: (15°C/hour) | | Relative Humidity | Operating: 20 to 80%
Non-Operating: 5 to 90%
Maximum Wet Bulb (Non-Condensing): 29°C | | Vibration | Operating: <0.2 G (3 to 100 Hz)
Non-Operating: <0.4 G (3 to 100 Hz) | | Shock | Operating: <2 g (maximum 10 ms)
Non-Operating: <10 G (maximum 10 ms) | | Altitude | Above Sea Level
Operating: 0 to 3,000 m
Non-Operating: 0 to 12,000 m | | Testing Parameters | EMC Performance Criteria:
Line level inputs and outputs
Measure at mid gain, noise <-56 dBu |
