User Manual for Solid State Logic Fusion Analog Stereo Outboard Processor Click to enlarge the picture
Contents of the user manual for the Solid State Logic Fusion Analog Stereo
- Product category: Dynamics Processors Solid State Logic
- Brand: Solid State Logic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solid State Logic Dynamics Processors
 |
User manual for the Solid State Logic Fusion Analog Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solid State Logic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solid State Logic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solid State Logic product will considerably shorten its lifespan!
|

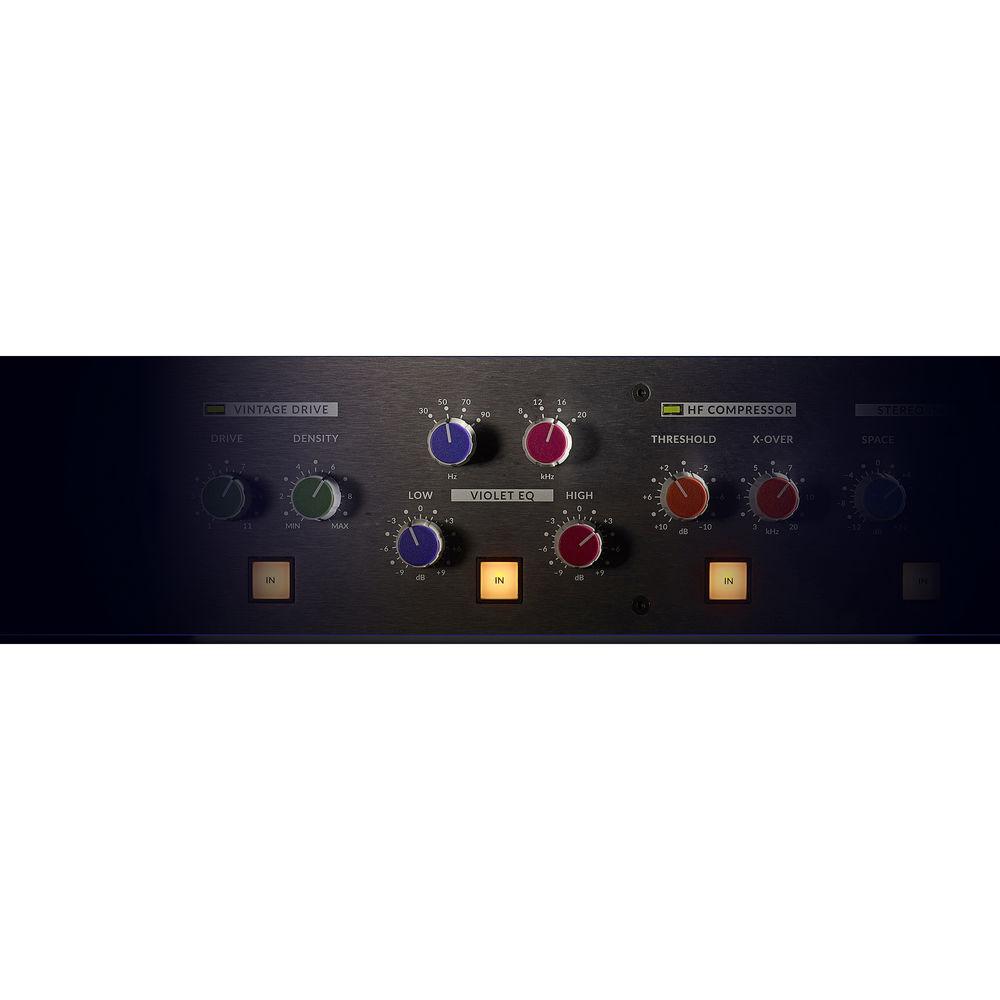

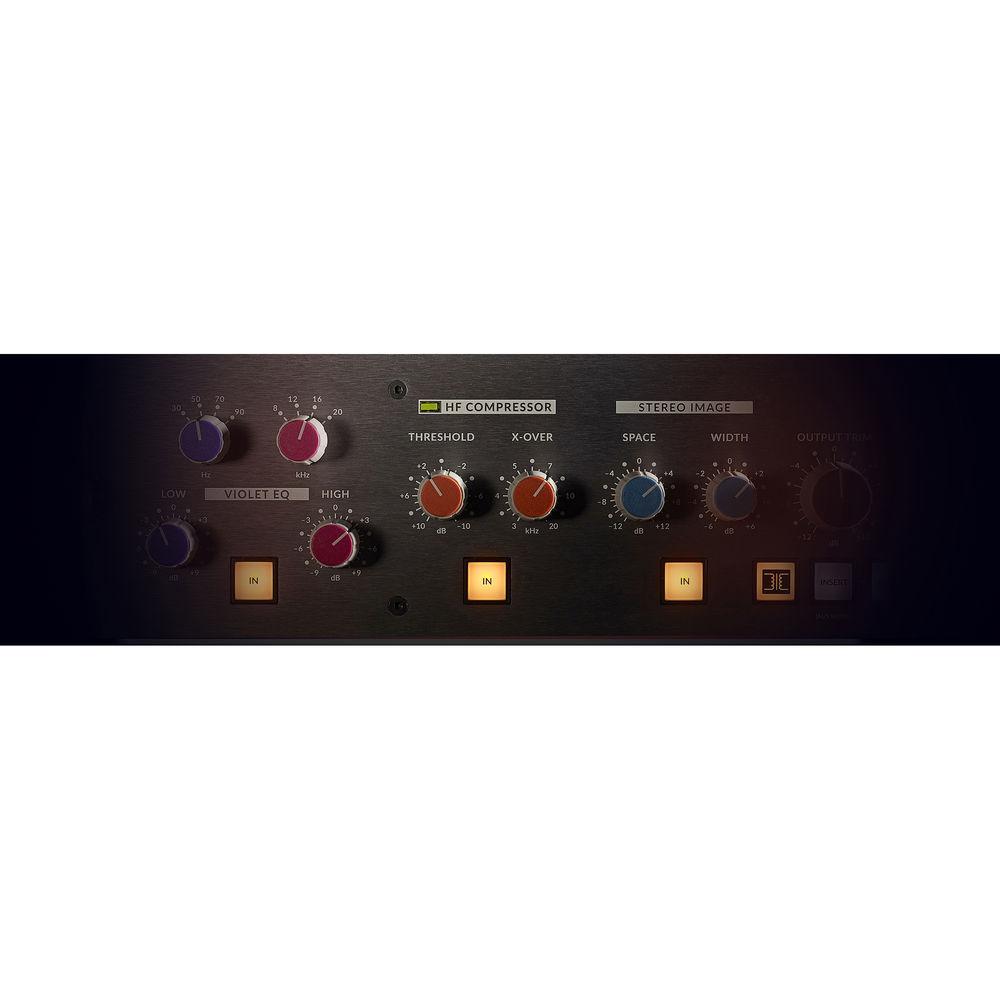

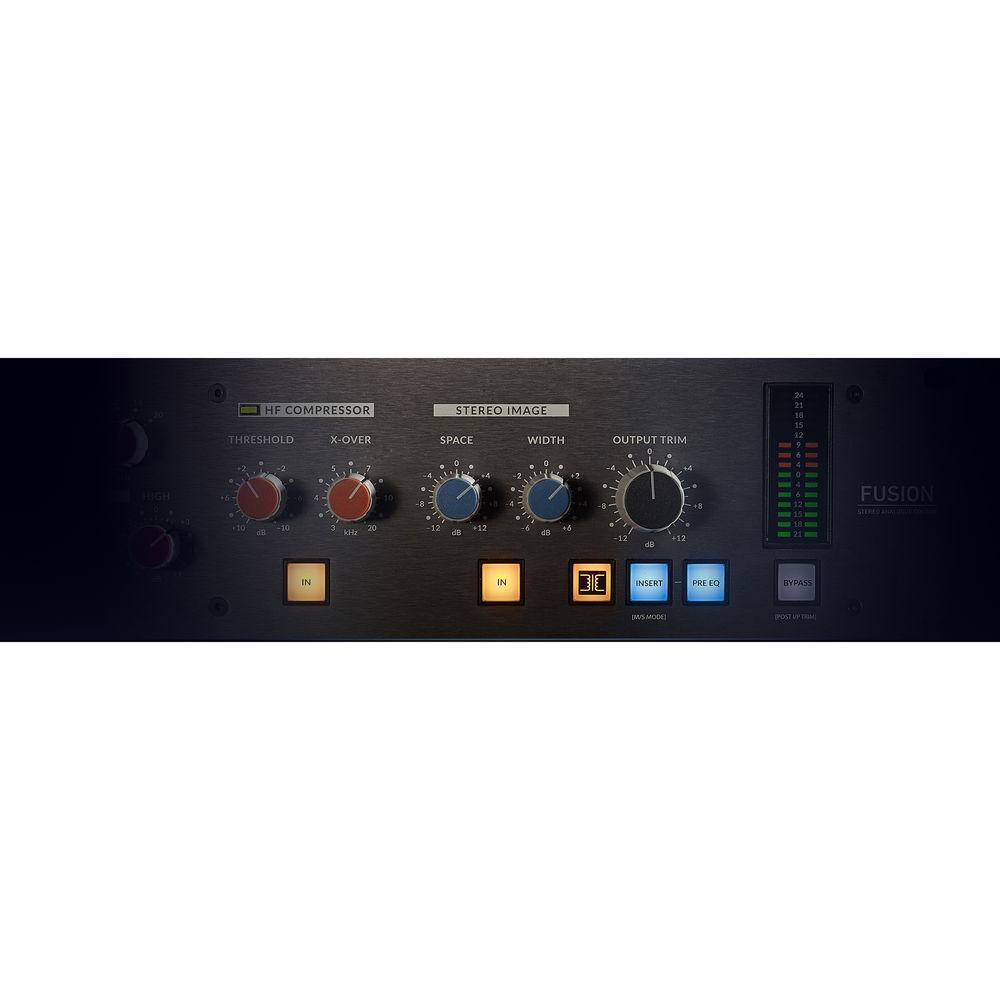

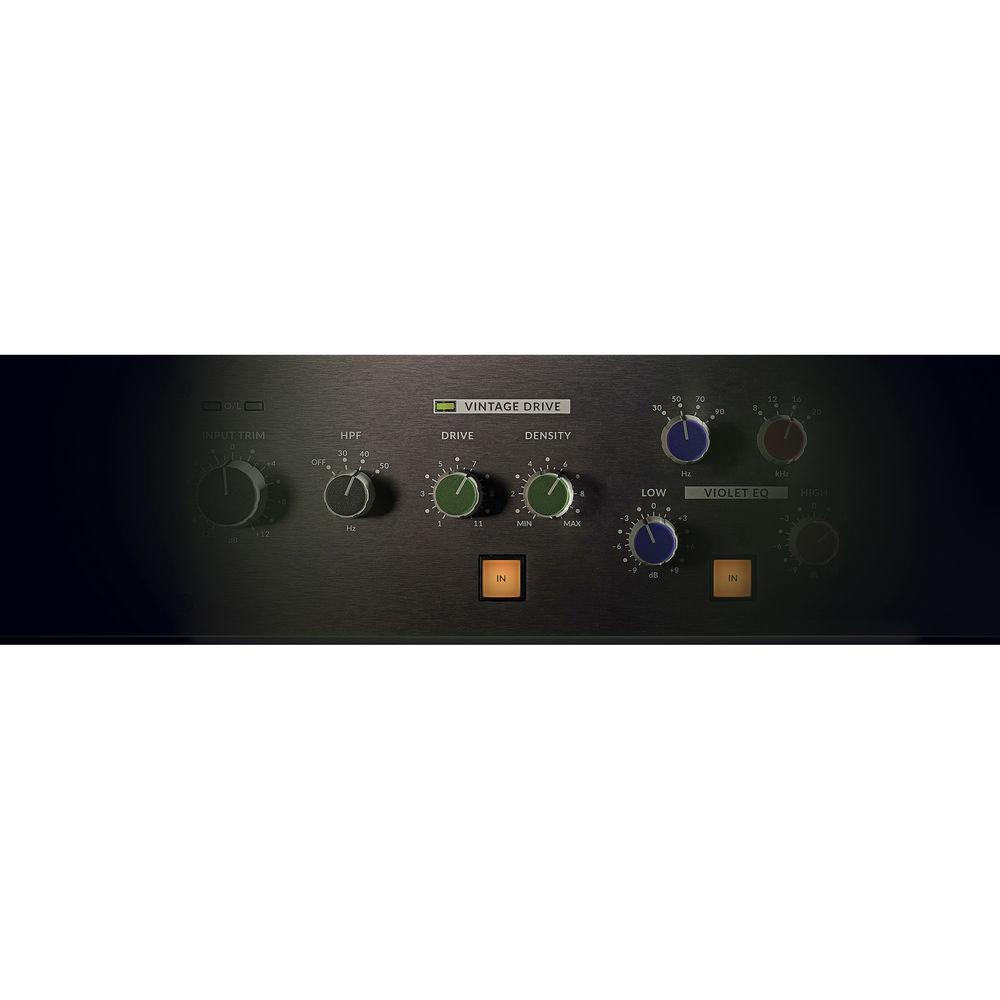

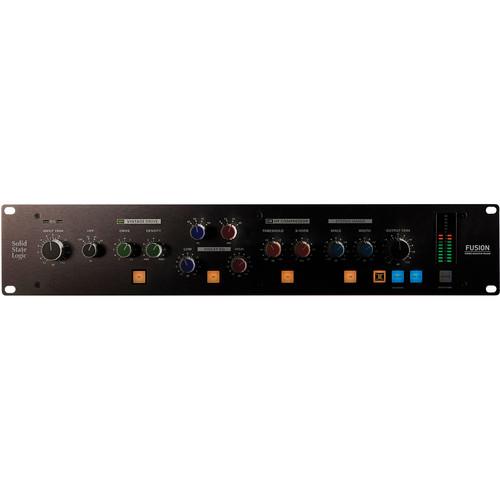

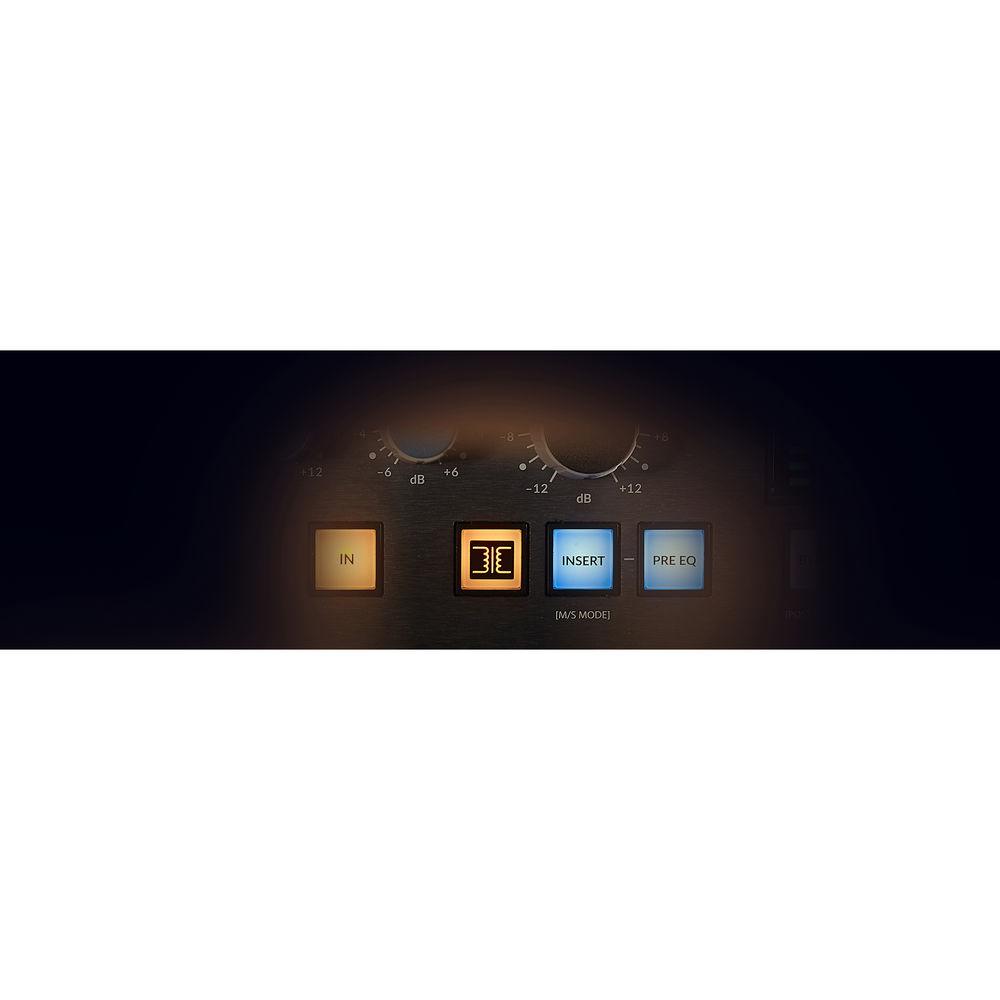

Product description The Solid State Logic Fusion is an analog stereo outboard processor offering an array of circuits and controls optimized for sweetening stems or full mixes. Well suited for use in traditional or hybrid studios and occupying just 2 RU of rack space, the Fusion features five main analog processors—Vintage Drive (harmonic enhancement), Violet EQ (2-band shelving EQ), HF Compressor (high-frequency compression with a subtle high-frequency roll-off), Stereo Image (Mid-Side spatial adjustment), and Transformer (custom-designed transformer circuit with low-end harmonics and top-end phase shift). Patch in additional outboard gear via the stereo XLR insert jacks, which can be configured for true stereo or Mid-Side, and switched to different points in the Fusion's signal flow. The main inputs and outputs are also presented on balanced XLR 3-pin connectors. Separate input and output trims allow up to 12 dB of boost or attenuation for easy management of levels. A dedicated LED indicates input overloading, while the 15-segment stereo master meter can display input or output levels. Quickly tame problematic bass frequencies via the adjustable high-pass filter at 30, 40, or 50 Hz. - Vintage Drive
- The Vintage Drive is a non-linear harmonic enhancement circuit designed to bring cohesion and strength to your mix. Drive and Density controls interact to produce harmonic saturation and soft compression derived from overloading an analog circuit. It can be used lightly for subtle thickening saturation or driven hard for more extreme distortion.
- Violet EQ
- The Violet EQ is a minimum phase-shift, two-band shelving EQ. It draws on the SSL legacy of carefully selected frequencies and response curves to create a musical and intuitive EQ designed to quickly dial in low-end weight and high-end sheen. High- and low-frequency circuits each offer four switched frequency points and
|
Upload User Manual
Have you got an user manual for the Solid State Logic Fusion Analog Stereo Outboard Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic Fusion Specs | Function | Analog stereo bus processor (harmonic enhancer, equalizer, high-frequency compressor, stereo image enhancer, and switchable transformer) | | Number of Channels | 2 | | Inputs | 2 x XLR 3-pin female | | Outputs | 2 x XLR 3-pin male | | Inserts | 2 x XLR 3-pin male sends
2 x XLR 3-pin female returns | | Input Impedance | 10 kOhms | | Maximum Input Level | 27.5 dBu at 1% THD | | Compression Threshold | -10 to +10 dB | | Compression Ratio | Not specified by manufacturer | | Attack Time | Not specified by manufacturer | | Release Time | Not specified by manufacturer | | Output Impedance | 75 Ohms | | Maximum Output Level | 27.5 dBu at 1% THD | | Make-up Gain |
