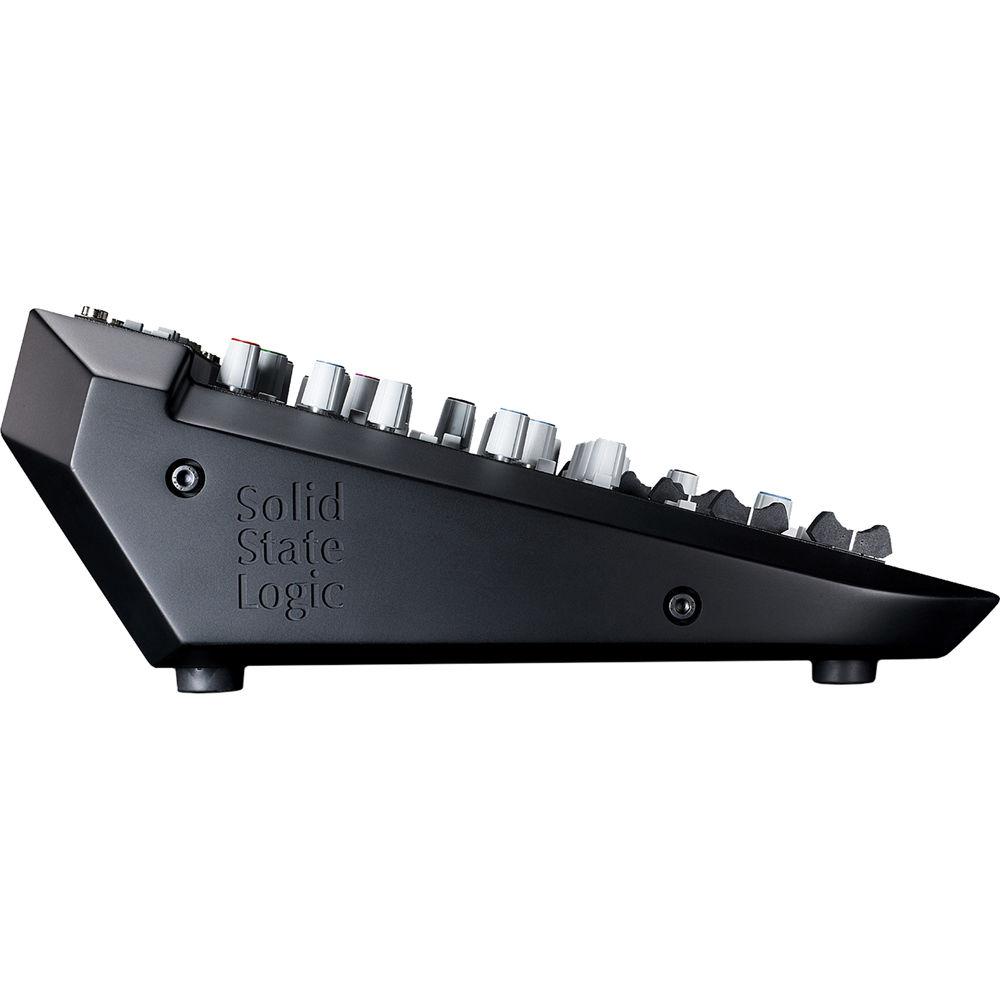

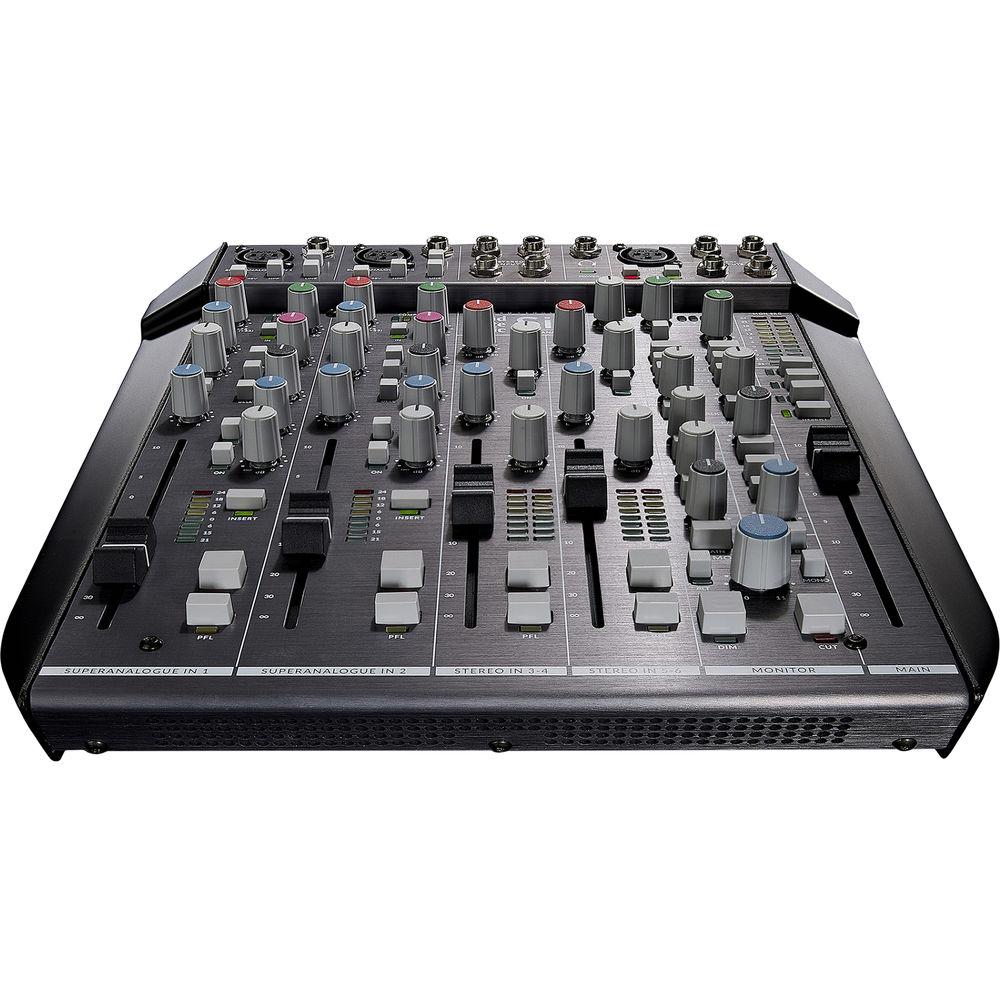

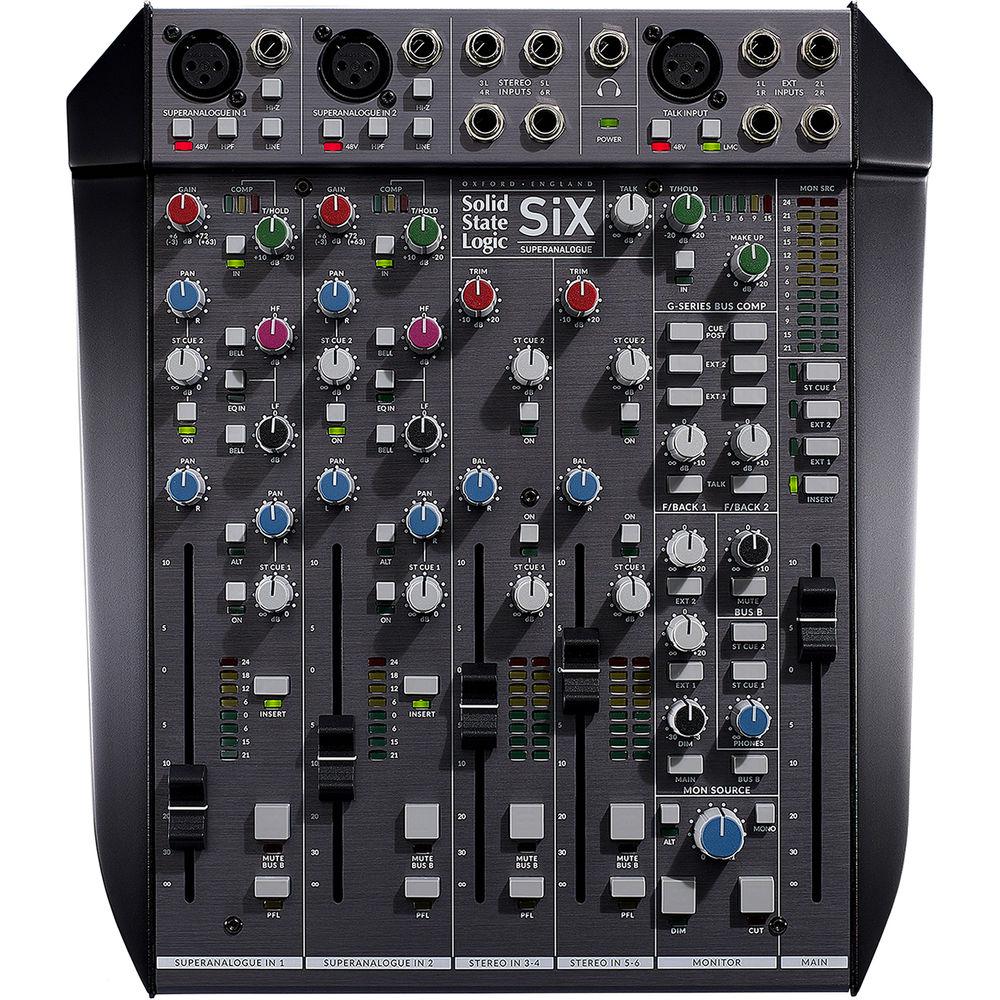

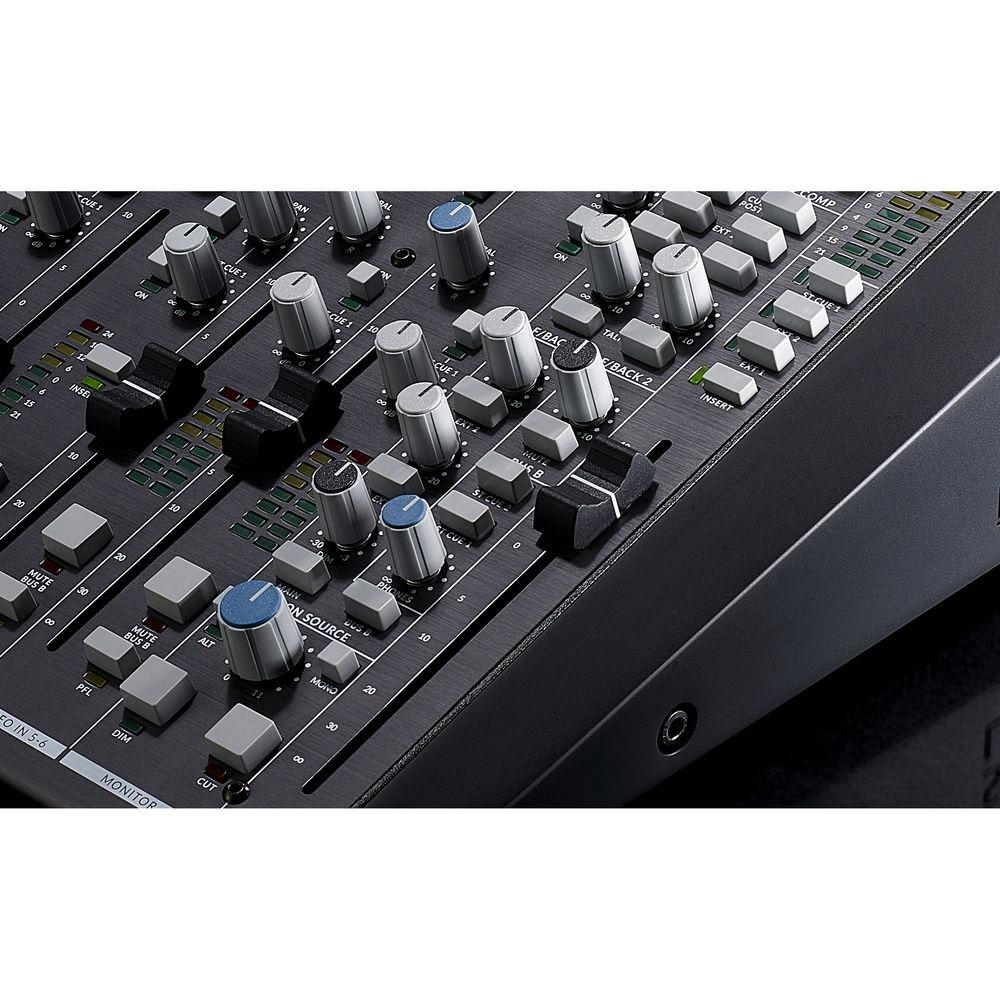

Product description - SSL SiX - The Ultimate Desktop Mixer
Inspired by 40 years of legendary large-format SSL consoles, the Solid State Logic SiX is a 4-channel SuperAnalogue desktop mini mixer offering SSL's high-end sonic signature, powerful analog processing, and versatile configurability in a frame that's equally at home stationed in a studio or living life on the road. It features two mono input channels—each containing a console-grade SuperAnalogue microphone preamp with phantom power, a high-pass filter, and up to 72 dB of gain, plus a line / Hi-Z 1/4" input—and two stereo input channels. The mono channels boast single-knob compressors, 2-band EQ, and balanced insert points for flexible onboard and outboard processing, and all channels are outfitted with smooth 100mm faders.Fully equipped to function as the hub for your recording session operations, the SiX provides a 3-pin XLR talkback mic input with selectable phantom power and LMC (SSL's heralded Listen Mic Compressor), 45 dB of gain, and adjustable output level. Separate talk buttons enable the talkback signal to be sent to either or both of the two cue buses, which can be sourced from the channel cue sends or external inputs. Connect the rear-panel 1/4" foldback outputs to your headphone amps, and plug in control room headphones to the top-panel headphone jack. After all recording is done, this desktop console grants 12-input summing at mixdown. With a G-Series stereo bus compressor on the main mix bus, a pre-fader mix insert, and an alternate B bus (great for parallel mix compression), the SiX is highly capable of handling in-demand mixing styles. Also, its comprehensive control room section accommodates two sets of speakers, source selection, and easy access to mono, dim, and mute functions. - Compact desktop-friendly design with angled top panel for ergonomic access to controls
- Functions as a 4-channel (two mono and two stereo) recording mixer or a 12-input summing mixer
- Ideal for studio-based music and post production, live stage applications, podcasting, and more
- Delivers +27 dBu headroom, wide dynamic range, ultra-low noise and distortion, and precise imaging
- Fully balanced signal path except for the headphone output
- Two mono channels with SuperAnalogue mic preamps, individually switchable phantom power, 1/4" line/Hi-Z inputs, 75 Hz high-pass filters, and balanced insert points
- Single-knob channel compressors feature signal-dependent attack, release, and ratio parameters with automatic make-up gain and adjustable threshold
- E-Series style, gentle, 2-band channel equalizers with up to 15 dB of boost/cut, selectable shelving (at 3.5 kHz and 60 Hz) or bell (at 5 kHz and 200 Hz) modes, and in/bypass buttons
- Long-throw 100mm faders on all channels and main bus
- Two stereo cue sends with independent level and pan controls
- Per-channel PFL solo and 8-segment LED meters
- Channel mute buttons reroute signal away from the main bus to the B bus
- Two stereo input channels with -10 to +20 dB trim for line sources such as synthesizers, drum machines, and more

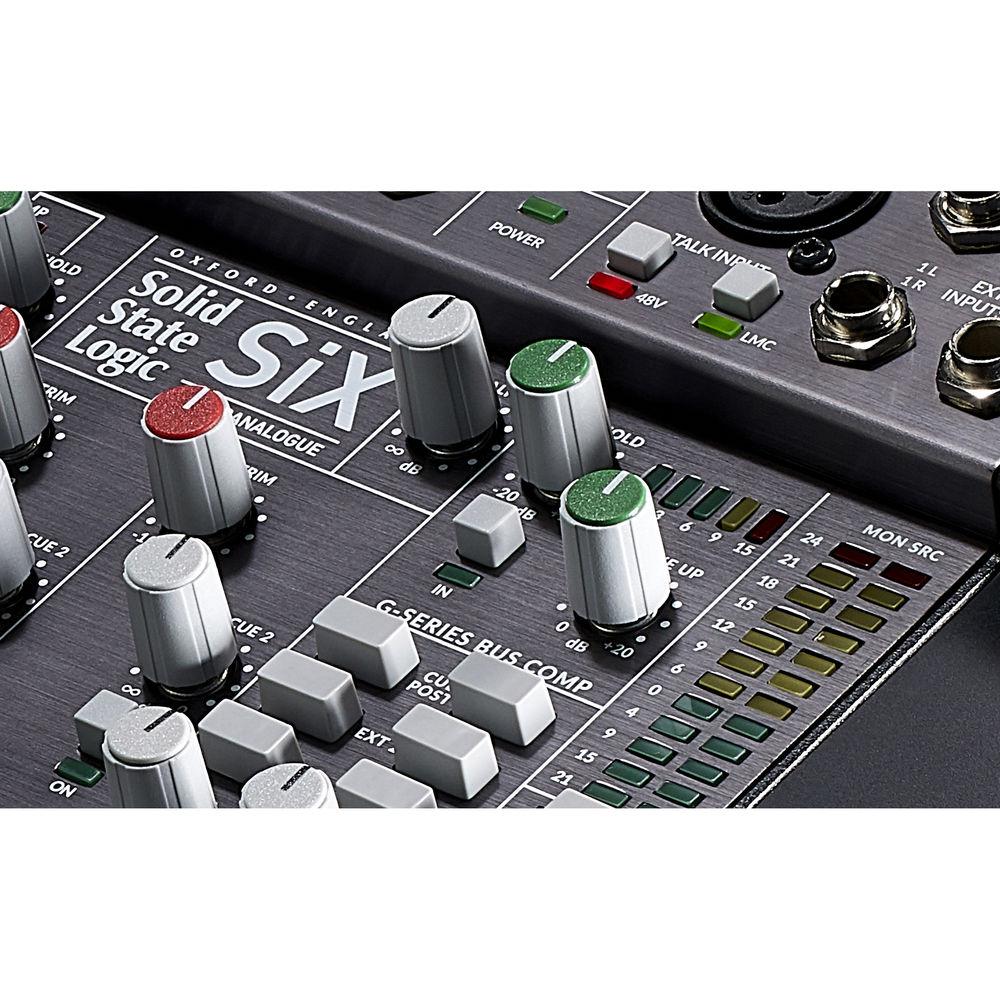

- G-Series Bus Compressor on the main mix bus; fixed ratio, attack, and release settings give you the classic SSL glue in an instant
- Two external stereo inputs with adjustable levels
- Flexible control room section with main and alt speaker outputs, mono and mute switches, and adjustable dim
- External talkback mic input with phantom power, 45 dB of gain, selectable LMC (Listen Mic Compressor), and adjustable output level
- Meters have defined segments for +24 dBu and +18 dBu to match the two most common 0 dBFS alignment standards (EBU at 0 dBFS = + 18 dBu, and SMPTE at 0 dBFS = +24 dBu)
- Gain reduction LED meters for channel compressors and main bus compressor
- External power supply with locking connector moves the power supply's electromagnetic interference away from the SiX's audio circuits, allowing uncompromising bandwidth with accurate phase and transient response
- Power rails are ramped on power-up to minimize thumps on monitor and headphone outputs
UPC: 878076001371 In the Box Solid State Logic SiX 4-Channel SuperAnalogue Desktop Mini Mixer External Power Supply with 5-Pin XLR Connector IEC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic SiX 4-Channel SuperAnalogue Desktop Mini Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729750X2 Specs Total # Of Inputs | Recording: 6 Summing: 12 | Mic/Line Inputs | 2 x 3-Pin XLR Female Mic Input 2 x 1/4" TRS Line/Hi-Z Input | Stereo Line Inputs | 4 x 1/4" TRS (Two Stereo Pair) | External Input | 4 x 1/4" TRS External Input (Two Stereo Pair) | Talkback Mic Input | 1 x 3-Pin XLR Female | AUX Sends | 2 x Stereo Aux Send per Channel | AUX Returns | None | Inserts | 2 x Channel Insert Send and Return via DB25 Connector 1 x Main Mix Stereo Insert Send and Return via DB25 Connector | BUS (Group) Outputs | 2 x 1/4" TRS Bus B Output | Main Outputs | 2 x 3-Pin XLR Male 1 x DB25 with Duplicate Main Mix Output | ALT I/O | 2 x Alt Channel Input via DB25 Connector | Monitor Outputs | 2 x 1/4" TRS Main Monitor Outputs 2 x 1/4" TRS Alt Monitor Outputs 1 x DB25 with Duplicate Main Monitor Outputs 4 x 1/4" TRS Foldback (Cue Mix) Outputs | Headphone Output | 1 x 1/4" TRS Stereo Headphone Output | Compressor | Channel Compressor Ratio: 2:1 Channel Compressor Threshold: +10 to -20 dB Typical Channel Compressor Attack Time: 8 to 30 ms Channel Compressor Release Time: 300 ms Bus Compressor Ratio: 4:1 Bus Compressor Threshold: +20 to -20 dB Bus Compressor Make-Up Gain: 0 to +20 dB Bus Compressor Sidechain HPF: 6 dB/Octave at 50 Hz | EQ Section | HF in Shelving Mode: ± 15 dB at 3.5 kHz LF in Shelving Mode: ± 15 dB at 60 Hz HF in Bell Mode: ± 15 dB at 5 kHz LF in Shelving Mode: ± 15 dB at 200 Hz | Solo/Mute | PFL Solo per Channel Mute / Bus B per Channel | Channel Level Control | -Inf to +10 dB via 100 mm Fader | Trim/Gain Control | Mic: +6 to +72 dB Mono Line: -3 to +63 dB Stereo Line: -10 to +20 dB | Phantom Power | +48 VDC Individually Selectable | Metering | Mono Channels: 8-Segment LED Meters Stereo Channels: Dual 8-Segment LED Meters Monitor Source: Dual 12-Segment LED Meter | Input Impedance | Mic: 1.2 kOhms Hi-Z: 1 MOhm Mono Line: 10 kOhms Stereo Line: 10 kOhms | Output Impedance | Mono Channel to Main Output: 100 Ohms | Maximum Input Level | Mic: +21 dBu Mono Line/Hi-Z: > +27 dBu Stereo Line: > +31 dBu | Headroom | Mono/Stereo Input: > +27 dBu Channel Compressor: > +26 dBu Channel EQ: > +27 dBu Mono Channel to Main Output: >24 dBu into 600 Ohms, >27.5 dBu into 10 kOhms | Frequency Response | Mono/Stereo Input: 20 Hz to 20 kHz (+0.1 dB, -0.3 dB) Channel Compressor: 20 Hz to 20 kHz (± 0.9 dB) Mono Channel to Main Output: 20 Hz to 20 kHz (+0.1 dB, -0.3 dB) | THD + N | Mic: <0.0015% at 1 kHz Mono Line: <0.0015% at 1 kHz Stereo Line: <0.0007% at 1 kHz Channel Compressor: < 0.03% at 1 kHz and +10 dBu, <0.5% Typical at 1 kHz and +20 dBu Channel EQ: <0.0015% at 1 kHz Mono Channel to Main Output: <0.0015% at 1 kHz | CMRR | Mic: >80 dB Mono Line: >70 dB Stereo Line: >50 dB | Equivalent Input Noise | Mic: < -127.5 dBu (-129 dBu Typical) Mono Line: < -110 dBu Stereo Line: < -93 dBu | Noise | Channel Compressor: < -90 dBu Channel EQ: < -88 dBu Main Output with One Channel Routed: < -90 dBu (< -116 dB with Respect to +26 dBu) Main Output with All Channels Routed: < -85 dBu (< -111 dB with Respect to +26 dBu) | Accuracy | Pot Center-Detent Accuracy:
