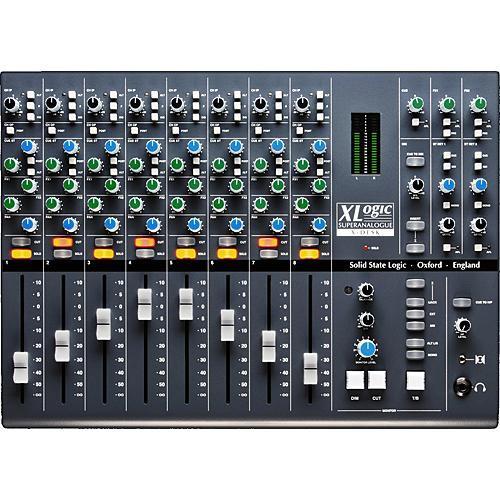

Product description The X-Desk from Solid State Logic is a 16 channel summing mixer that also acts as the analog audio hub of your studio. It has a clever and impressively flexible input and output scheme on D-Sub connectors that make it a useful tool in a variety of recording studio applications. With multiple monitor outputs and comprehensive monitoring controls, a talkback section, and many other features, the X-Desk acts as an indispensable utility with world-class audio and build quality. You can use the X-Desk during tracking, taking the feed from microphone preamps, DI boxes, and line-level sources, and sending them to a DAW or recording device while also patching together a cue mix for the artists. The X-Desk can also be used during mix down. You can reassign the cue channels to accept an alternate input, essentially transforming it into a 16 channel summing mixer. The main stereo mix bus features an insert (that can be used for a stereo master bus compressor). There are also inserts on every channel, as well as aux sends and returns. The idea behind the X-Desk is to bring the audio performance of larger SSL consoles to a compact, portable format. The X-Desk accomplishes this by featuring the same SuperAnalogue DNA found in SSL's acclaimed AWS 900+, Duality, and Matrix consoles. In the event that you require a larger console, several X-Desk units can be cascaded together for a total of 160 channels. It can also cascade with SSL's X-Rack systems. The X-Desk fits in a standard 19" rack (rack ears included, requires 7 spaces), but it's just as at home on your desk as the centerpiece of your studio. Complete with accurate bar graph metering and smooth 100 mm faders (with pre and post buttons on every channel), the X-Desk ties together the separate elements of your studio, and does so with uncompromising audio circuitry. - SuperAnalogue - audio purity at the highest level
- 8 dual input mono line channels, 16 channel mixdown
- 8 insert send/return channels
- Stereo CUE and 2 mono auxiliary sends
- Cascade with X-Rack and other X-Desks for bigger systems
- Talkback system for artist communication
- Independent main and alternate stereo monitor outputs
- SSL stereo mix bus with external summing and inserts
- 2 stereo returns with level, pan, and bus assignment
- iJack front panel input for portable playback devices
- High quality internal PSU
- D-sub channel I/O connection for studio integration
- 19" rack mount ears included
UPC: 878076000640 In the Box Solid State Logic X-Desk - 16 Channel Summing Mixer/Audio Hub Mixing Console Power Cord Rack Mount Ears Installation Guide 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Desk - 16 Channel Summing Mixer Audio Hub Mixing Console in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic X-Desk Specs | Total # Of Inputs | 16 (8 Dual Input Mono Line Channels) | | Mic/Line Inputs | 16 Channels on 25-Pin D-Type Sockets, 8 Primary & 8 Alt Inputs | | Stereo Line Inputs | 1 x 3.5 mm Stereo Mini-Plug (iJack) | | AUX Sends | Insert Sends for Channels 1 - 8 | | AUX Returns | Insert Returns for Channels 1 - 8 | | 2 Trk Master I/O | 2 x Male XLR (Zo 100 Ohm) | | ALT I/O | 2 x Male XLR (Zo 100 Ohm)
Direct Outputs from Channels 1 - 8 on D-Sub, Individually Selectable Pre or Post X-Desk Link In & Out on D-Sub X-Rack Expansion D-Sub (to connect to an X-Rack with input modules) | | Monitor Outputs | 1 x 1/4" Zo 40 Ohm Headphone (with Volume Level Knob) | | EQ Section | None | | Solo/Mute | 8 x Illuminated Cut (Mute) Buttons
8 x Illuminated Solo Buttons (with Separate Solo Indicator Light) | | Channel Level Control | 100 mm Analog Faders | | Trim/Gain Control | 8 x +/- 20 dB Knobs with Indented Center Point for Unity | | Phantom Power | None | | Metering | Yes, Stereo Bargraph Level Metering of Mix Bus or AFL / Solo | | Frequency Response | Channel Line/Alt In to Channel Out (post fader):
10 Hz - 40 kHz (+/- 0.2 dB) Channel Line/Alt In to Mix Buss (single fader):
10 Hz - 40 kHz (+/- 0.3 dB) | | THD + N | Channel Line/Alt In to Channel Out (post fader):
< 0.05% (20 Hz - 20 kHz) Channel Line/Alt In to Mix Buss (single fader):
< 0.05% (20 Hz - 20 kHz) | | Noise | Channel Line/Alt In to Channel Out (post fader):
< -83 dBu (20 Hz - 20 kHz) Channel Line/Alt In to Mix Buss (single fader):
< -77 dBu (20 Hz - 20 kHz) | | Headroom | Channel Line/Alt In to Channel Out (post fader):
> +24 dBu (into 10 kOhm) Channel Line/Alt In to Mix Buss (single fader): | | Power Supply | High Quality Internal Power Supply | | Dimensions | With Rack Ears:
12.25 x 4.75 x 19" (310 x 120 x 484 mm) | | Weight | 10.5 lbs (4.8 kg) | | | | Package Weight | 17.9 lb | | Box Dimensions (LxWxH) | 23.5 x 18.8 x 10.9" |
