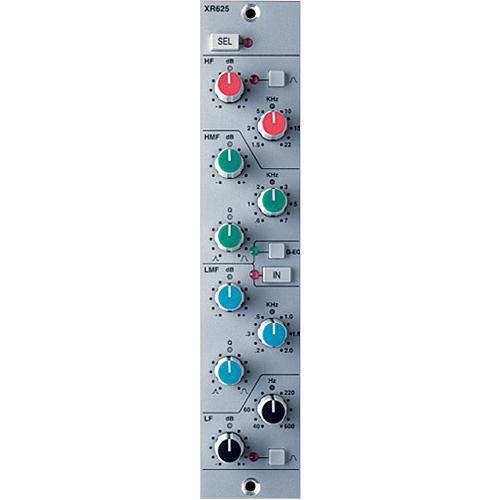

Product description The X-Rack Channel EQ Module, XR625 from Solid State Logic is a 4-band EQ module that requires the use of an X-Rack or Mynx enclosure. Designed for users of Digital Audio Workstations and other audio/post applications, the EQ can be combined with any number of other modules to achieve a scalable system that features the legendary SSL sonic signature. The module delivers the legendary SSL twin-curve E and G series EQ with the low-mid and high-mid frequencies being fully-parametric with variable "Q", and the high- and low-frequency bands featuring shelf/bell control. The module input and output gains can be set to operate at a nominal level of either +4dBu or -10dBV, using a switch on the connector panel. Note: Module requires an X-Rack or Mynx chassis to function - EQ module for SSL's X-Rack and Mynx systems that delivers two different sets of curves
- Direct copy of the XL 9000 K EQ currently used in the Duality and AWS900+ consoles
- The G-EQ button switches the EQ from the classic SSL "E" Series operation to SSL's "G" EQ
- Selecting the G-EQ button provides a slightly steeper slope for both sections with a degree of overshoot/undershoot
- At any Q setting, the bandwidth of the high-mid and low-mid frequency sections vary with gain, with an increase in boost or cut increasing the selectivity of the EQ
- The high-frequency and low-frequency sections provide shelving equalizers with variable turnover frequency and a gentle slope
In the Box Solid State Logic X-Rack Channel EQ Module One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Rack Channel EQ Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729625X1 Specs | Filter Type | Parametric and shelving | | Number of Channels | Single | | Inputs | 1 x XLR | | Outputs | 1 x XLR | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | HF Shelving: 1.5kHz to 22kHz, variable
LF Shelving: 40Hz to 600Hz, variable
HMF Parametric: 600Hz to 7kHz, variable
LMF Parametric: 200Hz to 2.5kHz, variable | | Bandwidth | HF Shelving: Q = 2.5
LF Shelving: Q = 2.5
HMF Parametric: Q = variable from 0.5 to 2.5 (may also vary with gain)
LMF Parametric: Q = variable from 0.5 to 2.5 (may also vary with gain) | | Range (Boost/Cut) | HF, HMF and LMF: +/-20dB
LF: +/-16.5dB | | Maximum Output Level | +26dBu | | Frequency Response | 20Hz to 20kHz, +/-0.5dB (-3dB at 200kHz) | | Dynamic Range | Not specified by manufacturer | | Noise | <-83dBu (+4dBu operating level) | | Dimensions (WxDxH) | 1.4 x 7.9 x 6.8" (35 x 200 x 171mm) | | Weight | 9.5 oz (260g) | | Specialties | The LF and HF bands have variable turnover frequency with switchable bell/shelving and selectable response curves | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 10.9 x 7.3 x 2.6" |
