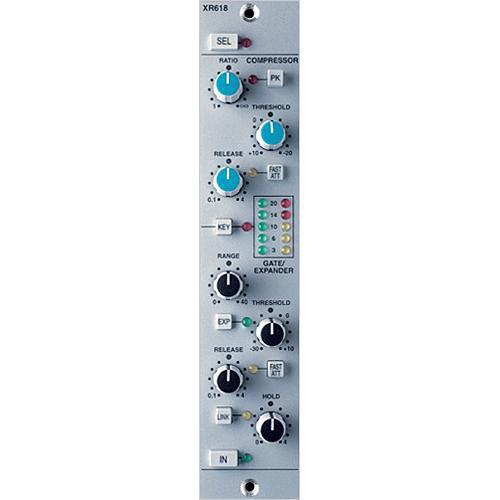

Product description The X-Rack Dynamics Module, XR 618 from Solid State Logic provides a single channel of dynamics for an X-Rack or Mynx enclosure. The unit was designed around the same SuperAnalogue circuitry as used in SSL's XL 9000 K console, and provides compression, limiting, expansion and gating. The compressor/limiter and a gate/expander both share the same gain element. The compressor normally has an "over-easy" characteristic, but can be switched to peak sensing, which replaces the "over-easy" characteristic with a "hard knee." With a number of options for hard or soft knee operation, and peak or RMS sensing, the module is able to deliver fantastic sound quality, with very low noise and distortion. The gate/expander section can act as an infinity:1 gate, or as a 2:1 expander. Variable hysteresis (dependence of the state of a system on the history of its state) is incorporated in the threshold circuitry to prevent spurious triggering of the gate when the signal is close to the threshold level. This means that the signal has to decay roughly 2dB below the threshold level before the gate will start to close. Note: Module requires an X-Rack or Mynx chassis to function - Single channel, modular dynamics processor based around SSL's XL 9000 K SuperAnalogue console circuitry
- Comprises a compressor/limiter and a gate/expander, both of which use the same gain element
- "Key" side chain input on the rear panel of the unit allows for external control of the dynamic process
- The side chain control signals of multiple modules can be linked
- When two (or more) Dynamics sections are linked, whichever section has the most gain reduction will control the other section
- Dual five-LED ladders display gate/expander functioning
In the Box Solid State Logic X-Rack Dynamics Module One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Rack Dynamics Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729618X1 Specs | Function | Compressor/limiter and expander/gate | | Number of Channels | Single | | Inputs | 1 x XLR Main
1 x XLR Key Input | | Outputs | 1 x XLR | | Maximum Input Level | Not specified by manufacturer | | Compression Threshold | +10dB to -30dB, variable | | Compression Ratio | 1 to infinity (limit) | | Attack Time | Normally auto sensing, switchable to 1mSec | | Release Time | Variable from 0.1 to 4 seconds | | Gate Threshold | -30dB to +10dB, variable | | Gate Rate | Attack: Normally auto-sensing, switchable to 150µs
Hold: Variable from 0 to 4 seconds
Release: Variable from 0 to 4 seconds | | Maximum Output Level | +26dBu | | Make-up Gain | No | | Frequency Response | 20Hz to 20kHz, +/-0.2dB (-3dB at 130kHz) | | Dynamic Range | Not specified by manufacturer | | Noise | THD + N (+10dBu applied): < 0.01% at 1kHz (all pots anti-clockwise and switches "out" except for Dynamics "in") | | Dimensions (WxDxH) | 1.4 x 7.9 x 6.75" (35 x 200 x 171mm) | | Weight | 9.5 oz (260 g) | | Specialties | When turned fully clockwise, the range control allows for a gate depth of 40dB | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 11.0 x 7.4 x 2.8" |
