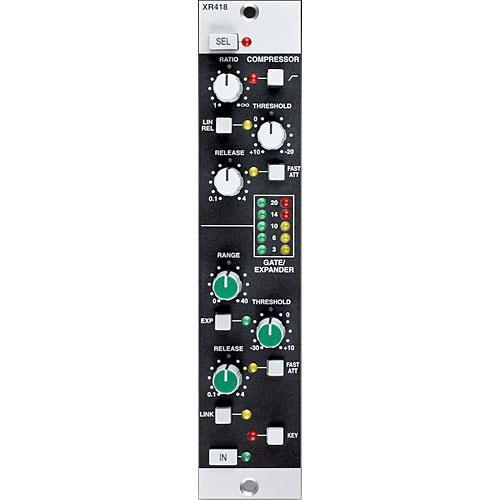

Product description The X-Rack E Series Dynamic Module, XR418 from Solid State Logic is a compressor/limiter and expander/gate module based on the classic SL 4000 E console channel strip, and requires the use of an X-Rack or Mynx enclosure. Designed for users of Digital Audio Workstations and other audio/post applications, the module can be combined with any number of other modules to achieve a scalable system that features the legendary SSL sonic signature. The side chain utilizes a true RMS converter for measuring the input signal, while the gain element is an all discrete design identical to the Class A VCA chip used in the original channel strip. The compressor also contains an option to defeat the over-easy curve and to use a linear release instead. This results in a compressor with 3 distinct voices, each with its own musical character. Note: Module requires an X-Rack or Mynx chassis to function - Dynamics module for SSL's X-Rack system or Mynx enclosure
- Comprises a compressor/limiter and an expander/gate with 3 distinct voicings
- Based on the 611E channel strip found in the various incarnations of the legendary SSL 4000 E Series consoles
- Gain element is an all discrete design, Class A VCA replication
- Features an XLR input on the rear panel for sidechaining applications
- Two (or more) Dynamics sections can be linked using the sidechain control signal- whichever section has the most gain reduction will control the other
In the Box Solid State Logic X-Rack E Series Dynamics Module One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Rack E Series Dynamics Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729718X1 Specs | Function | Compressor/Limiter Expander/Gate | | Number of Channels | Single | | Inputs | 1 x XLR
1 x XLR sidechain | | Outputs | 1 x XLR | | Maximum Input Level | Not specified by manufacturer | | Compression Threshold | +10dB to -30dB, variable | | Compression Ratio | 1:Infinity, variable | | Attack Time | 30mSec per 20dB, switchable to 3mSec ("Fast Att") | | Release Time | 0.1Sec to 4Sec, variable | | Gate Threshold | -30dB to +10dB, variable | | Gate Rate | Attack: 1.5mSec per 40dB, switchable to 100µSec
Release: 0.1Sec to 4Sec, variable | | Maximum Output Level | +26dBu | | Make-up Gain | None | | Frequency Response | 20Hz to 20kHz, +/-0.25dB | | Dynamic Range | Not specified by manufacturer | | Noise | THD+N: <0.05% at +20dBu, 1kHz | | Dimensions (WxDxH) | 1.4 x 7.9 x 6.8" (49 x 200 x 171mm) | | Weight | 9.5oz (260g) | | Specialties | Using a switch on the connector panel, module input and output can be set to operate at either +4dBu or -10dBV |
