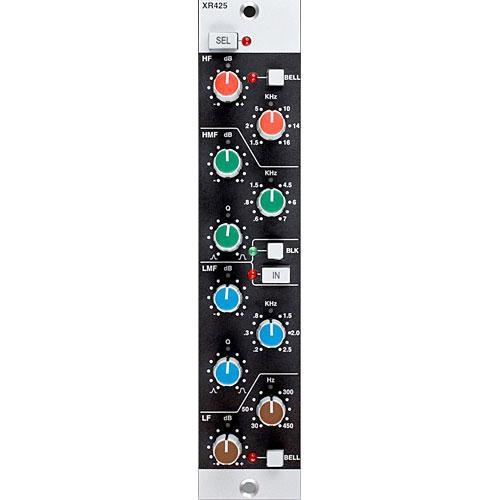

Product description The X-Rack E Series EQ Module, X425 from Solid State Logic is a 4-band EQ module that requires the use of an X-Rack or Mynx enclosure. Designed for users of Digital Audio Workstations and other audio/post applications, the EQ can be combined with any number of other modules to achieve a scalable system that features the legendary SSL sonic signature. Over the years, the original 4000E series console EQs went through various incarnations. The X-Rack E Series EQ features two of the most popular versions, the "Brown-02" and the "Black-242". A front-panel switch enables either one or the other. The main differences in the two versions are that the "Black" version has a wider Q range along with greater boost and cut as compared to the "Brown". Note: Module requires an X-Rack or Mynx chassis to function - 4-band EQ module for SSL's X-Rack system
- Based on the 611E channel strip found in the various incarnations of the legendary SSL 4000 E Series consoles
- Features both the original smooth "Brown" EQ response characteristics and the later, sharper "Black" response curves (globally switchable for all 4-bands)
- Low-mid and high-mid frequency bands are fully parametric with adjustable Q
- Bell curve option available on the high- and low-frequency bands
In the Box Solid State Logic X-Rack E Series EQ Module One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Rack E Series EQ Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729725X1 Specs | Filter Type | LF: Shelving, switchable to Bell
LMF: Parametric
HMF: Parametric
HF: Shelving, switchable to Bell | | Number of Channels | Single | | Inputs | 1 x XLR | | Outputs | 1 x XLR | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | LF: 30Hz to 450Hz, variable
LMF: 200Hz to 2.5kHz, variable
HMF: 600Hz to 7kHz, variable
HF: 1.5kHz to 16kHz, variable | | Bandwidth | Brown
LF (on BELL setting): 0.8
LMF: 0.5 to 2.5, variable
HMF: 0.5 to 2.5, variable
HF (on BELL setting): 0.8Black
LF (on BELL setting): 1.3
LMF: 0.5 to 4, variable
HMF: 0.5 to 4, variable
HF (on BELL setting): 1.3 | | Range (Boost/Cut) | Brown
+/-15dBBlack
+/-18dB | | Maximum Output Level | +26dBu | | Frequency Response | 20Hz to 20kHz, +/-0.5dB | | Dynamic Range | Not specified by manufacturer | | Noise | THD+N: <0.003% at +20dBu, 1kHz | | Power Requirements | Available via corresponding rack power supply | | Dimensions (WxDxH) | 1.4 x 7.9 x 6.8" (49 x 200 x 171mm) | | Weight | 9.5 oz (260g) | | Specialties | Using a switch on the connector panel, module input and output can be set to operate at either +4dBu or -10dBV | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 11.1 x 7.4 x 2.8" |
