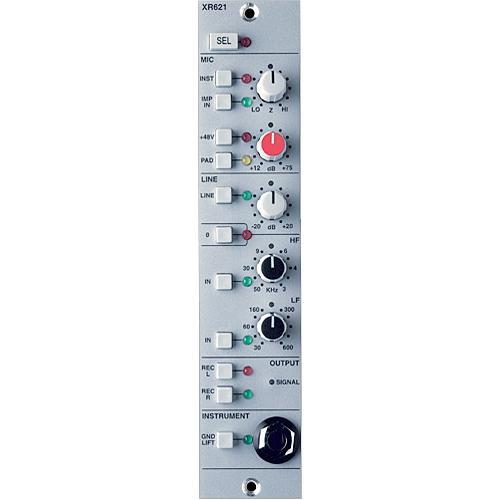

Product description The X-Rack Mic Amp Module, XR621 from Solid State Logic is a single channel microphone/line/instrument preamp, and part of the X-Rack/Mynx modular system. The preamp was designed around the same SuperAnalogue circuitry found on the SSL's XL 9000 K console, and provides 75dB of gain, variable impedance control, phantom power, and phase reverse. The module contains three separate input amplifiers - a microphone amplifier, an instrument input and a line input, any one of which may be selected at any one time. A set of high- and low-pass filters are also provided. A "pad" switch reduces the signal level of both the microphone or Instrument inputs by 20dB. The output section contains a tri-color signal present LED and two switches which route the input signal onto a common internal record bus if used with the X-Rack. The signal present indicator measures signals immediately prior to the output amplifier and canges color to represent changes in level. Note: Module requires an X-Rack or Mynx chassis to function - Single channel, modular microphone preamp based around SSL's XL 9000 K SuperAnalogue console circuitry
- Variable impedance control on microphone input
- Low- and high-pass filters, with 12dB and 18dB/octave slopes respectively
- Polarity invert switch and 48V phantom power switch
- Multiple LED indicators provide status information
In the Box Solid State Logic X-Rack Mic Amp Module One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Rack Mic Amp Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729621X1 Specs | Number of Channels | Single | | Inputs | 1 x XLR Microphone
1 x XLR Line
1 x 1/4" TS phone DI (front panel) | | Output | 1 x XLR | | Phantom Power | 48V | | Multi Function | No | | Gain Range | Mic: +12dB to +75dB
Line: -20dB to +20dB | | Maximum Output Level | +24dBu | | Frequency Response | 20Hz to 20kHz, +0.05dB/-0.1dB (-3dB at 150kHz) | | Noise | EIN: <-127dB @ maximum range | | Dimensions (WxDxH) | 1.4 x 7.9 x 6.8" (35 x 200 x 171mm) | | Weight | 9.5 oz (260g) | | Specialties | Ground lift switch on Instrument input | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.8 x 7.4 x 2.8" |
