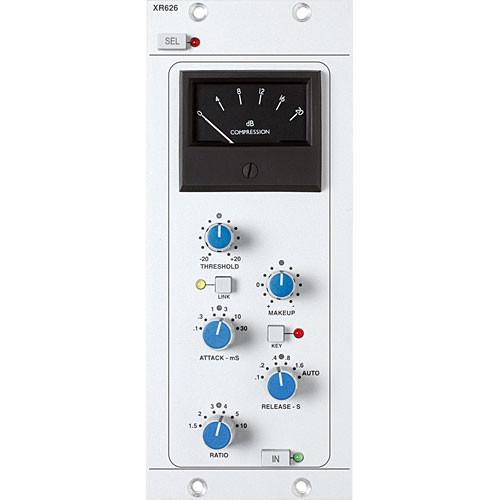

User Manual for Solid State Logic X-Rack Stereo Bus Compressor Module Click to enlarge the picture
Contents of the user manual for the Solid State Logic X-Rack Stereo Bus
- Product category: Dynamics Processors Solid State Logic
- Brand: Solid State Logic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solid State Logic Dynamics Processors
|
User manual for the Solid State Logic X-Rack Stereo Bus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solid State Logic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solid State Logic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solid State Logic product will considerably shorten its lifespan!
|
Product description The X-Rack Stereo Bus Compressor Module from Solid State Logic is a stereo compressor module that delivers the classic tonal characteristic of the G-Series console compressor but with the added benefit of a high bandwidth, ultra low noise SuperAnalogue circuit design. The module is extremely simple to operate and includes the usual threshold, attack, ratio, release and make up controls. It includes true stereo side-chain input and is accompanied by a "link" feature that enables multiple stereo bus compressor modules to be combined for surround processing. Note: Module requires X-Rack to function - Dual channel, modular dynamics processor based around SSL's G-Series console bus compressor
- True Stereo side-chain input for external signal keying
- Link control enables several modules to be combined for surround compression
- Gain reduction meter as fitted to the classic SSL console range
- Electronically balanced XLR connections
In the Box Solid State Logic X-Rack Stereo Bus Compressor Module One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Rack Stereo Bus Compressor Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729626X1 Specs | Function | Bus Compressor | | Number of Channels | 2 | | Inputs | 2 x XLR Inputs
2 x XLR Key Inputs | | Outputs | 2 x XLR | | Maximum Input Level | Not specified by manufacturer | | Compression Threshold | -20dB to +20dB, variable | | Compression Ratio | 1:1.5, 2, 3, 4, 5, 10, stepped | | Attack Time | 0.1, 0.3, 1, 3,10, 30 mSec, stepped | | Release Time | 0.1, 0.2, 0.4, 0.8, 1.6 Sec and Auto, stepped | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | >+26dBu | | Make-up Gain | Yes, variable | | Frequency Response | 20Hz to 20kHz, +/-0.3dB (-3dB at 90kHz) | | Dynamic Range | Not specified by manufacturer | | Noise | <-90dBu | | Dimensions (WxDxH) | 2.8 x 7.9 x 6.75" (70 x 200 x 171mm) | | Weight | 1.2 lbs (0.76 kg) | | Specialties | The compressor sidechain can be also used as ducker or, with external EQ, as a de-esser | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 11.1 x 7.4 x 4.3" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 49 owners. Add your rating and experience with the product.
