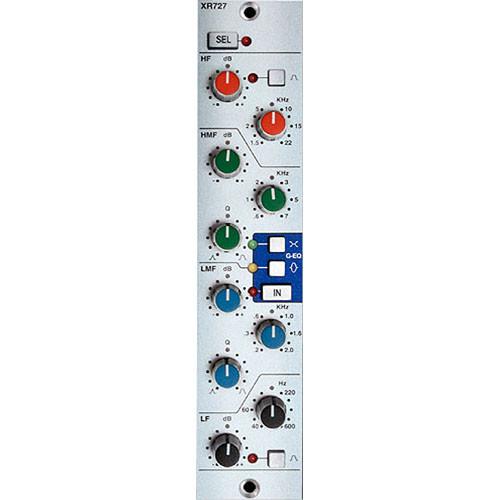

Product description The X-Rack Stereo EQ Module from Solid State Logic is a 4-band stereo version of SSL's console Channel EQ module, and requires the use of an X-Rack or Mynx enclosure. Designed for users of Digital Audio Workstations and other audio/post applications, the EQ can be combined with any number of other modules to achieve a scalable system that features the legendary SSL sonic signature. The module delivers the legendary SSL twin-curve E and G series EQ, with the low-mid and high-mid frequencies being fully-parametric with variable "Q", and the high- and low-frequency bands featuring shelf/bell control. The module input and output gains can be set to operate at a nominal level of either +4dBu or -10dBV, using a switch on the connector panel. The X-Rack Stereo EQ Module is a versatile EQ. It will work equally well for the user who requires pinpoint accuracy for surgical problem solving, or for situations where smoother broader sound shaping is called for, or for adding a little more aggressive character to the source material. The EQ delivers on all counts. Note: Module requires an X-Rack or Mynx chassis to function (TotalRecall function not available when used with Mynx) - Stereo version of the XL 9000 K Channel Equaliser as used on Duality and AWS consoles
- "Selective Mode" E and G characteristic switching, which enables independent switching of high- and low-bands and mid-bands between E or G curves
- High- and low-bands switchable between shelving and fixed Q Bell curves
- EQ IN switch for A/B comparison
- Rear panel connections on balanced TRS Jack
In the Box Solid State Logic X-Rack Stereo EQ Module One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic X-Rack Stereo EQ Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic XR727 Specs | Filter Type | Parametric and shelving | | Number of Channels | Stereo | | Inputs | 2 x 1/4" TRS phone | | Outputs | 2 x 1/4" TRS phone | | Maximum Input Level | Not specified by manufacturer | | Frequency Bands | HF Shelving: 1.5kHz to 22kHz, variable
LF Shelving: 40Hz to 600Hz, variable
HMF Parametric: 600Hz to 7kHz, variable
LMF Parametric: 200Hz to 2.0kHz, variable | | Bandwidth | HF Shelving: Q = 2.5
LF Shelving: Q = 2.5
HMF Parametric: Q = variable from 0.7 to 2.5 (may also vary with gain)
LMF Parametric: Q = variable from 0.7 to 2.5 (may also vary with gain) | | Range (Boost/Cut) | +/-20dB | | Maximum Output Level | +26dBu (+4dBu operating level)
+13.5dBV (-10dBV operating level) | | Frequency Response | 20Hz to 20kHz, +/-0.5dB (-3dB at 90kHz) | | Dynamic Range | Not specified by manufacturer | | Noise | <-70dbu (+4dbu operating level)
<-72dBV (-10dBV operating level) | | Dimensions (WxDxH) | 1.4 x 7.9 x 6.8" (35 x 200 x 171mm) | | Weight | 9.5 oz (260g) | | Specialties | The LF and HF bands have variable turnover frequency with switchable bell/shelving and selectable response curves | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.9 x 7.4 x 2.6" |
