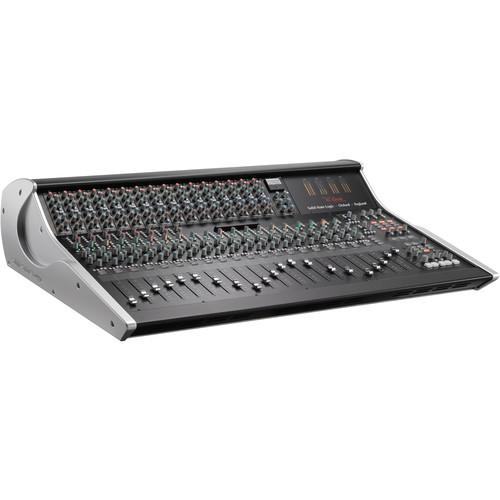

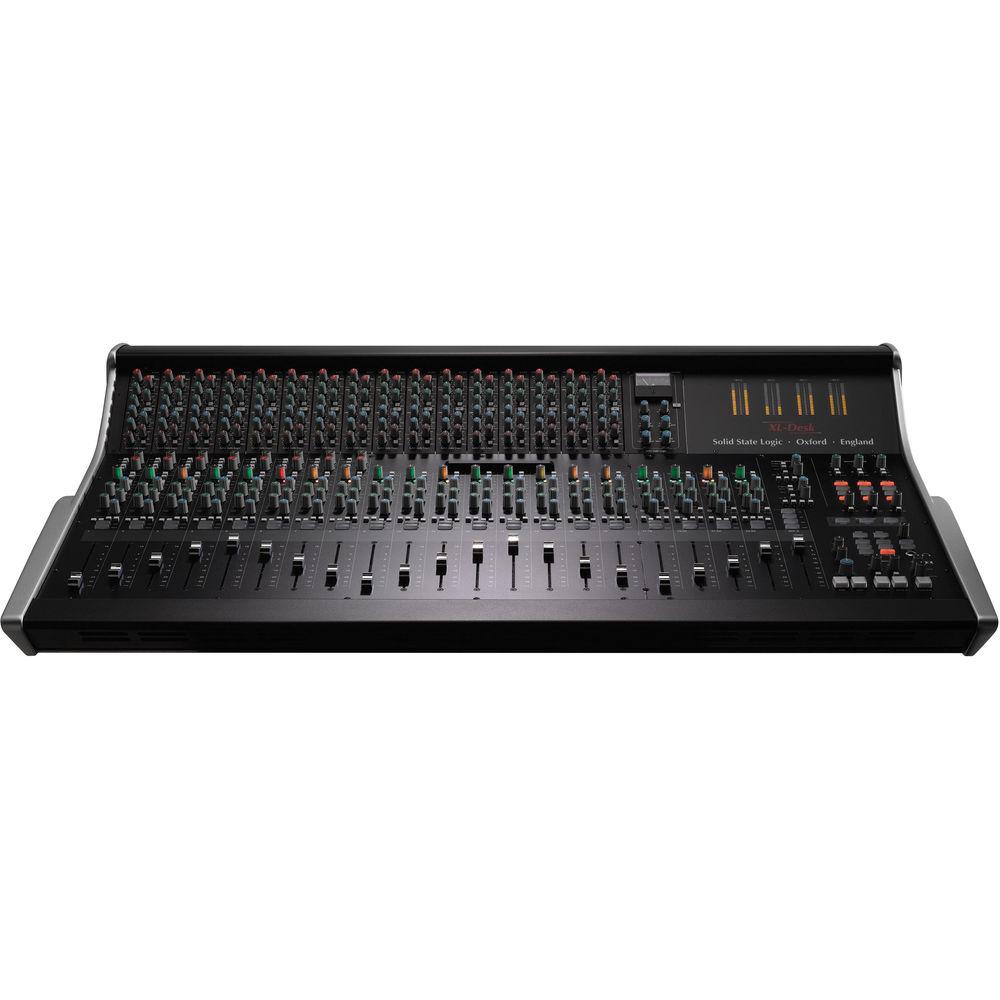

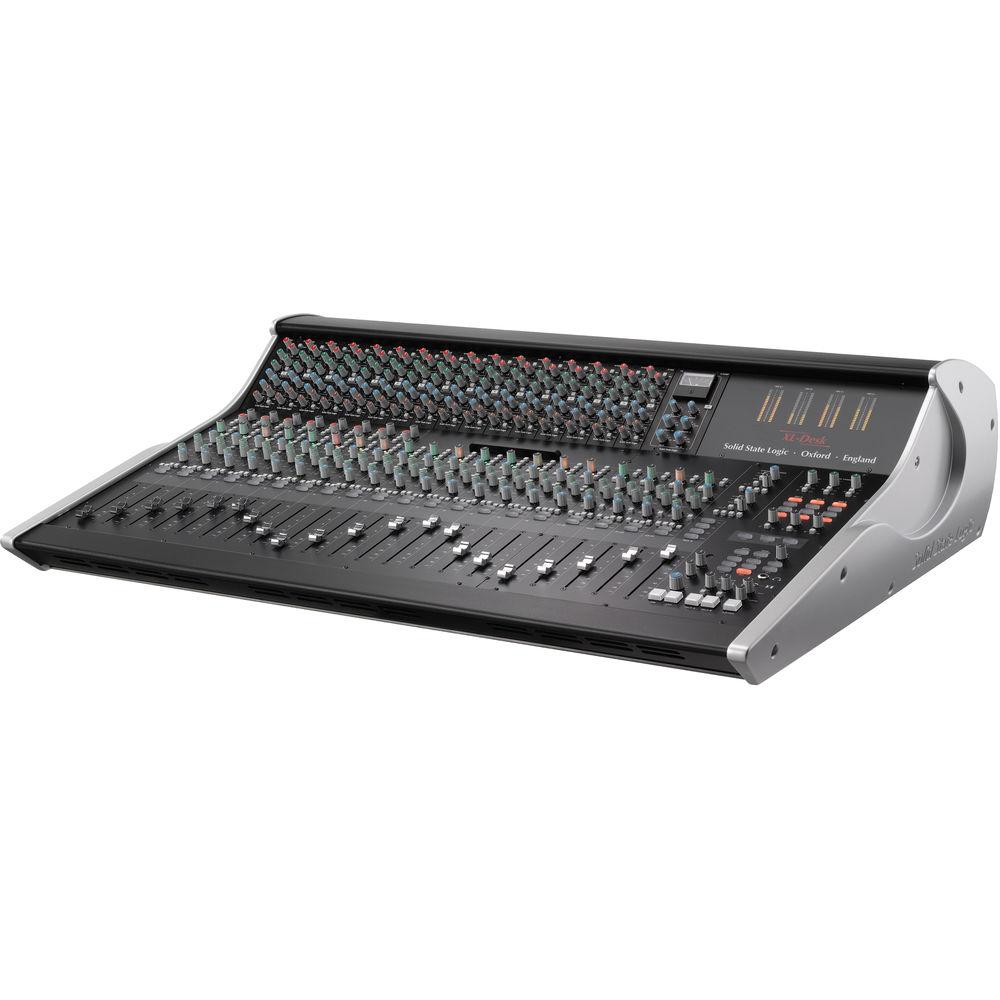

User Manual for Solid State Logic XL-Desk Mixing Console with 16 E Series EQ Modules Click to enlarge the picture
Contents of the user manual for the Solid State Logic XL-Desk Mixing Console
- Product category: Analog Recording Mixers Solid State Logic
- Brand: Solid State Logic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solid State Logic Analog Recording Mixers
 |
User manual for the Solid State Logic XL-Desk Mixing Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solid State Logic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solid State Logic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solid State Logic product will considerably shorten its lifespan!
|

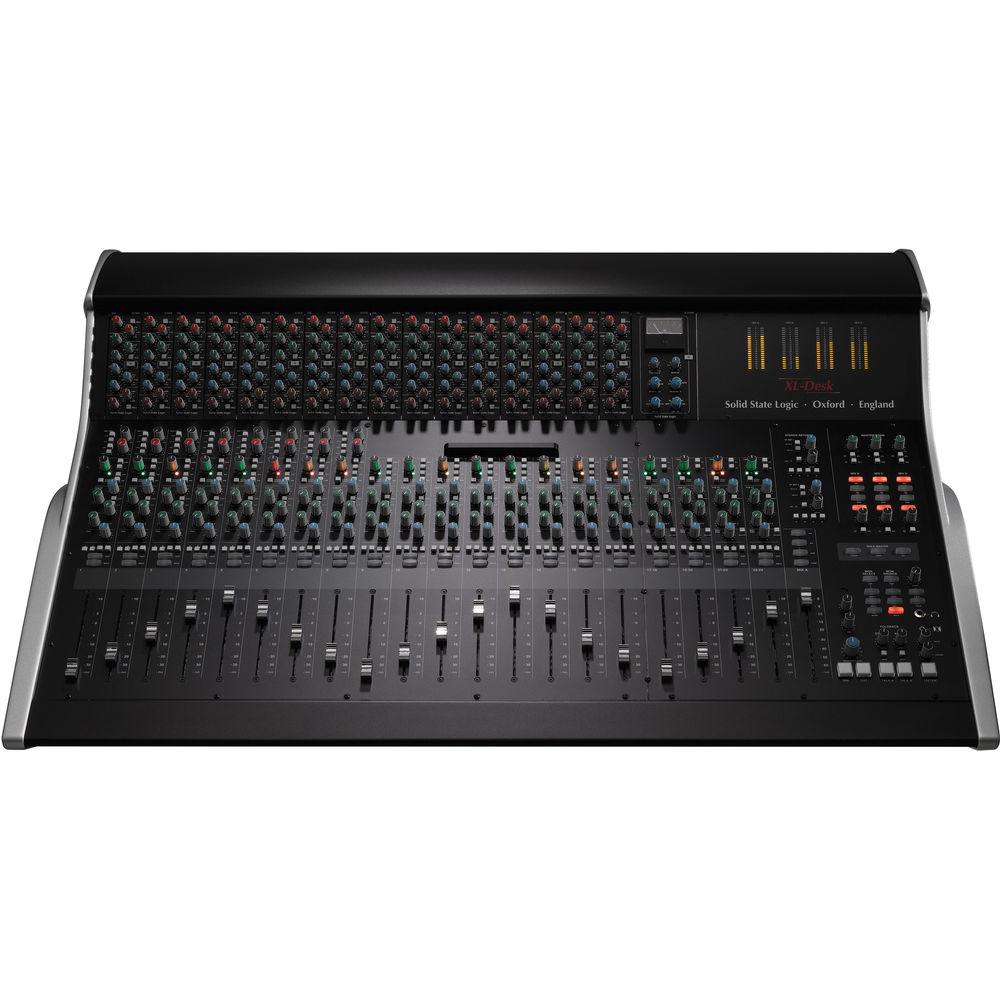

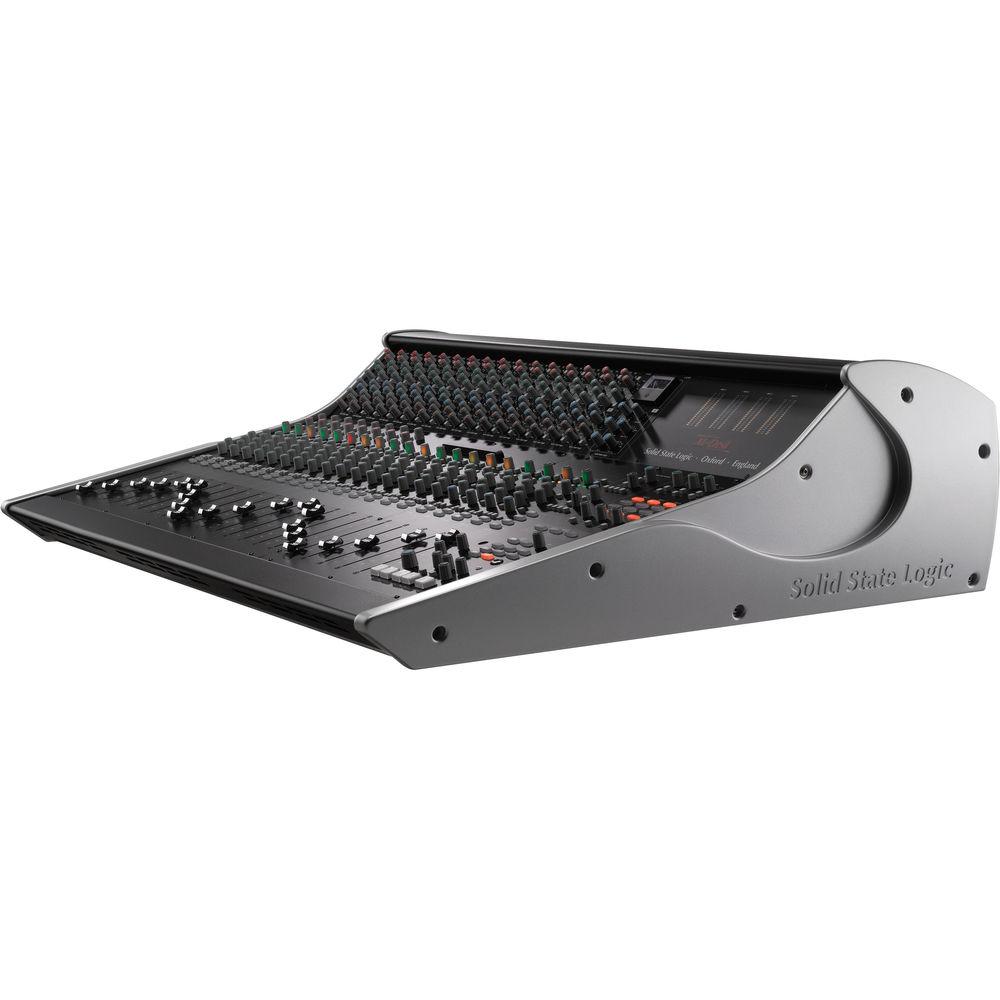

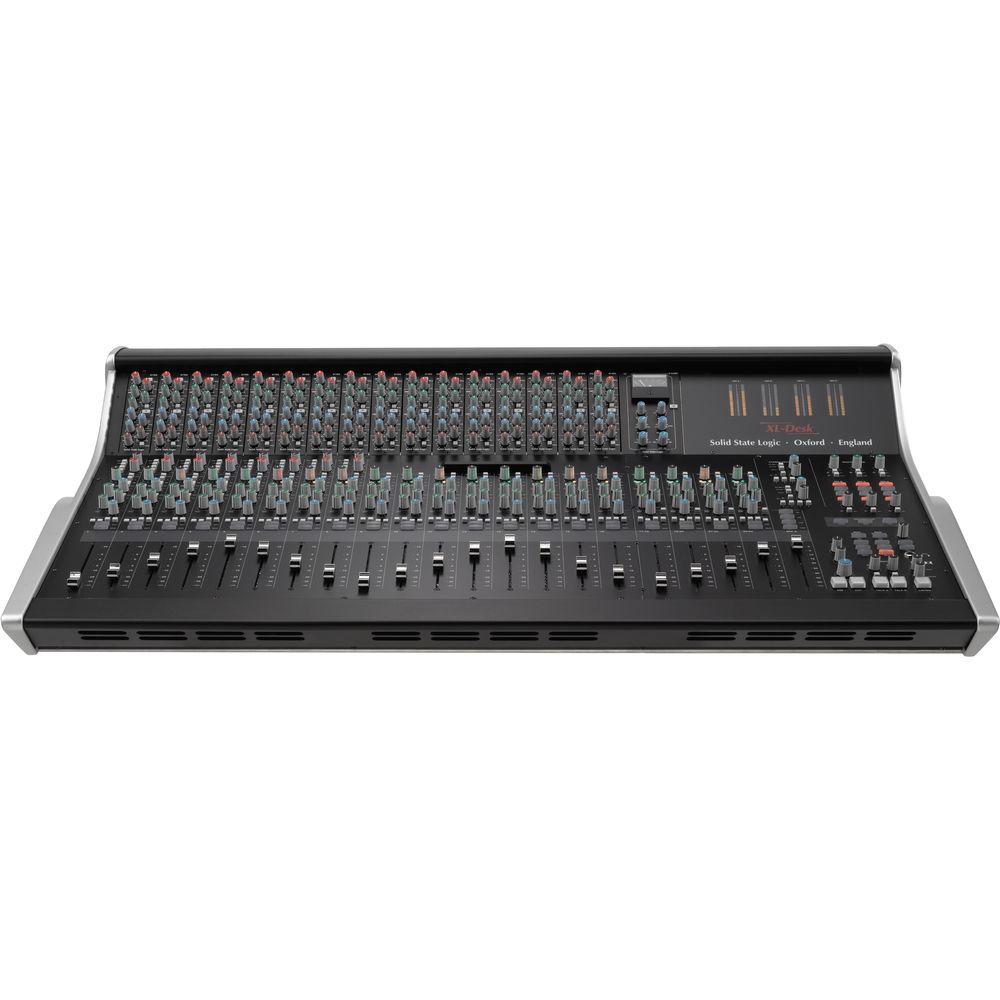

Product description The Solid State Logic XL-Desk with 16 E Series EQ Modules is a modern twist on the classic analog studio console. It's designed for tracking or mixing engineers who require an analog console within a DAW-centric studio, but don't want or need the integrated DAW control and analog level automation other SSL console products have.

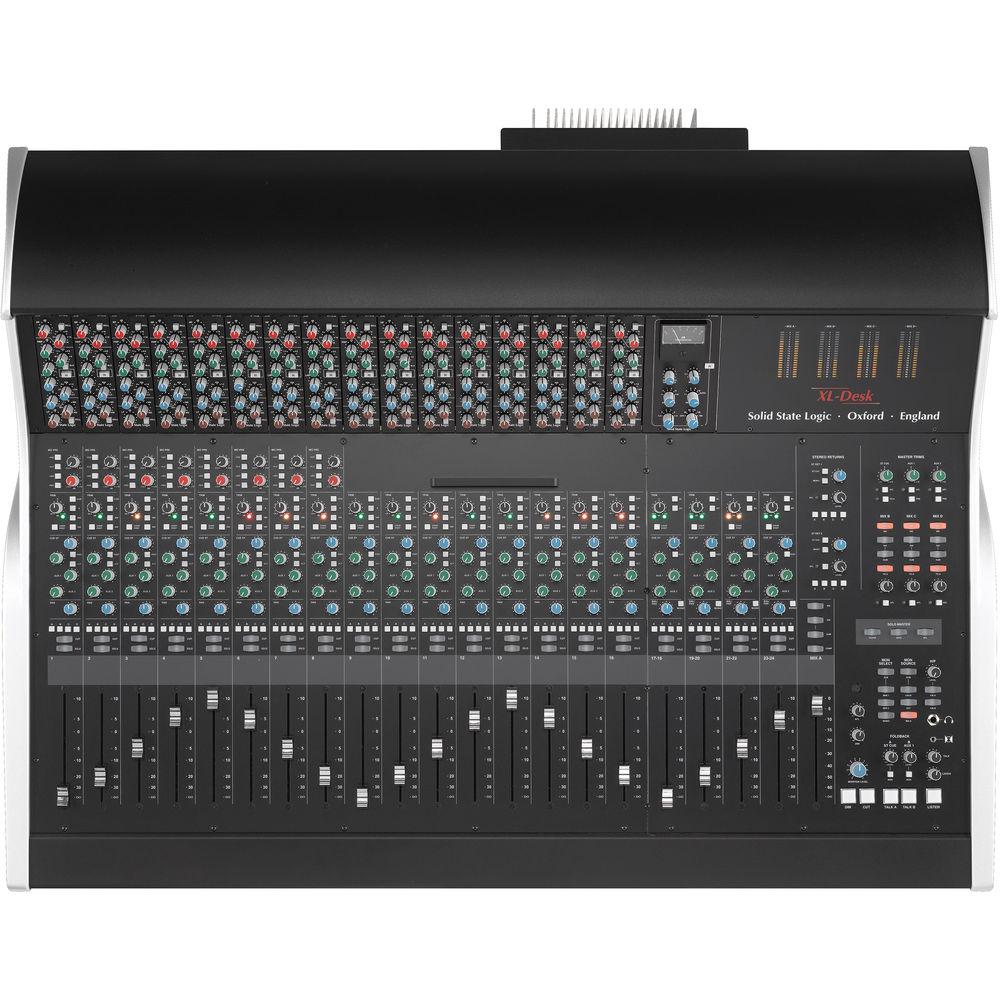

XL-Desk is in many ways a traditional 24 into 8 analog console, but it packs in a wide selection of features. It has 20 channel strips: 16 dual input mono (switchable between main input or DAW return) and 4 stereo channels. The first eight channels have VHD mic pre's. There is an 18-slot 500-series rack built in that can be used for processing or mic pre's. This version of the console comes loaded with 16 E Series EQ modules. XL-Desk ships with a legendary SSL Stereo Bus Compressor module in slots 17 & 18 (hard-wired to Mix A). The rack has its own dedicated power supply.
There are four main Mix Busses (A, B, C, D) with Busses B, C and D able to be summed into Mix A. The Busses and channels can access the 500 racks, and each has a separate insert point for processing. There are two mono aux sends and two stereo return inputs. Direct outputs on every channel, stereo return and mix bus enable convenient stem printing. Each channel has a Cue Stereo Bus section (with Pan and Level) used to provide one of the headphone mixes while tracking. At mixdown, the mono channel DAW return signals can be routed to the CUE ST bus and then summed into Mix A. As a result, there are 16 main faders, 16 Cue ST inputs, and 4 Stereo channels, providing 40 summing inputs (using the stereo returns and insert sum functions you can squeeze in over 50 summing inputs).
There is also a fully-featured monitoring section with bass management (3 sets of speakers + subwoofer), foldback A and B with individual talk-backs for headphone mixes, and a built-in Listen Mic input + classic compressor circuit, with its own direct output. - Key Features
-
- 20 + 1 fader, over 40 input SuperAnalogue SSL console
- 8 built-in Variable Harmonic Drive (VHD) preamps
- 16 dual-input mono channels (switchable between main input or DAW return)
- 4 stereo channels (switchable to mono for tracking)
- The legendary Stereo Bus Compressor, with new high-pass filter sidechain
- 18-slot 500 format rack built-in, accessible from channels or mix busses
- In addition to a 500 rack insert, each mono channel has a standard insert point
- 4 stereo Mix Busses with their own insert points and access to the 500 rack
- One stereo and 2 mono aux sends. Two dedicated stereo return inputs
- Direct outputs on every channel, stereo return, and mix bus for stem printing
- Fully-featured monitoring section with bass management
- Foldback A and B with individual talkbacks for headphone mixes
- Built-in Listen Mic input + classic compressor circuit, with its own direct output
- AFL and Solo-In-Place solo modes, with Solo Clear and Solo Safe (Protect) modes

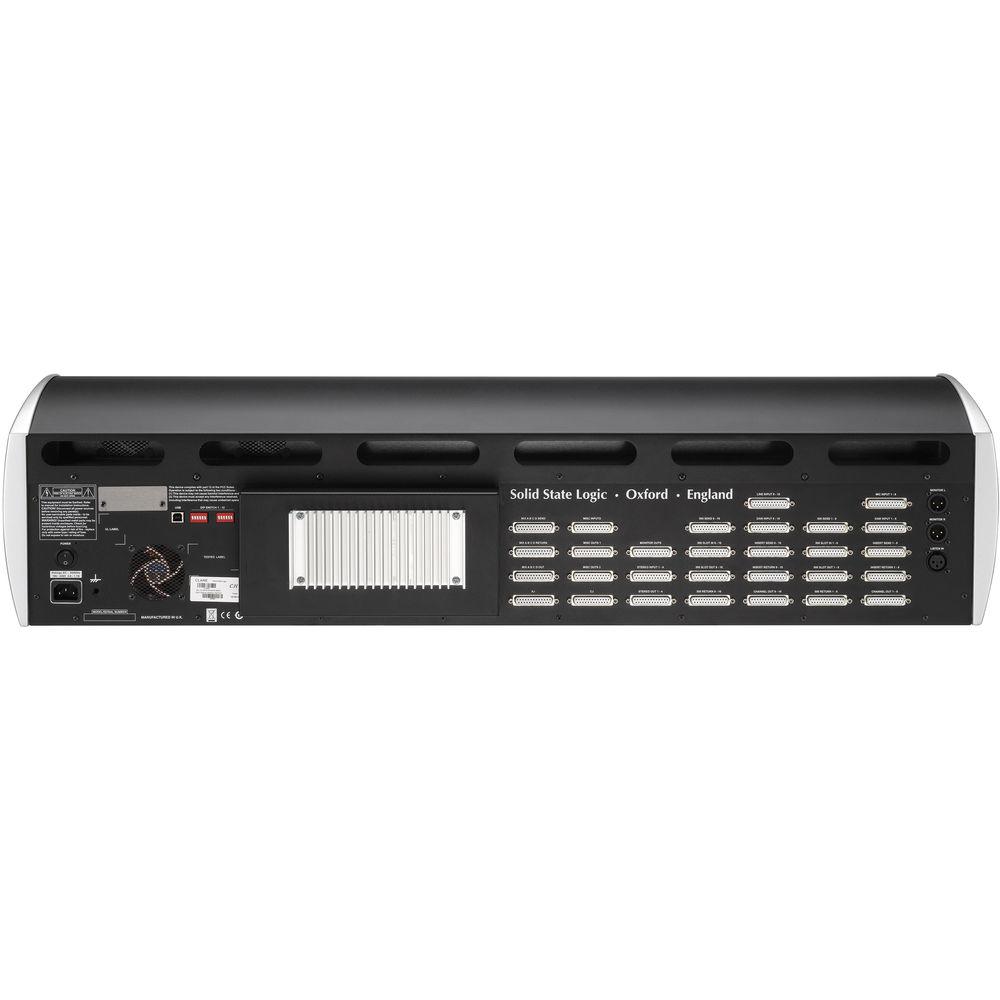

- Balanced D-Sub rear panel inputs/outputs & Front panel headphones & iJack sockets
- High quality internal PSU
In the Box Solid State Logic XL-Desk Mixing Console with 16 E Series EQ Modules Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic XL-Desk Mixing Console with 16 E Series EQ Modules in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729732X2 Specs | Connections | Power Supply: IEC320 3-pin connector, 100 - 240 VAC, 50 - 60 Hz
Analog I/O: 25-pin D-type socket, balanced, Zin > 10 kOhms, Zo ≈ 100 ohms, 3-pin XLR-M, balanced, Zo ≈ 100 ohms
Headphones: Stereo 1/4" jack socket, Zo ≈ 75 ohms
iJack: Stereo 3.5 mm jack socket, Zi ≈ 10 k
USB: 1 x type-B chassis socket (SSL diagnostic use only) | | Performance | Maximum I/O Level: +18 dBu or 24 dBu
Frequency Response:
Line/Alt in to Channel Out (post): 20 Hz - 40 kHz (±0.2 dB)
Line/Alt in to Mix bus (single fader): 20 Hz - 40 kHz (±0.5 dB)
THD + N: < 0.05% (20 Hz - 20 kHz)
Noise
Line/Alt in to Channel Out (post): < -86 dBu (20 Hz - 20 kHz)
Line/Alt in to Mix bus (single fader): < -83dBu (20 Hz - 20 kHz)
THD + N: > +24 dBu (into 10 kOhms) | | Electro Magnetic Compatibility | EN55103-1:2009, EN55103-2:2009
Environment: E4
Initial in-rush current: 3.2 A
5 sec in-rush current: 3.2 A
Braid-screened cables should be used where applicable
Star Quad cables should be used where applicable
EMC Performance Criteria
Line level inputs and outputs
Measure at mid-gain, noise <-56 dBu | | Environmental | Temperature Operating: +41 to 86 deg F (+5 to 30 deg C)
Non-operating:-3 to 122 F (-20 to 50 deg C)
Max. gradient: 59 F (15 deg C/hour)
Relative Operating: 20 to 80%
Humidity Non-operating: 5 to 90%
Max. wet bulb: 84.2 deg F (29 deg C), (non-condensing)
Vibration Operating: < 0.2 G (3 - 100 Hz)
Non-operating: < 0.4 G (3 - 100 Hz)
Shock Operating: < 2 G (10 ms max.)
Non-operating: < 10 G (10 ms max.)
Altitude Operating: 0 to 3000 m
Non-operating (above sea level): 0 to 12000 m | | Power | < 300 watts | | Dimensions | (WxHxD) 40 x 9.9 x 32" (1015 x 251 x 812 mm) | | Weight | 89.5 lb (40.6 kg) |
