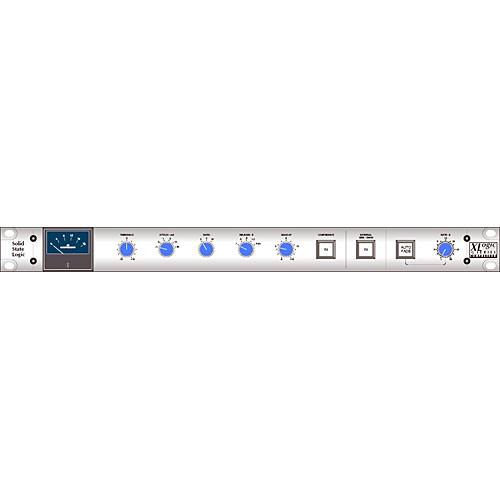

User Manual for Solid State Logic XLogic G Series Compressor - Stereo Compressor Click to enlarge the picture
Contents of the user manual for the Solid State Logic XLogic G Series
- Product category: Dynamics Processors Solid State Logic
- Brand: Solid State Logic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Solid State Logic Dynamics Processors
|
User manual for the Solid State Logic XLogic G Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Solid State Logic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Solid State Logic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Solid State Logic product will considerably shorten its lifespan!
|
Product description The XLogic G Series Compressor from Solid State Logic is a stereo compressor housed in a single space rack-mount chassis. It utilizes the design elements of the classic SSL G Series "centre" compressor, and incorportes them within SSL's SuperAnalogue design topology, providing both high audio performance, along with the acclaimed signature G Series compressor characteristic. The compressor side-chain controls include multi-position, switched attack, ratio and release controls, while the threshold and make-up controls are continuously variable. The knee point of the compressor is set with the threshold control, and purposely changes depending on the setting of the ratio control. Decreasing the ratio setting lowers the effective threshold, therefore maintaining the perceived "loudness" of the compressed signal. The compressor side-chain can be driven either by the main stereo channel signal, whereby the loudest signal wins and provides the side chain signal, or by an external mono signal applied to the key input. This opens up the possibility to use the unit as a "ducker'" (for audio-follow applications) or, with external EQ, as a "de-esser". - Single-space, rack-mount stereo buss compressor utilizing SSL G series center compressor design elements
- Gain reduction meter as fitted to the classic SSL console range
- External side chain source select
- Auto fade with rate control provides automatic linear fade in/out control
- Remote connector for remote operation of the auto fade function
In the Box Solid State Logic XLogic G Series Compressor - Stereo Compressor AC Power Cable One (1) Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Solid State Logic XLogic G Series Compressor - Stereo Compressor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSolid State Logic 729946X2 Specs | Function | Compressor | | Number of Channels | 2 | | Inputs | 2 x XLR
1 x XLR Sidechain | | Outputs | 2 x XLR | | Maximum Input Level | Not specified by manufacturer | | Compression Threshold | +/-15 | | Compression Ratio | 2:1, 4:1 and 10:1 | | Attack Time | 0.1 to 30 mS (6 steps) | | Release Time | 0.1, 0.3, 0.6, 1.2 seconds and Auto | | Gate Threshold | Not applicable | | Gate Rate | Not applicable | | Maximum Output Level | +28dBu | | Make-up Gain | -5dB to +15dB | | Frequency Response | 20Hz to 20kHz, +/-0.2dB (-3dB @ 100kHz) | | Dynamic Range | >118dB | | Noise | THD+N: <0.008%, typically 0.005% - 20Hz to 20kHz (80kHz filter) | | Dimensions (WxDxH) | 19 x 13.8 x 1.75" (483 x 351 x 45mm) | | Weight | 7.5 lbs (3.3 kg) | | Specialties | Selectable voltage internal power supply | | | | Package Weight | 12.2 lb | | Box Dimensions (LxWxH) | 23.0 x 20.0 x 7.9" |
