SOLOSHOT SOLOSHOT3 with Optic65 Camera

Search your instruction manual in PDF to download

User Manual for SOLOSHOT SOLOSHOT3 with Optic65 Camera

Click to enlarge the picture
SOLOSHOT SOLOSHOT3 with Optic65 Camera Contents of the user manual for the SOLOSHOT SOLOSHOT3 with Optic65 Camera
  • Product category: Uncategorized SOLOSHOT
  • Brand: SOLOSHOT
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for SOLOSHOT Uncategorized

SOLOSHOT SOLOSHOT3 with Optic65 Camera SOLOSHOT SOLOSHOT3 with Optic65 Camera SOLOSHOT SOLOSHOT3 with Optic65 Camera SOLOSHOT SOLOSHOT3 with Optic65 Camera SOLOSHOT SOLOSHOT3 with Optic65 Camera
User manual for the SOLOSHOT SOLOSHOT3 with Optic65 Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SOLOSHOT product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SOLOSHOT user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SOLOSHOT product will considerably shorten its lifespan!



Product description

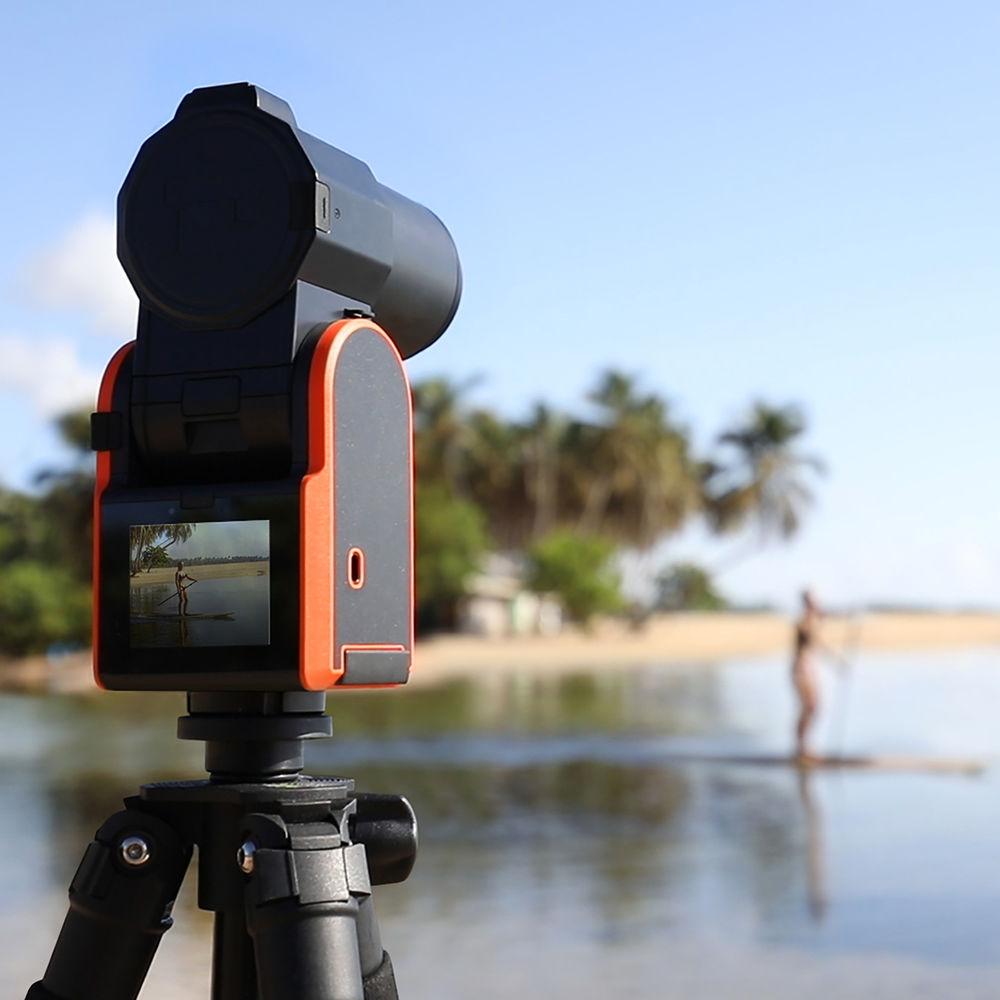

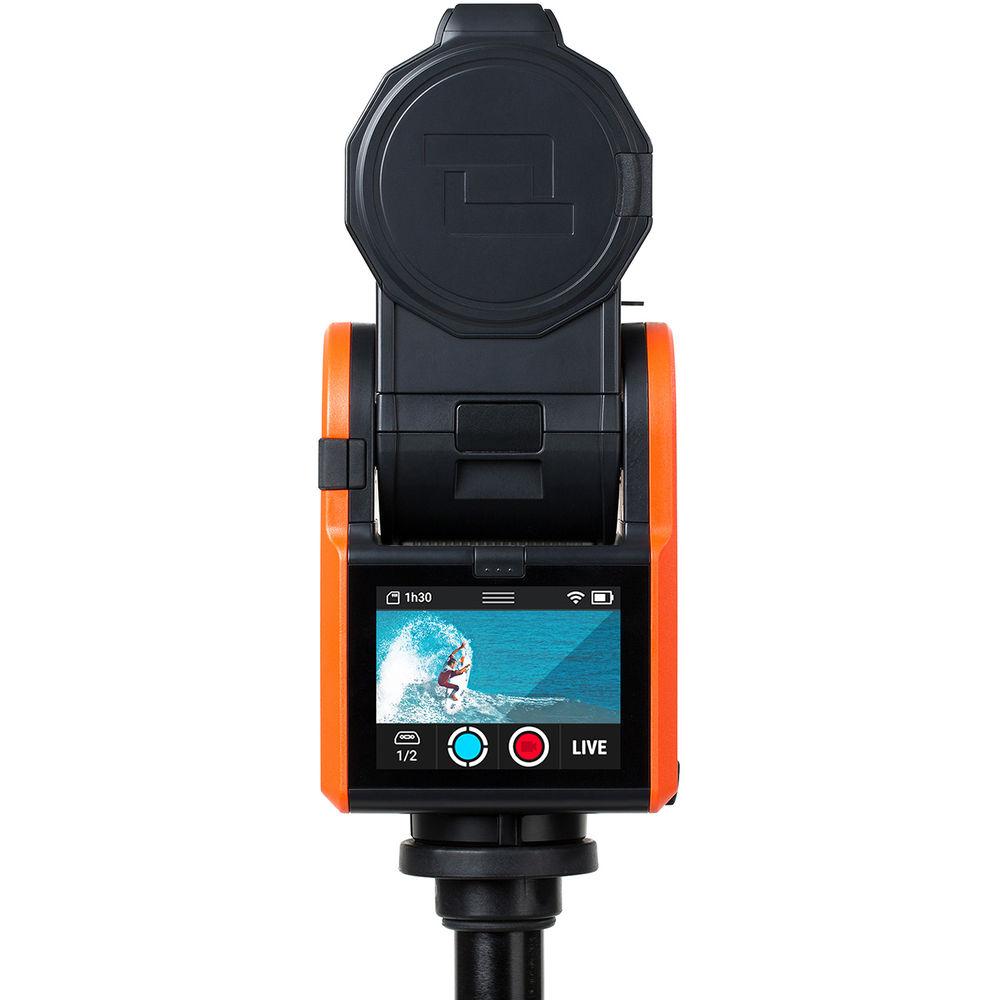

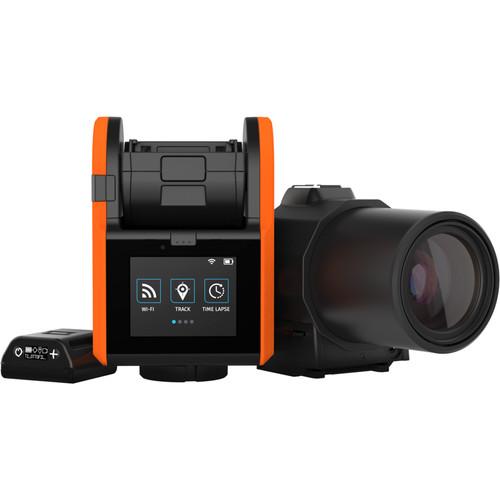

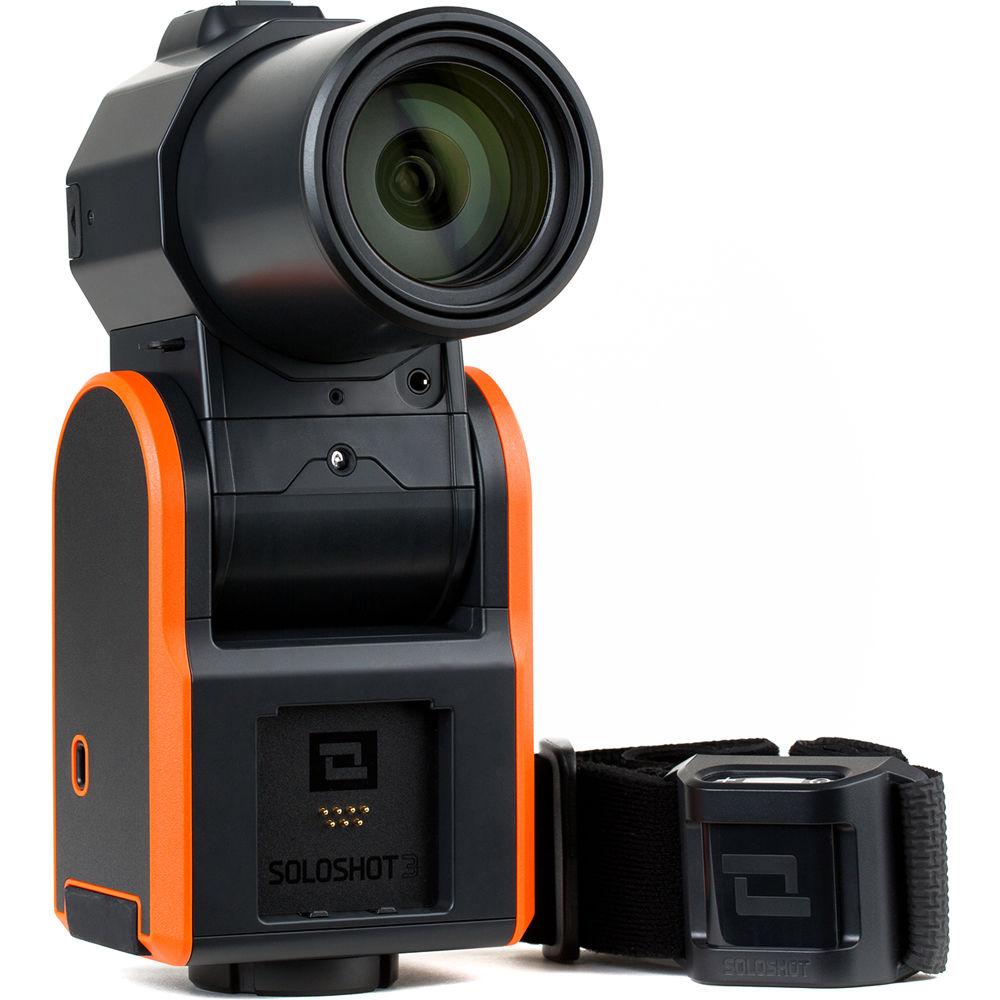

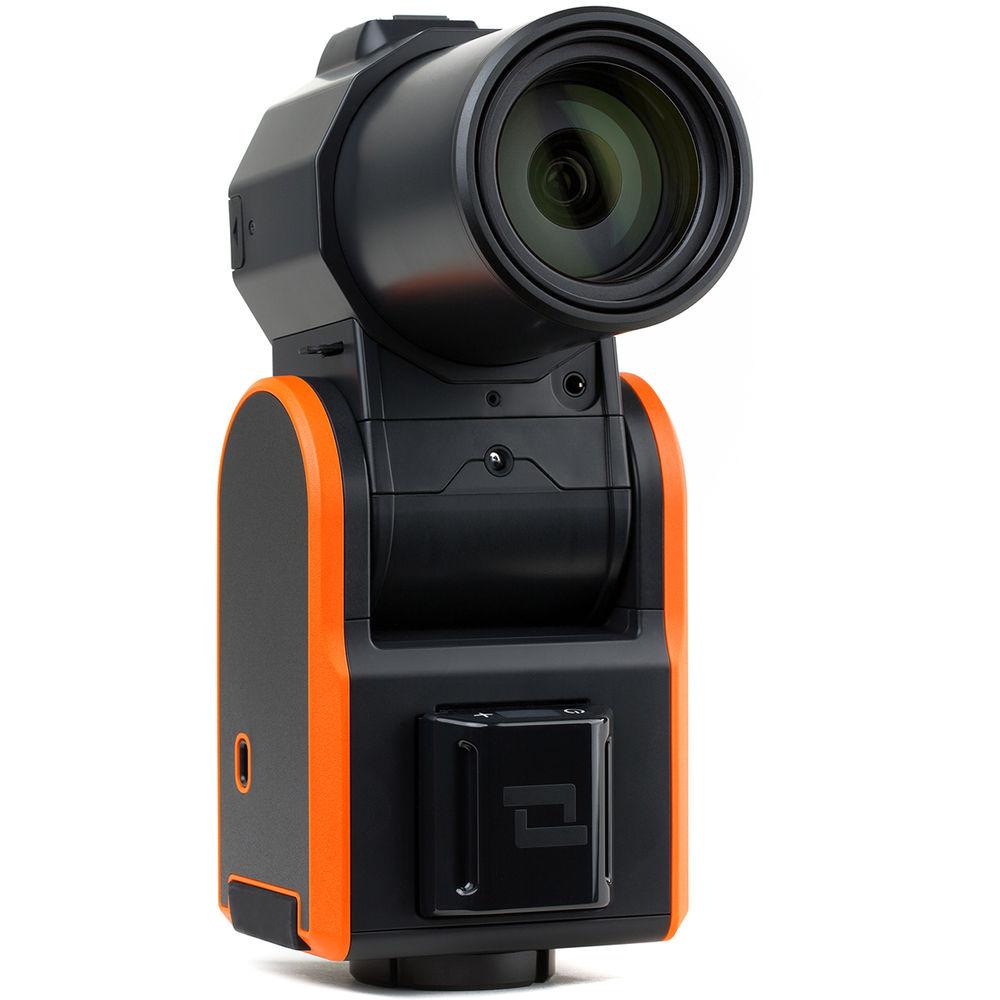

The SOLOSHOT3 with Optic65 Camera from SOLOSHOT is a robotic camera and tracking system that allows you to capture yourself at resolutions up to 4K UHD as you move through the scene, with no cameraman required. Simply wear the waterproof and shockproof Tag transmitter using an included armband and clip, and the SOLOSHOT3 Base automatically pans, tilts, and sends zoom and focus commands to the included Optic65 camera to keep you in the shot and in focus at distances up to 2,000' away.

The SOLOSHOT3 Base has a load capacity of 1.5 lb and accepts either an optional Camera Adapter plate to support lightweight cameras, or the custom-designed Optic25 and Optic65 cameras that clip directly to the top of the Base. This bundle includes the Optic65 camera, which features a 12.4 megapixel 1/2.3" backside-illuminated CMOS sensor that supports 4K UHD video at 30 fps, 1080p up to 60 fps, and 720p up to 240 fps for slow-motion playback. It is equipped with a 65x telescopic optical zoom lens that provides a 35mm-equivalent focal range of 24 to 1560mm, making it perfectly suited to tracking a SOLOSHOT3 Tag-wearing subject, even over long distances. In addition to video, the camera can also take 12MP still photos in bursts up to 30 fps, as well as set intervals for creating time lapse videos.

Designed for quick-and-easy setup, the entire SOLOSHOT3 system can be fired up in under a minute. Just attach the Base to your tripod head via the 3/8"-16 threaded hole and clip in the Optic65 camera. Unlike previous generations of SOLOSHOT systems, no calibration is required, and it can even be moved at anytime and it will continue to automatically track the subject. The system can be controlled using a built-in touchscreen display or remotely over Wi-Fi on your smartphone or tablet.

The SOLOSHOT3 Base is powered using a built-in 6,600mAh lithium-ion battery that provides around 3.5 hours of continuous use. For added convenience, the Optic65 camera draws power from the same battery. The Tag uses a built-in 550mAh battery that lasts around 3.5 hours and can be re-charged by attaching to an accessory port found on the front of the Base.

Note: The SOLOSHOT3 is for outdoor use only. For Indoor Use, the separately-available Indoor Accessory is required.
    SOLOSHOT3 Base
    • Supports loads up to 1.5 lb
    • Designed for Optic25 and Optic65 cameras
    • Built-in touchscreen display
    • Wi-Fi for remote control
    • No calibration required; can be moved while tracking
    • Battery lasts 3.5 hours
    • Multi Mode for tracking multiple tags
    • Built-in SOLOSHOTedit software intelligently and pulls highlights from your clips and pushes them to the SOLOSHOTcloud for later viewing and sharing
    • Live stream camera feed to the online SOLOSHOT community via the SOLOSHOTapp
    • Optional Indoor Accessory for indoor use (attaches to top of Optic65 camera)
    • K-Lock compatible
    SOLOSHOT3 Tag
    • Trackable from up to 2,000' away
    • OLED display shows Base settings
    • Weighs only 1.4 oz
    • Shockproof up to 100 G
    • Waterproof to depths of 100'
    • Armband and clip included
    Optic65 Camera
    • Clips to accessory shoe on SOLOSHOT3 and SOLOSHOT3pro Base units
    • Supports automatic zoom and focus tracking
    • Records 4K video at 30 fps, 1080p up to 60 fps, and 720p up to 240 fps
    • 65x optical zoom lens
    • Optical image stabilization
    • 12MP still photos
    • Photo burst modes: 3 fps (up to 10 seconds), 5 fps (up to 6 seconds), 10 fps (up to 3 seconds), 30 fps (up to 1 second)
    • Time-lapse intervals from 1 to 3600 seconds
    • Built-in mono mic
    • 3.5mm input for external mic
    • microSD card slot
In the Box SOLOSHOT SOLOSHOT3 with Optic65 Camera
  • SOLOSHOT3 Base
  • Optic65 Camera for SOLOSHOT3
  • SOLOSHOT3 Tag yqebtasxdxvucc
  • Armband and Clip
  • USB Charging Cable
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the SOLOSHOT SOLOSHOT3 with Optic65 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Video Format 3840 x 2160p at 30 fps (MP4)
    2704 x 1520p at 30/60 fps (MP4)
    1920 x 1080p at 30/60 fps (MP4)
    1280 x 720p at 30/60/120/240 fps (MP4)
    Package Weight 4.6 lb
