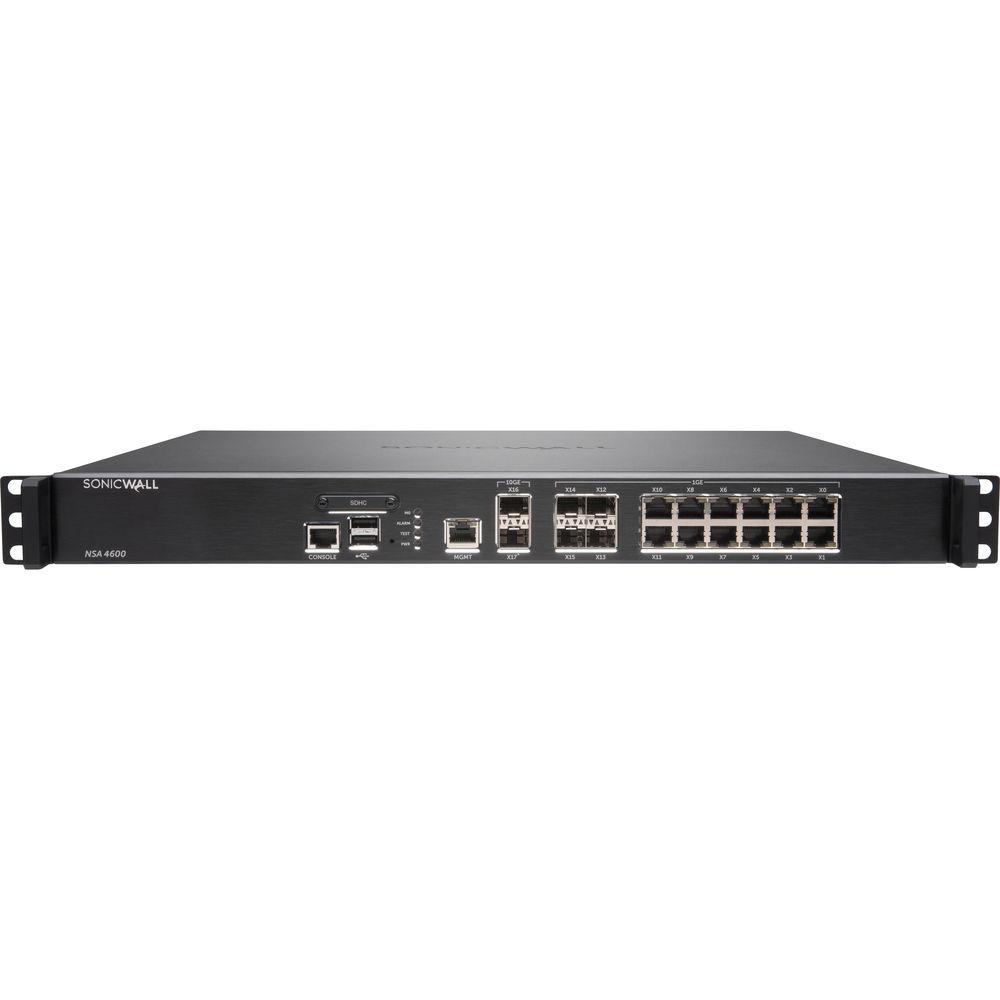

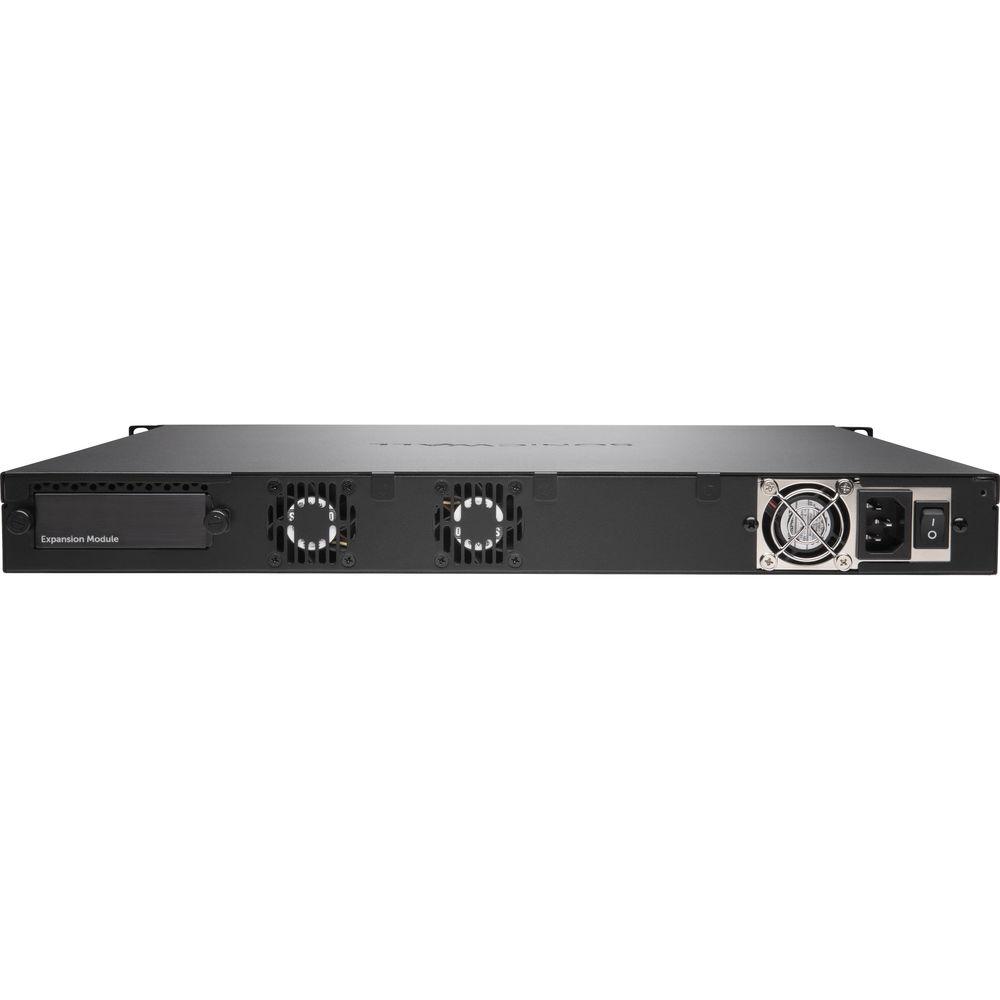

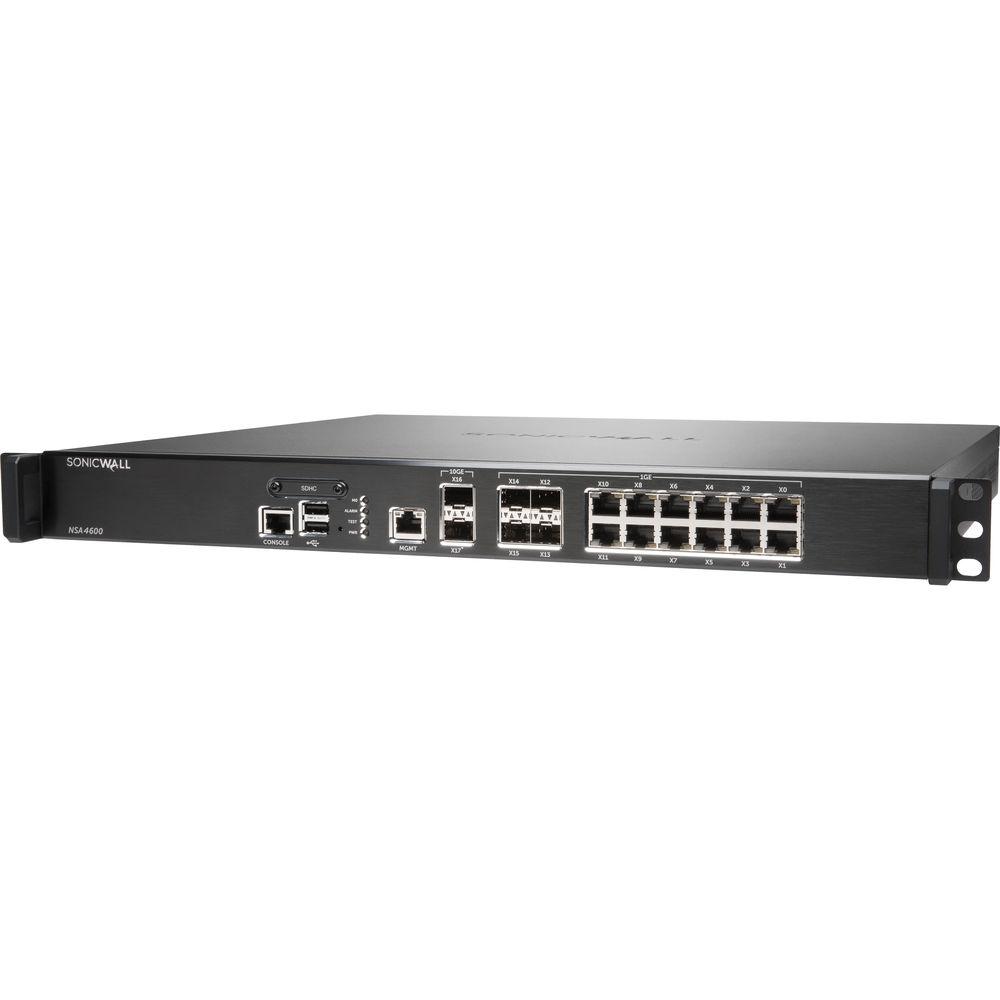

SonicWALL Network Security Appliance 4600 Firewall

Search your instruction manual in PDF to download

User Manual for SonicWALL Network Security Appliance 4600 Firewall Only

Click to enlarge the picture
SonicWALL Network Security Appliance 4600 Firewall Only Contents of the user manual for the SonicWALL Network Security Appliance 4600 Firewall
  • Product category: Firewalls & Security Devices SonicWALL
  • Brand: SonicWALL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for SonicWALL Firewalls & Security Devices

SonicWALL Network Security Appliance 4600 Firewall Only SonicWALL Network Security Appliance 4600 Firewall Only SonicWALL Network Security Appliance 4600 Firewall Only
User manual for the SonicWALL Network Security Appliance 4600 Firewall contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SonicWALL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SonicWALL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SonicWALL product will considerably shorten its lifespan!



Product description

Provided by third party: The SonicWall Network Security Appliance (NSA) series combines the patented SonicWall Reassembly Free Deep Packet Inspection (RFDPI) engine with a powerful and massively scalable multi-core architecture to deliver intrusion prevention, gateway anti-virus, gateway anti-spyware, and application intelligence and control for businesses of all sizes. By integrating automated and dynamic security capabilities into a single platform, the NSA series provides comprehensive next-generation firewall protection without compromising performance.
Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.
    Key Features
    • Next-generation firewall security
    • Multi-core architecture
    • Deep packet inspection technology
    • Lowered complexity and cost
    Next-generation firewall security
  • A suite of tools, including intrusion prevention, gateway anti-virus, and anti-spyware plus application intelligence and control, offer granular control through application blocking, bandwidth management and more. Additional security and connectivity capabilities such as IPSec VPN, SSL VPN, content filtering, anti-spam and enforced client anti-virus make the NSA series a comprehensive and powerful all-in-one security solution.
    Multi-core architecture
  • Single-core and ASIC processors may have been sufficient for the design of traditional stateful firewalls. But NSA series appliances go above and beyond, with a multi-core design to help ensure that the deep packet inspection provided by the SonicWall Next-Generation Firewall can scale with your expanding organization. As many as eight cores spread the network load evenly and protect against extreme performance degradation often present in other technologies when exposed to heavy traffic conditions and malicious content.
    Deep packet inspection technology
  • Proprietary SonicWall RFDPI technology offers extremely high scalability and performance suitable for even the most demanding environments. RFDPI scans traffic on every port, on every protocol and in any direction to provide ultimate visibility and control. The unique design of the RFDPI engine allows it to inspect every byte of a connection - and up to hundreds of thousands of simultaneous connections - in order to categorize application traffic and protect against internal and external threats at both the application and network layer.
    Lowered complexity and cost
  • Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.
Table of Contents




Upload User Manual

Have you got an user manual for the SonicWALL Network Security Appliance 4600 Firewall Only in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

SonicWALL Appliance 4600 Specs

Device Type Security appliance
Height (Rack Units) 1U
Width 17 in
Depth 19.1 in
Height 1.8 in
Weight 13.56 lbs
RAM 2 GB
Form Factor External
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport Protocol TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, DHCP
Routing Protocol OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR)
Remote Management Protocol SNMP 2, SNMP 3, CLI
Performance Firewall throughput: 6 Gbps
Full Deep Packet Inspection (DPI) throughput: 800 Mbps
Application throughput: 2 Gbps
IPS throughput: 2 Gbps
Anti-malware throughput: 1.1 Gbps
Firewall throughput (IMIX): 1.6 Gbps
SSL throughput: 500 Mbps
VPN throughput: 3 Gbps
Capacity New sessions per second: 40000
Connection / user qty: 500000
DPI connections: 250000
Maximum number of access points: 64
VPN tunnels (site-to-site): 1500
IPSec VPN connections: 500
SSL VPN users: 2
Virtual interfaces (VLANs): 512
Features NAT support, VPN support, load balancing, DoS attack prevention, antivirus analysis, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-spam protection, anti-malware protection, Quality of Service (QoS), DHCP server, bandwidth control, Link Aggregation Control Protocol (LACP), NetFlow, IPFIX
Encryption Algorithm DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES
Authentication Method RADIUS, internal user database, Active Directory, XAUTH authentication
Compliant Standards IEEE 802.1p
VoIP Protocols SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5
IP Telephony Features VoIP gatekeeper support, VoIP outbound bandwidth management
Interfaces 2 x 10GBase-X - SFP+
4 x 1000Base-X - SFP (mini-GBIC)
12 x 1000Base-T - RJ-45
2 x USB - Type A
1 x 1000Base-T (management) - RJ-45
1 x management - RJ-45
Compliant Standards FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI, ICSA Firewall certified, cUL, NOM, ICSA Antivirus, CB, RoHS, FIPS 140-2, KCC, WEEE, ANATEL, VPNC certified
Power Device Internal power supply
Installed Qty 1
Max Supported Qty 1
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 86.7 Watt
Power Provided 250 Watt
OS Provided SonicOS
Min Operating Temperature 32
