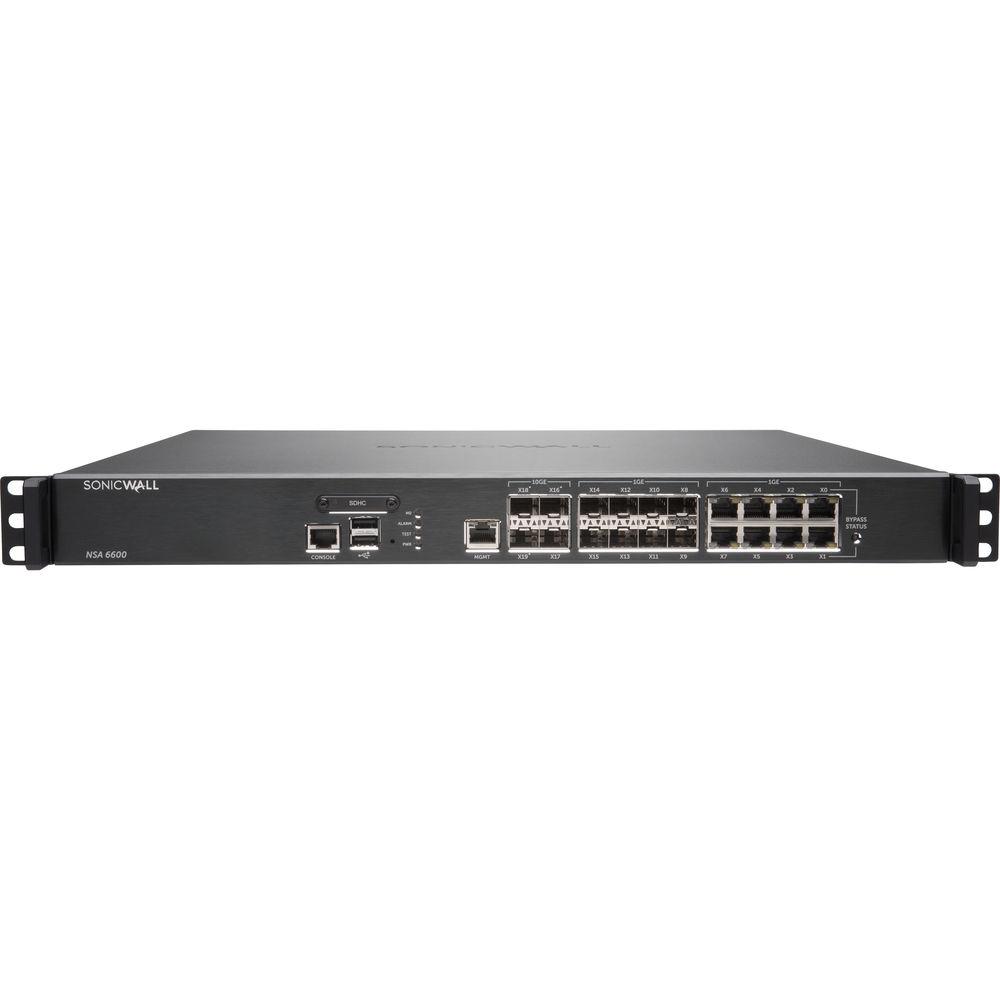

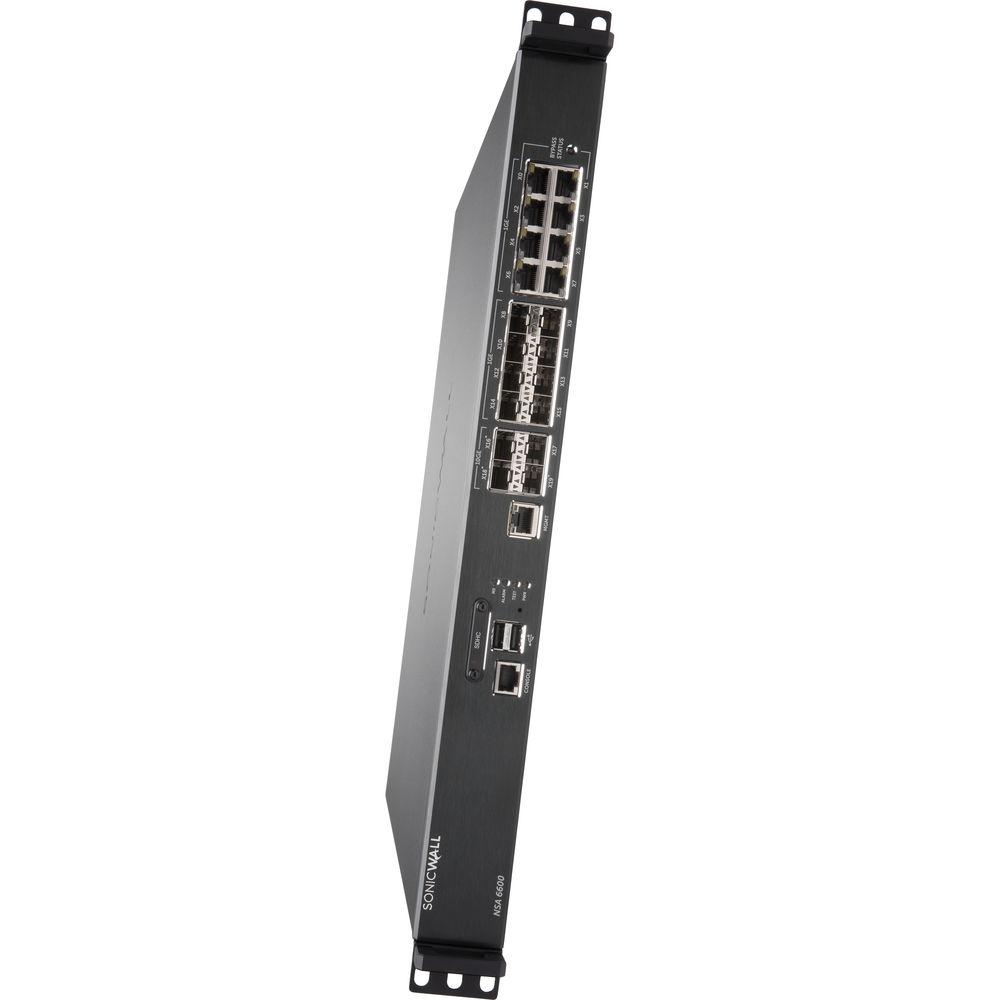

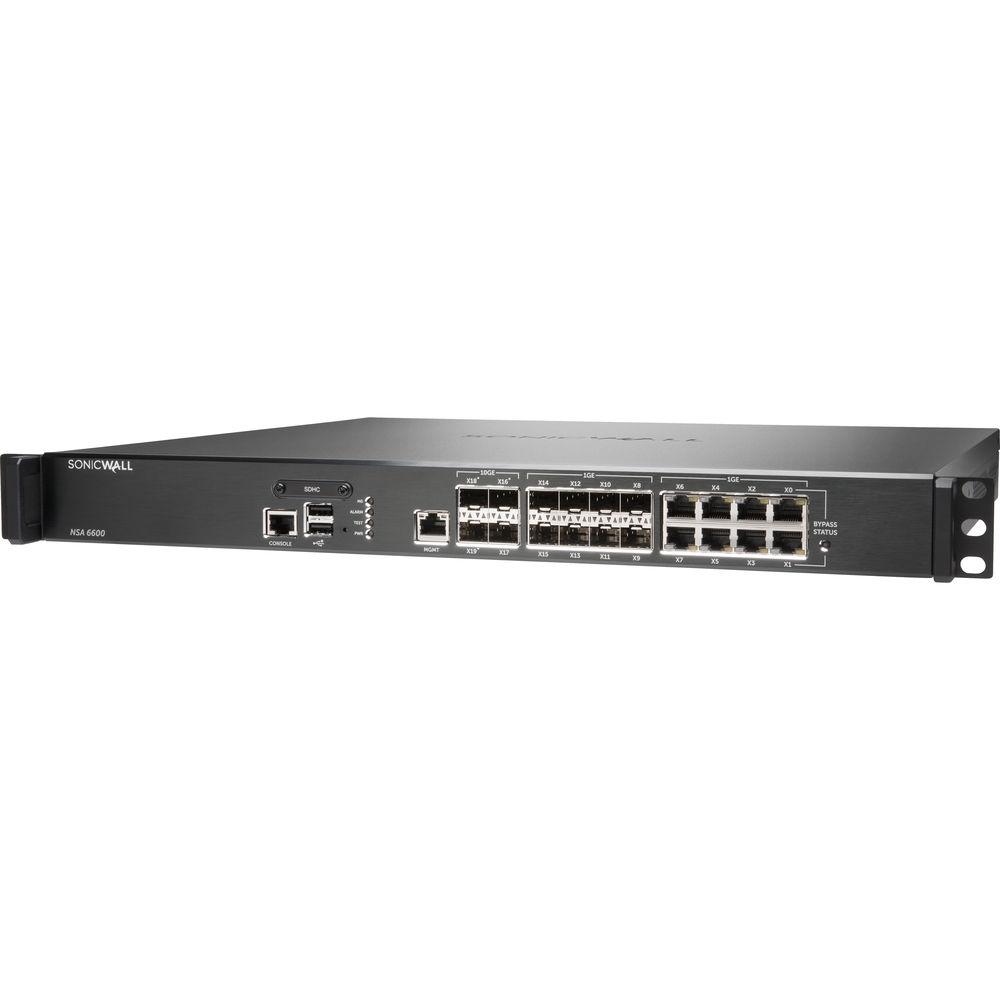

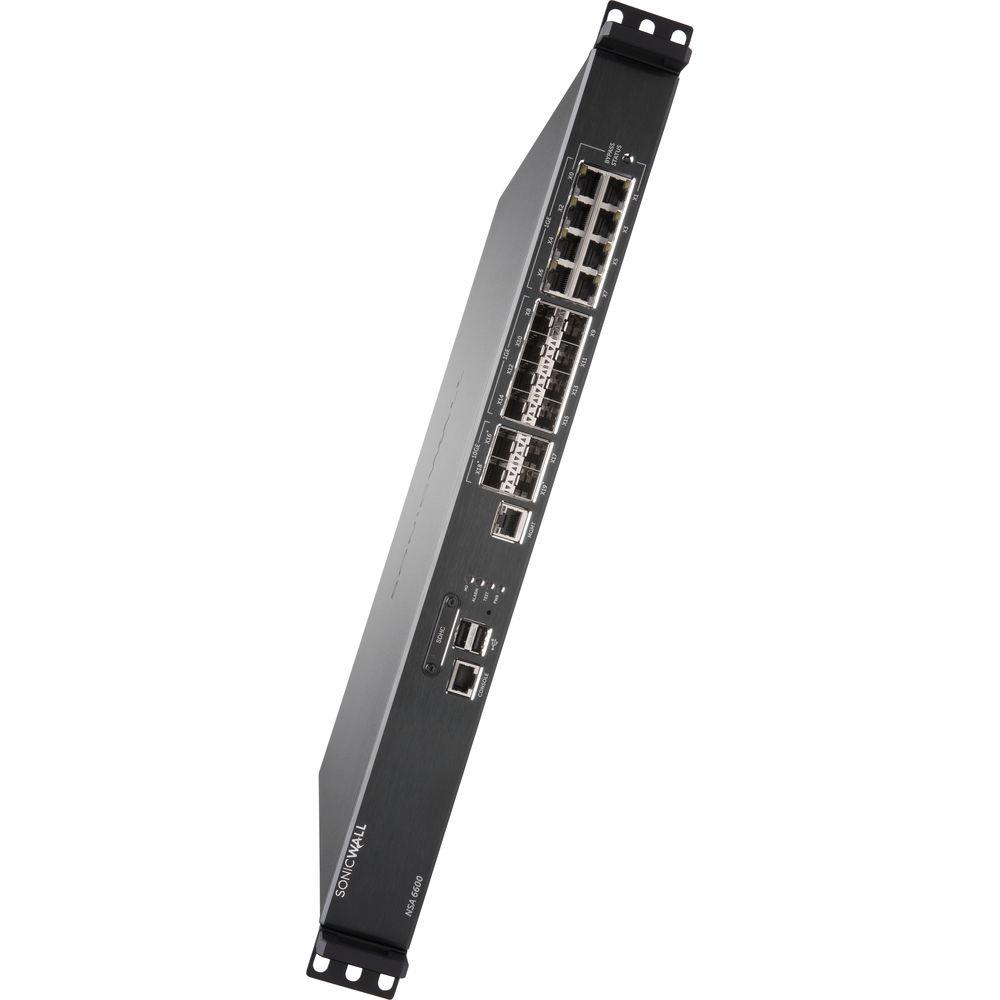

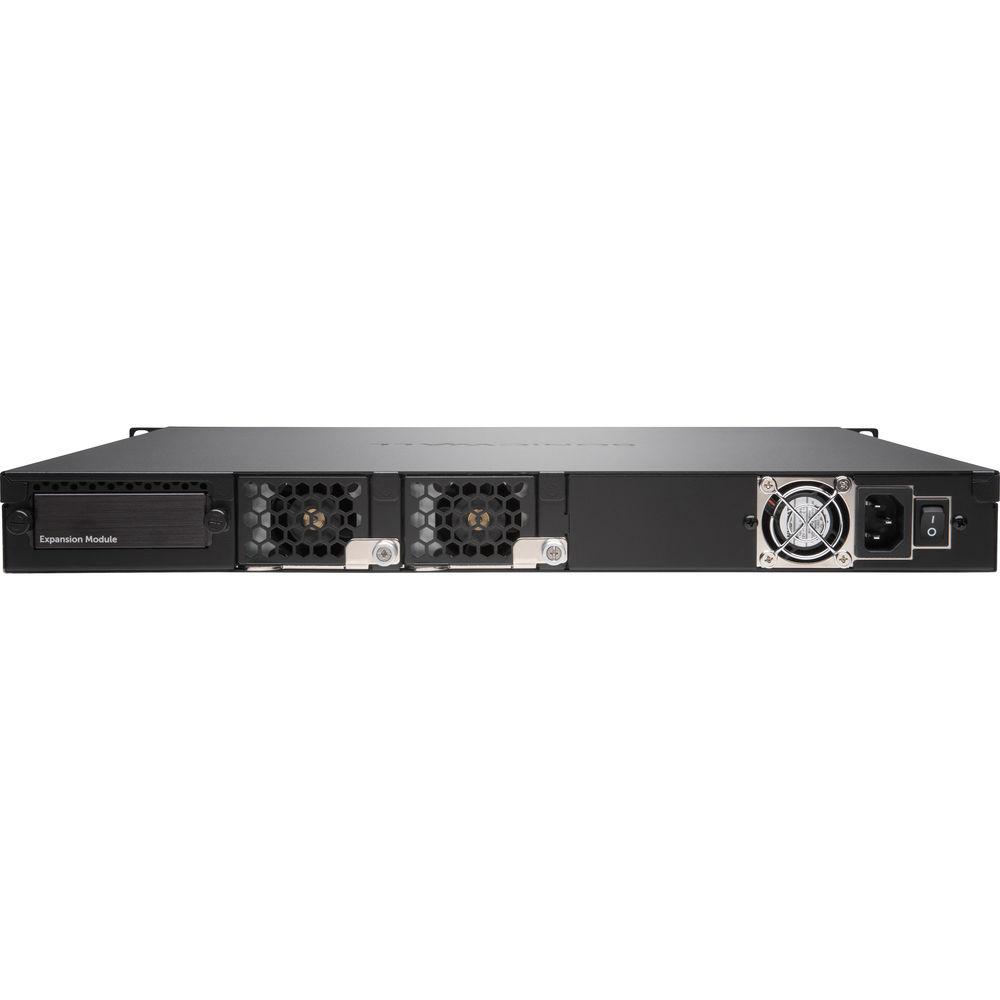

User Manual for SonicWALL Network Security Appliance 6600 Firewall Only Click to enlarge the picture
Contents of the user manual for the SonicWALL Network Security Appliance 6600 Firewall
- Product category: Firewalls & Security Devices SonicWALL
- Brand: SonicWALL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SonicWALL Firewalls & Security Devices
 |
User manual for the SonicWALL Network Security Appliance 6600 Firewall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SonicWALL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SonicWALL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SonicWALL product will considerably shorten its lifespan!
|
Product description Provided by third party: The SonicWall Network Security Appliance (NSA) series combines the patented SonicWall Reassembly Free Deep Packet Inspection (RFDPI) engine with a powerful and massively scalable multi-core architecture to deliver intrusion prevention, gateway anti-virus, gateway anti-spyware, and application intelligence and control for businesses of all sizes. By integrating automated and dynamic security capabilities into a single platform, the NSA series provides comprehensive next-generation firewall protection without compromising performance.
Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.
- Key Features
-
- Next-generation firewall security
- Multi-core architecture
- Deep packet inspection technology
- Lowered complexity and cost
- Next-generation firewall security
- A suite of tools, including intrusion prevention, gateway anti-virus, and anti-spyware plus application intelligence and control, offer granular control through application blocking, bandwidth management and more. Additional security and connectivity capabilities such as IPSec VPN, SSL VPN, content filtering, anti-spam and enforced client anti-virus make the NSA series a comprehensive and powerful all-in-one security solution.
- Multi-core architecture
- Single-core and ASIC processors may have been sufficient for the design of traditional stateful firewalls. But NSA series appliances go above and beyond, with a multi-core design to help ensure that the deep packet inspection provided by the SonicWall Next-Generation Firewall can scale with your expanding organization. As many as eight cores spread the network load evenly and protect against extreme performance degradation often present in other technologies when exposed to heavy traffic conditions and malicious content.
- Deep packet inspection technology
- Proprietary SonicWall RFDPI technology offers extremely high scalability and performance suitable for even the most demanding environments. RFDPI scans traffic on every port, on every protocol and in any direction to provide ultimate visibility and control. The unique design of the RFDPI engine allows it to inspect every byte of a connection - and up to hundreds of thousands of simultaneous connections - in order to categorize application traffic and protect against internal and external threats at both the application and network layer.
- Lowered complexity and cost
- Along with superior power efficiency, SonicWall NSA series appliances lower the total cost of ownership by reducing complexity and the time necessary to configure, deploy and maintain security solutions. An intuitive GUI and powerful set-up wizards make it easy to quickly set up and fine-tune network policies, application rules, VPN connections and more.
Table of Contents
|
Upload User Manual
Have you got an user manual for the SonicWALL Network Security Appliance 6600 Firewall Only in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonicWALL Appliance 6600 Specs | | | Device Type | Security appliance | | Height (Rack Units) | 1U | | Width | 17 in | | Depth | 19.1 in | | Height | 1.8 in | | Weight | 14.93 lbs | | | | Form Factor | External | | Connectivity Technology | Wired | | Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet | | Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, PPPoE, DHCP | | Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) | | Remote Management Protocol | SNMP 2, SNMP 3, CLI | | Performance | Firewall throughput: 12 Gbps
Full Deep Packet Inspection (DPI) throughput: 3 Gbps
Application throughput: 4.5 Gbps
IPS throughput: 4.5 Gbps
Anti-malware throughput: 3 Gbps
Firewall throughput (IMIX): 3.5 Gbps
SSL throughput: 1.3 Gbps
VPN throughput: 5 Gbps | | Capacity | New sessions per second: 90000
Connection / user qty: 1000000
DPI connections: 600000
Maximum number of access points: 96
VPN tunnels (site-to-site): 6000
IPSec VPN connections: 2000
SSL VPN users: 2
Virtual interfaces (VLANs): 512 | | Features | NAT support, VPN support, load balancing, DoS attack prevention, antivirus analysis, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-spam protection, anti-malware protection, Quality of Service (QoS), DHCP server, bandwidth control, hot swappable dual fans, Link Aggregation Control Protocol (LACP), NetFlow, IPFIX | | Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES | | Authentication Method | RADIUS, internal user database, Active Directory, XAUTH authentication | | Compliant Standards | IEEE 802.1p | | | | VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 | | IP Telephony Features | VoIP gatekeeper support, VoIP outbound bandwidth management | | | | Interfaces | 4 x 10GBase-X - SFP+
8 x 1000Base-X - SFP (mini-GBIC)
8 x 1000Base-T - RJ-45
2 x USB - Type A
1 x 1000Base-T (management) - RJ-45
1 x management - RJ-45 | | | | Compliant Standards | FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI, ICSA Firewall certified, cUL, NOM, ICSA Antivirus, CB, RoHS, FIPS 140-2, KCC, WEEE, ANATEL, VPNC certified | | | | Power Device | Internal power supply | | Installed Qty | 1 | | Max Supported Qty | 1 | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 113.1 Watt | | Power Provided | 250 Watt | | | | Min Operating Temperature | 32
