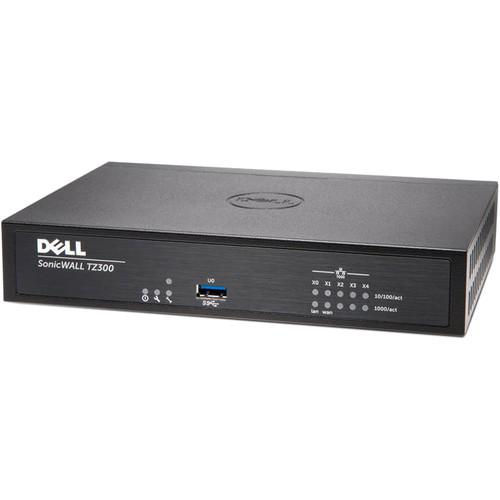

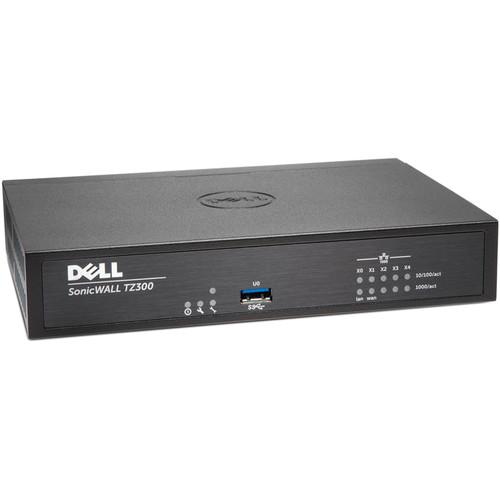

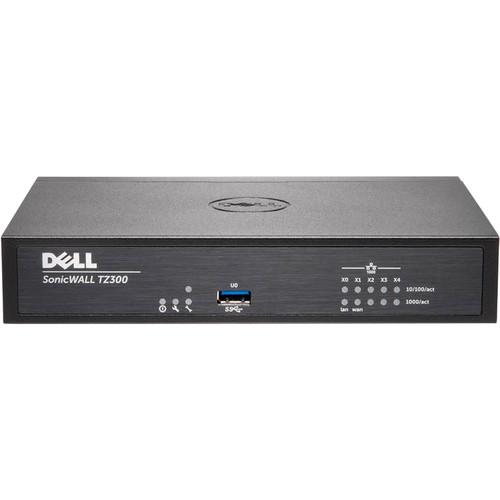

User Manual for SonicWALL TZ300 Secure Upgrade Plus Click to enlarge the picture
Contents of the user manual for the SonicWALL TZ300 Secure Upgrade Plus
- Product category: Firewalls & Security Devices SonicWALL
- Brand: SonicWALL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SonicWALL Firewalls & Security Devices
 |
User manual for the SonicWALL TZ300 Secure Upgrade Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SonicWALL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SonicWALL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SonicWALL product will considerably shorten its lifespan!
|
Product description Provided by third party: Higher broadband demands high-speed protection. This affordable firewall lets small businesses and home offices take full advantage of high-speed broadband, without compromising the highly effective protection needed to stop cyberattacks.
- Key Features
-
- High-performance security engine
- Intrusion prevention
- Advanced IPSec and SSL VPN
- Gateway anti-virus and anti-spyware
- Streamlined GUI and advanced management
- Content/URL filtering
- Wireless network security
- High-performance security engine
- All SonicWall firewalls use patented Reassembly-Free Deep Packet Inspection to examine traffic simultaneously across all ports without introducing latency to the network, enabling businesses to realize increased productivity gains.
- Intrusion prevention
- A tightly integrated intrusion prevention engine protects against a comprehensive array of application-layer exploits that target both servers and client machines on the network.
- Advanced IPSec and SSL VPN
- Flexible connectivity options provide easy-to-use, secure, high-speed office-to-office and client-to-office remote access. With IPSec VPN, users can also connect with a SonicWall Global VPN Client.
- Gateway anti-virus and anti-spyware
- By blocking Trojans, viruses, key loggers and other malware at the gateway, SonicWall Gateway Anti-Virus and Anti-Spyware provides the first layer of defense.
- Streamlined GUI and advanced management
- Intuitive set-up wizards and a powerful web interface ease deployment, simplify configuration, and streamline management to reduce administration time and costs.
- Content/URL filtering
- Organizations and educational institutions can easily enforce their acceptable-use policies and protect against inappropriate, illegal and dangerous web content through content and URL filtering.
- Wireless network security
- The SonicPoint Series, featuring the performance and signal quality of 802.11ac, is ideal for businesses, schools, stores and branch offices looking to build a high-speed wireless network. SonicPoints integrate seamlessly with SonicWall next-generation firewalls to create a secure wireless solution that protects wireless traffic from harmful threats.
UPC: 758479005766 Table of Contents
|
Upload User Manual
Have you got an user manual for the SonicWALL TZ300 Secure Upgrade Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonicWALL 01-SSC-0576 Specs | | | Device Type | Security appliance | | Bundled Services | 3 years SonicWALL Comprehensive Gateway Security Suite | | Width | 7.5 in | | Depth | 5.3 in | | Height | 1.4 in | | Weight | 25.75 oz | | | | Processors Installed | 2 x 800 MHz | | RAM | 1 GB | | | | Form Factor | External | | Ports Qty | 5 | | Connectivity Technology | Wireless, wired | | Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | | Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP | | Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) | | Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI | | Performance | Firewall throughput: 750 Mbps
Full Deep Packet Inspection (DPI) throughput: 100 Mbps
IPS throughput: 300 Mbps
Anti-malware throughput: 100 Mbps
Firewall throughput (IMIX): 200 Mbps
SSL inspection throughput: 45 Mbps
VPN throughput: 300 Mbps
Connection rate: 5000 connections per second | | Capacity | Virtual interfaces (VLANs): 25
SSL VPN licenses: 1 (maximum 50)
VPN tunnels (site-to-site): 10
IPSec VPN clients: 1 (maximum 10)
SPI connections: 50000
DPI connections: 50000
Authenticated users (internal database): 150

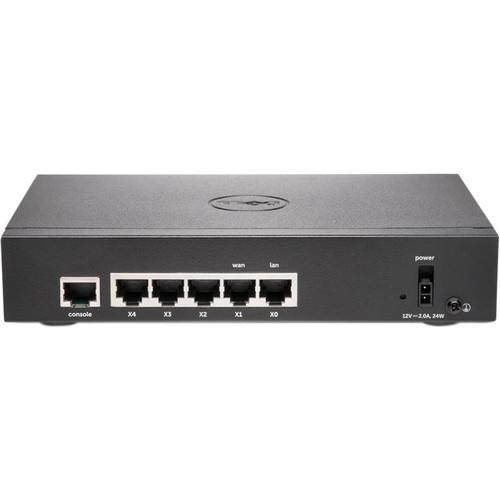

Single Sign-On (SSO) users: 500 | | Features | Firewall protection, VPN support, PAT support, VLAN support, Stateful Packet Inspection (SPI), DoS attack prevention, content filtering, port mirroring, IPv6 support, antivirus analysis, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Wi-Fi Multimedia (WMM) support, anti-spam protection, anti-malware protection, Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), DHCP server, bandwidth control, Common Access Card (CAC) reader support, anti-spyware protection, DHCP relay, 3G/4G USB Dongle Support, NetFlow, DiffServ Code Point (DSCP) support, Single Sign-On (SSO) support, anti-virus protection, keyword filtering | | Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES | | Authentication Method | RADIUS, LDAP, internal user database, Active Directory, XAUTH authentication | | | | VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 | | | | Interfaces | 4 x 1000Base-T - RJ-45
1 x 1000Base-T - RJ-45 (WAN)
1 x USB 3.0 - Type A
1 x console - RJ-45 | | | | MTBF | 28 years | | Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FIPS 140-2 Level 2, EMC, RoHS, WEEE, ANATEL, GOST-R, REACH, ICES Class A, KCC Class A, VPNC certified, LVD, IPv6 Ready, VCCI Class A, MSIP, CoC, UC APL | | Pricing Type | SonicWALL Secure Upgrade Plus Program | | | | Power Device | External power adapter | | Voltage Required | AC 120/230 V (50/60 Hz) | | Power Consumption Operational | 6.9 Watt | | Power Provided | 24 Watt | | | | OS Provided | SonicOS 6.2.x | | | | Min Operating Temperature | 32
