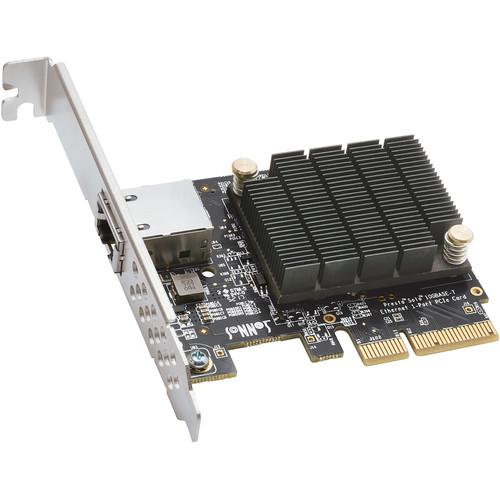

User Manual for Sonnet 1-Port Solo 10G Ethernet PCI Express 3.0 Card Click to enlarge the picture
Contents of the user manual for the Sonnet 1-Port Solo 10G Ethernet PCI
- Product category: Network Interface Cards & Adapters Sonnet
- Brand: Sonnet
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sonnet Network Interface Cards & Adapters
|
User manual for the Sonnet 1-Port Solo 10G Ethernet PCI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sonnet product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sonnet user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sonnet product will considerably shorten its lifespan!
|
Product description Add a 10 Gb/s Ethernet connection to your compatible Windows, Mac, or Linux system with the 1-Port Solo 10G Ethernet PCI Express 3.0 Card from Sonnet. Ideal for 4K post-production shared storage workgroups and other bandwidth-intensive workflows, the low-profile Solo 10GB PCIe card connects to an available PCIe 3.0 slot in your system, and it's equipped with a single RJ45 Ethernet connector. The Solo 10GB card allows for 10 Gb/s transfer rates at distances up to 328' using Cat 6A cabling, or up to 180' with Cat 6 cabling. The NBASE-T-enabled Solo also supports data transfer rates up to 5 Gb/s over Cat 5e cables. The Solo's support for Audio Video Bridging standards makes it ideal for use in pro audio and video applications that demand precise synchronization of data streams. The card comes with both low-profile and full-height brackets. - NBASE-T Support
- The Solo 10G PCIe Card supports the NBASE-T standard of up to 5 Gb/s link speeds over CAT 5e (or better) cabling at distances up to 328' when used with a multi-Gigabit switch or router. This capability allows you to deploy the same card across an organization for users supported by different Ethernet cabling infrastructures.
- Advanced Feature Support
- The Solo 10G PCIe card's high throughput performance and low host-CPU utilization are attained through functions such as flow control, 64-bit address support for systems using more than 4GB of physical memory, and stateless offloads such as TCP, UDP, and IPv4 checksum offloading. These processes are designed to boost performance during large files transfers or high I/O operations.
- Simple Setup
- Install the Solo 10G PCIe card in your computer or Thunderbolt expansion system, connect to the network switch or directly to 10 Gb/s-enabled storage, and configure the card's settings through operating system network device configuration tools.
- Includes Two Mounting Brackets
- The Solo10G PCIe Card is packaged with both full-height and low-profile mounting brackets, enabling installation of the card into most PCIe slots.
- Optimized for Thunderbolt
- You can use the Solo 10G card in a Thunderbolt 2- or Thunderbolt 3-to-PCIe expansion chassis, or in one of Sonnet's Echo Express or xMac Thunderbolt-to-PCIe card multi-slot expansion systems. The combination allows you to add a 10 Gb/s network connection to a Mac with Thunderbolt 2 or Thunderbolt 3 ports, or a Windows PC with Thunderbolt 3 ports.
- Advanced Features
- Flow control support
MSI (Message Signaled Interrupts)
RSS (Receive-Side Scaling)
Interrupt coalescing
Multicast filtering
Energy-Efficient Ethernet (IEEE 802.3az)
AVB (IEEE 802.1qav, Audio Video Bridging)
64-bit address support for systems using more than 4GB of physical memory
PCIe networking cards cannot support Wake-on-LAN - OS Compatibility
- macOS High Sierra (10.13.6) or later
Windows 10 / 8 / 7
Windows Server 2016 / 2012
Linux UPC: 732311012518 In the Box Sonnet 1-Port Solo 10G Ethernet PCI Express 3.0 Card 2 x Mounting Brackets (Full-Height and Low-Profile) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet 1-Port Solo 10G Ethernet PCI Express 3.0 Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet G10E-1-XE3 Specs | | | Networking Ports | 1 x 10Gb Ethernet (RJ45) | | Host Connection | PCIe 3.0 x4 (Full-Height/Low-Profile Slot) | | | | Supported IEEE Standards | 802.1qav, 802.3az | | Operating System Support | Linux, Windows, macOS/OS X | | Jumbo Frames Support | 16,352 Bytes | | Wake on LAN | No | | | | Certifications | RoHS, as per Manufacturer | | Cable Length | 328.08' / 100 m | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.0" |
