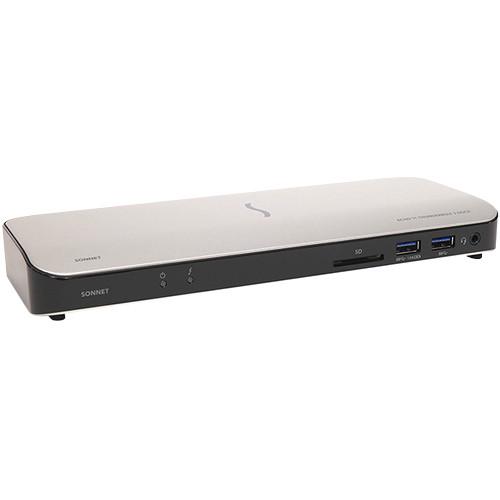

Product description With the Echo 11 Thunderbolt 3 Dock from Sonnet, you can connect multiple displays, external storage drives, wireless networks, and more all by running a single cable to your computer's Thunderbolt 3 port. This dock comes equipped with five USB 3.1 Gen 1 Type-A ports, two Thunderbolt 3 ports via USB 3.1 Gen 1 Type-C, one SD card slot, one HDMI 2.0 input, one 3.5mm combination audio jack, and one Gigabit Ethernet port.
You can drive up to two 4K displays using the DisplayPort and USB Type-C inputs. In addition to connecting a variety of displays to this dock, you can also power your USB Type-C equipped system as the Echo 11 Thunderbolt 3 Dock provides up to 87W of power. To ensure all your devices can connect to your Mac or Windows laptop, the Echo 11 supports up to 30 connections and daisy-chaining for up to six devices. Rounding out the list of connectivity options offered by this Thunderbolt 3 Dock are the 3.5mm audio jacks making it easy to plug in both headphones and a microphone for enhanced audio playback and clear audio transmission. - Thunderbolt 3
- The Echo 11 can transfer up to 40 Gb/s utilizing a Thunderbolt 3. It also supports daisy-chain connection for additional devices.

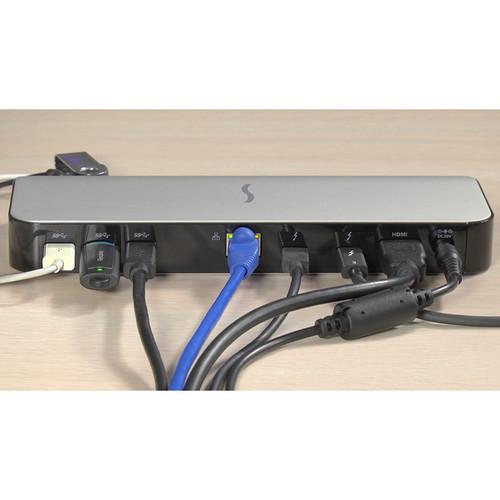

- Connects Your Peripherals with One Cable
- Connect the dock to your computer with the included Thunderbolt 3 cable, so you can access your peripherals with minimized clutter.
- Eleven Interfaces

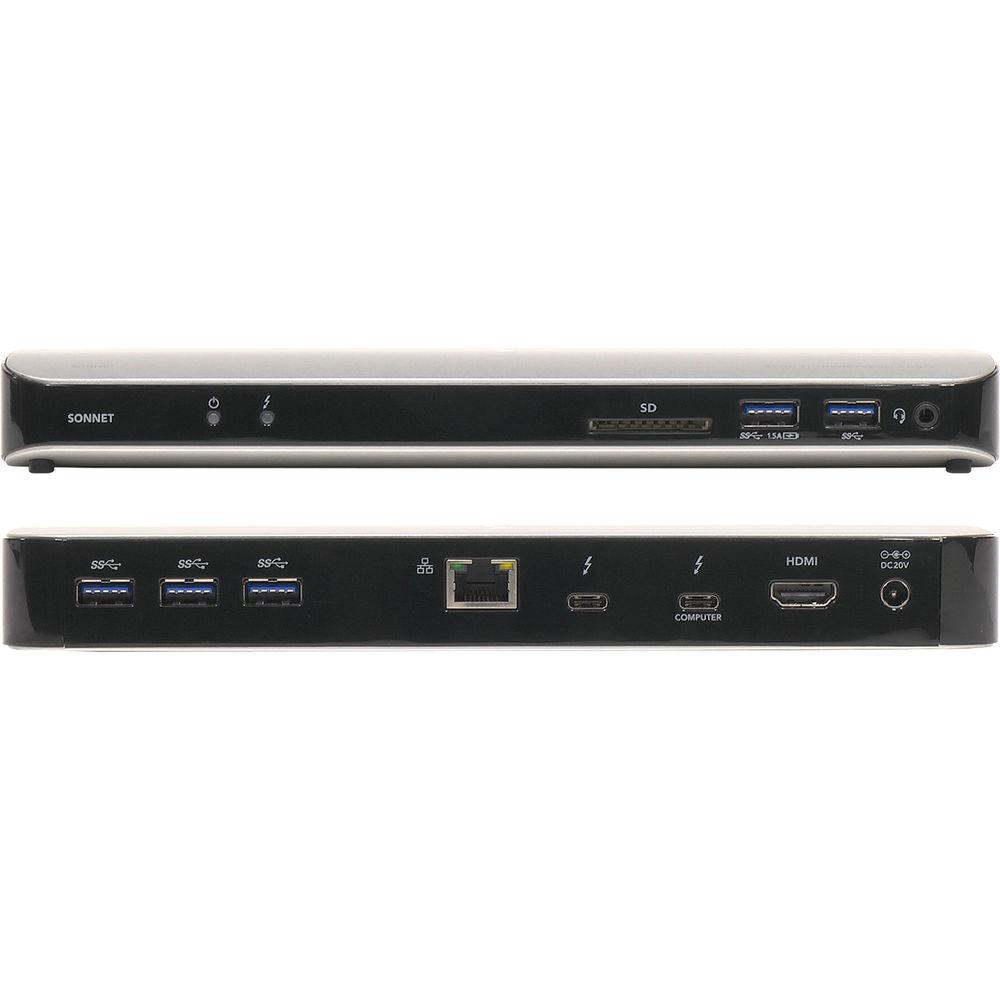

- This dock features five USB 3.1 Gen 1 Type-A ports, two Thunderbolt 3 ports, one Gigabit Ethernet jack, one input for audio, one HDMI 2.0 port, and one SD card slot.
- Computer Charging Port
- The main Thunderbolt 3 port provides power to computers that accept charging over Thunderbolt 3, which supports them at the maximum power they will accept, so you can leave your computer's power adapter packed away.

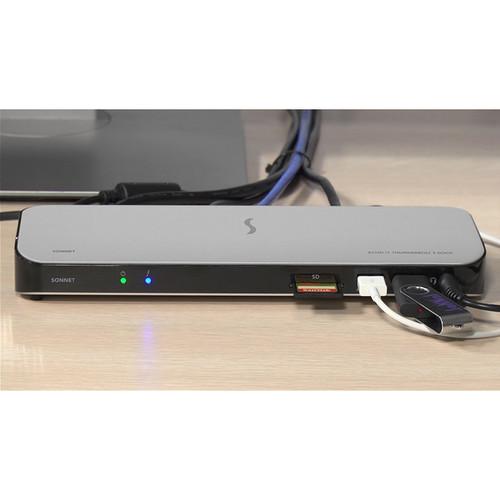

- USB Charging Port
- The front panel USB port can charge mobile devices that power via USB, even while the computer is off or disconnected.

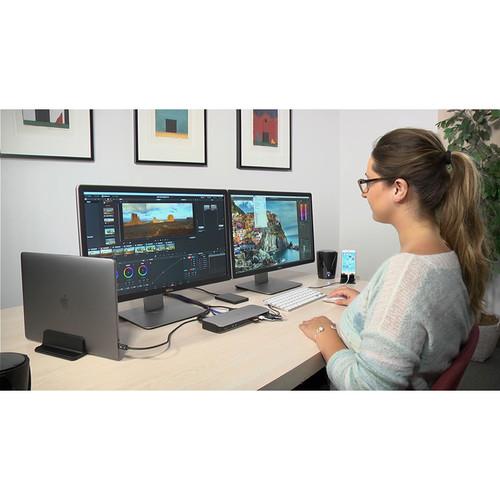

- Supports Up to Two 4K Displays
- Connect one display to the HDMI 2.0 port, another six to the second Thunderbolt 3 port, or at the end of the Thunderbolt 3 device chain.
- Wide Range of Second Display Connection Options
- Select from a variety of Thunderbolt 3 or USB Type-C to popular display interfaces such as HDMI, DVI, and more.
- macOS and Windows Compatible
- This dock works with any Mac or Windows computer that supports Thunderbolt 3. It's also backward compatible with Thunderbolt 2 and Thunderbolt Macs when used with an adapter.
UPC: 732311012389 In the Box Sonnet Echo 11 Thunderbolt 3 Dock Thunderbolt 3 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sonnet Echo 11 Thunderbolt 3 Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSonnet Echo 11 Thunderbolt 3 Dock Specs | | | USB | 5 x USB 3.1 Gen 1 Type-A
2 x USB 3.1 Gen 1 Type-C | | Thunderbolt | 2 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x HDMI 2.0 (Female)
1 x DisplayPort (Female)
1 x DVI (Female)
1 x VGA (Female) | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | 1 x SD (Unspecified Type) | | | | System Connection | 2 x Thunderbolt 3 Type-C Female | | | | Chipset | Intel i210 | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 3840 x 2160 at 60 Hz (Dual Display) | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Operating System Support | Windows, macOS/OS X | | UASP Support | No | | | | Maximum Power Consumption | 87 W | | | | Operating Temperature | 32 to 95°F / 0 to 35°C (Recommended) | | | | Lock Slot | No | | Dimensions | 9.1 x 3.4 x 1.1" / 23.11 x 8.64 x 2.79 cm | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 11.7 x 5.8 x 3.7" |
